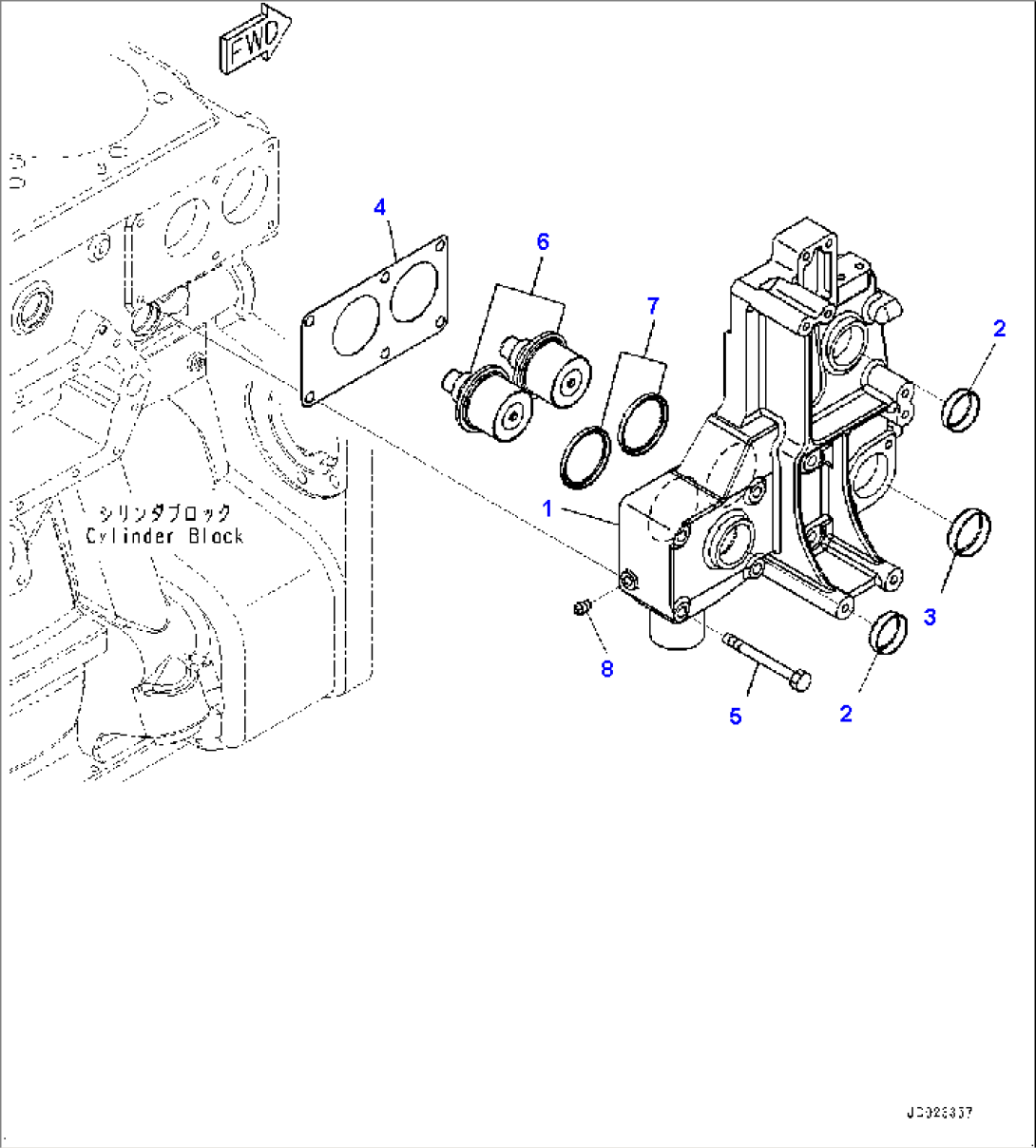

| Item | Part No. | Part Name | Qty | Serial No. |
| 6245-11-6401 | Housing Assembly | 513388- | ||
| 1 | Housing, Thermostat | 513388- | ||
| 2 | 07046-44516 | Plug | 513388- | |
| 3 | 07046-45016 | Plug | 513388- | |
| 4 | 6240-11-6470 | Gasket | 513388- | |
| 5 | 01010-81095 | Bolt | 513388- | |
| 6 | 600-421-6630 | Thermostat | 513388- | |
| 7 | 6162-13-6440 | Seal, Thermostat | 513388- | |
| 8 | 07042-A0108 | Plug | 513388- |
