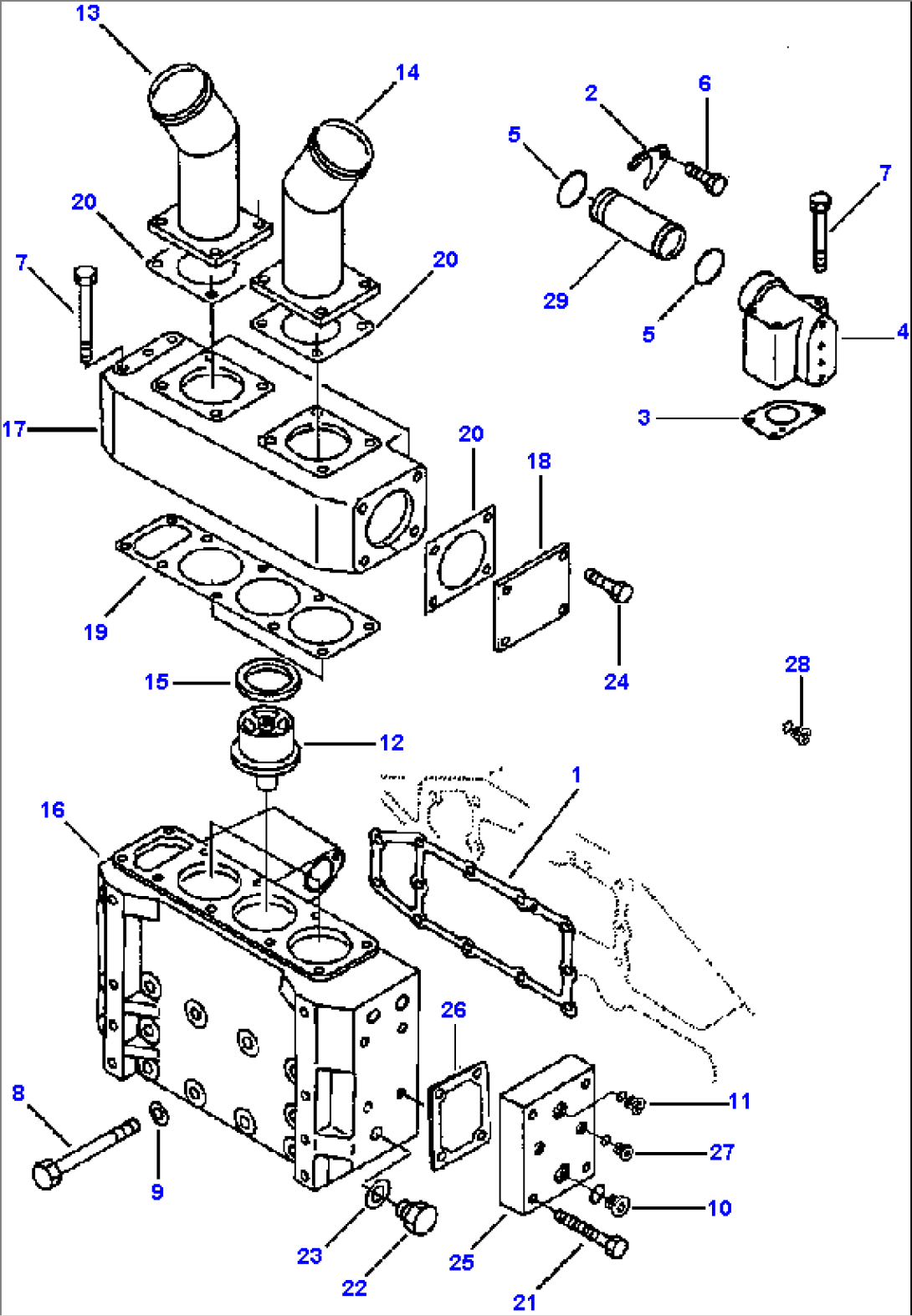

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6215-11-6810 | GASKET, HOUSING | ||
| 2 | 6215-61-6520 | RETAINER, TUBE | ||
| 3 | 6215-61-6530 | GASKET, WATER TRANSFER CONNECTION | ||
| 4 | 6215-61-7510 | CONNECTION, WATER BYPASS | ||
| 5 | 07000-G3045 | SEAL, O-RING | ||
| 6 | 6216-84-2510 | BOLT (M10x1.50x20) | ||
| 7 | 6216-14-6880 | BOLT (M10x1.50x10) | ||
| 8 | 6216-14-6810 | BOLT (M12x1.75x20) | ||
| 9 | 01643-31232 | WASHER, PLAIN (M12) | ||
| 6216-14-6120 | HOUSING, THERMOSTAT ASSEMBLY | |||
| 10 | 6216-14-6820 | PLUG, THREADED | ||
| 6216-14-6860 | SEAL, O-RING | |||
| 11 | 6216-14-6830 | PLUG, THREADED | ||
| 6216-14-6840 | SEAL, O-RING | |||
| 12 | 600-421-6630 | THERMOSTAT | ||
| 13 | 6216-14-6520 | CONNECTION, WATER OUTLET | ||
| 14 | 6216-14-6530 | CONNECTION, WATER OUTLET | ||
| 15 | 6162-13-6440 | SEAL, THERMOSTAT | ||
| 16 | 6215-61-5110 | HOUSING, THERMOSTAT | ||
| 17 | 6215-61-5170 | CASE, THERMOSTAT | ||
| 18 | 6215-11-6150 | PLATE, COVER | ||
| 19 | 6215-11-6820 | GASKET, HOUSING | ||
| 20 | 6215-11-6830 | GASKET, COVER PLATE | ||
| 21 | 6216-84-6560 | BOLT (M10x1.50x35) | ||
| 22 | 07040-11409 | PLUG, THREADED | ||
| 23 | 6216-74-6250 | WASHER, SEALING | ||
| 24 | 01011-31025 | BOLT (M10x1.50x25) | ||
| 25 | 6216-14-6870 | PLATE, COVER | ||
| 26 | 6210-21-1971 | GASKET, COVER PLATE | ||
| 27 | 6735-21-1910 | PLUG, THREADED | ||
| 6735-21-1930 | SEAL, O-RING | |||
| 28 | 6732-21-1960 | PLUG, THREADED | ||
| 6215-81-9710 | SEAL, O-RING | |||
| 29 | 6215-61-7521 | TUBE, WATER TRANSFER |
