| Item | Part No. | Part Name | Qty | Serial No. |

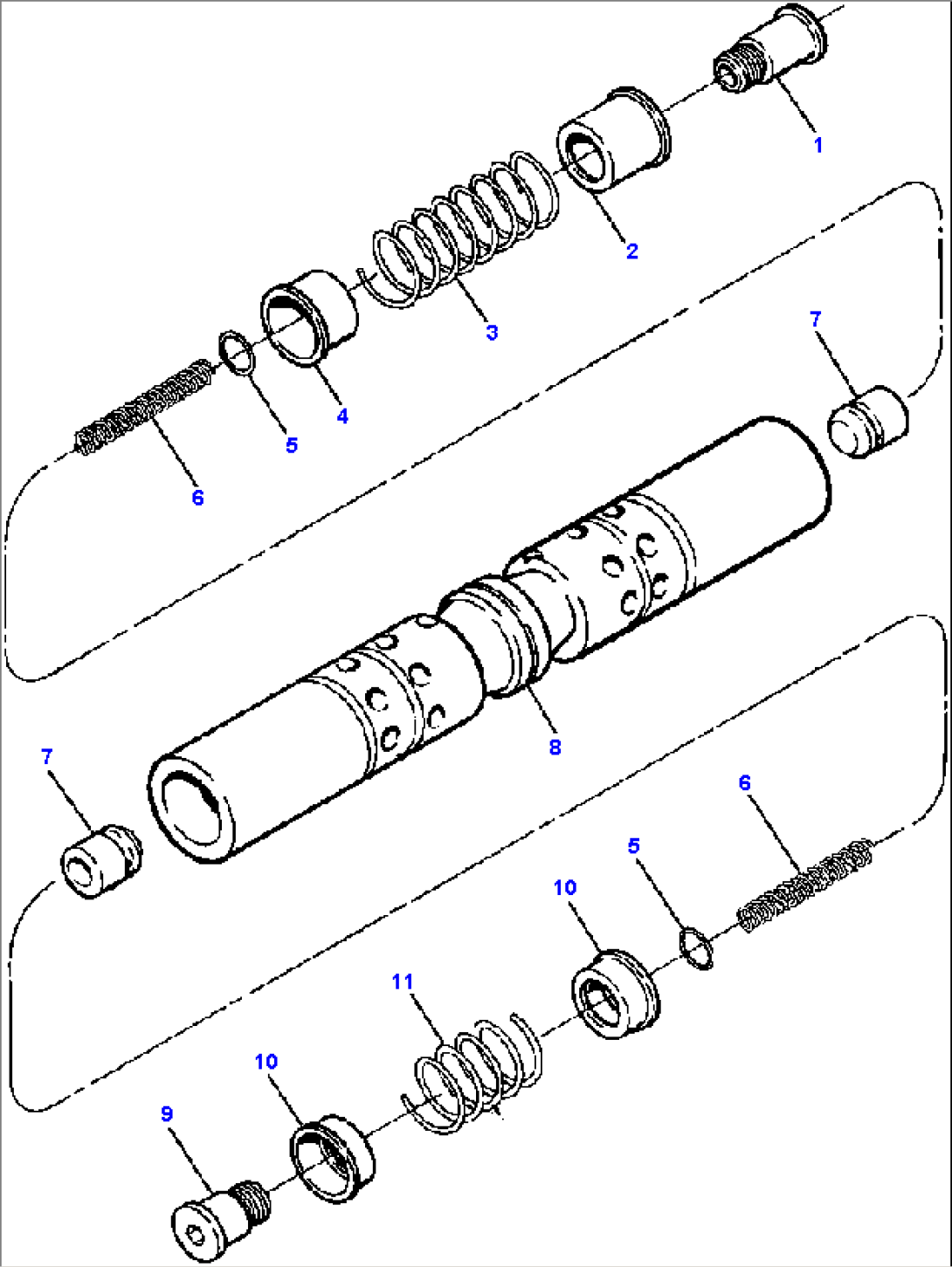

| (1223 195 H91) | SPOOL ASSEMBLY, RIPPER | |||
| 1 | 1152 082 C1 | RETAINER, SPRING | ||
| 2 | 1152 083 C1 | CAP, SPRING RETAINER | ||
| 3 | 1152 086 C1 | SPRING, RETURN | ||
| 4 | 1152 081 C1 | RETAINER, SPRING | ||
| 5 | 350 818 R1 | O-RING | ||
| 6 | 321 715 R1 | SPRING, POPPET RETURN | ||
| 7 | 627 616 C1 | POPPET, CHECK | ||
| 8 | (NSS) | SPOOL, RIPPER | ||
| 9 | 1152 084 C1 | CAP, SPRING RETAINER | ||
| 10 | 1223 430 H1 | RETAINER, SPRING | ||
| 11 | 1223 197 H1 | SPRING, RETURN | ||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
