| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1238 046 H1 | BOLT (1/4 - 28x1 1/2 INCH) | ||
| 2 | 1250 262 H1 | NUT, REGULAR HEXAGON (1/4 - 28 UNF) | ||
| 3 | 1238 098 H1 | WASHER, LOCK (1/4 INCH) | ||
| 4 | 44 742 | LEVER, THROTTLE | ||
| 5 | 1240 059 H1 | WASHER, PLAIN (1/4 INCH) |
- Главная
- Каталог запчастей
- Бульдозеры
- Td 25g s/n p072038 up
- Power
- Throttle lever
Поиск по каталогу

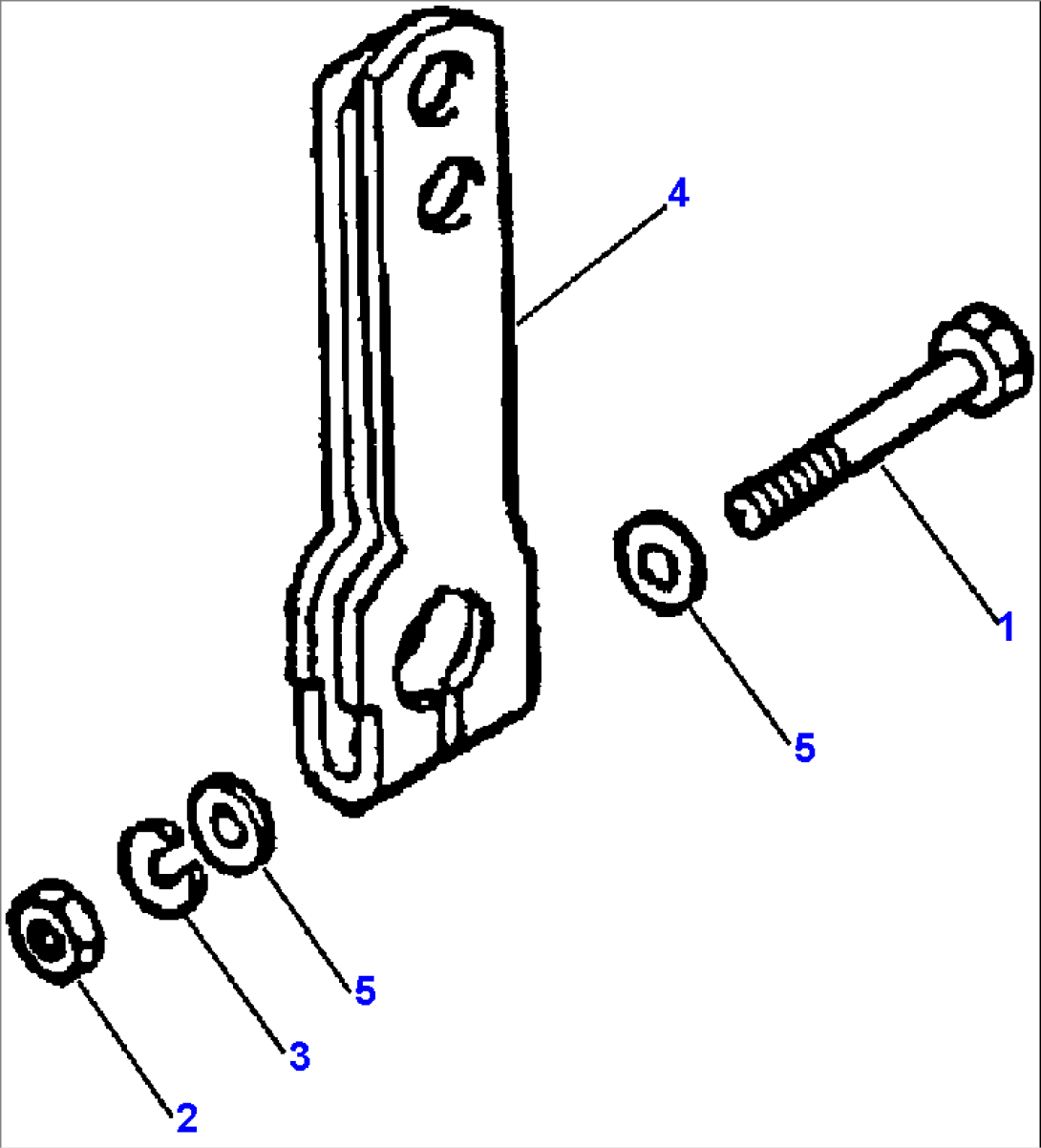

THROTTLE LEVER
