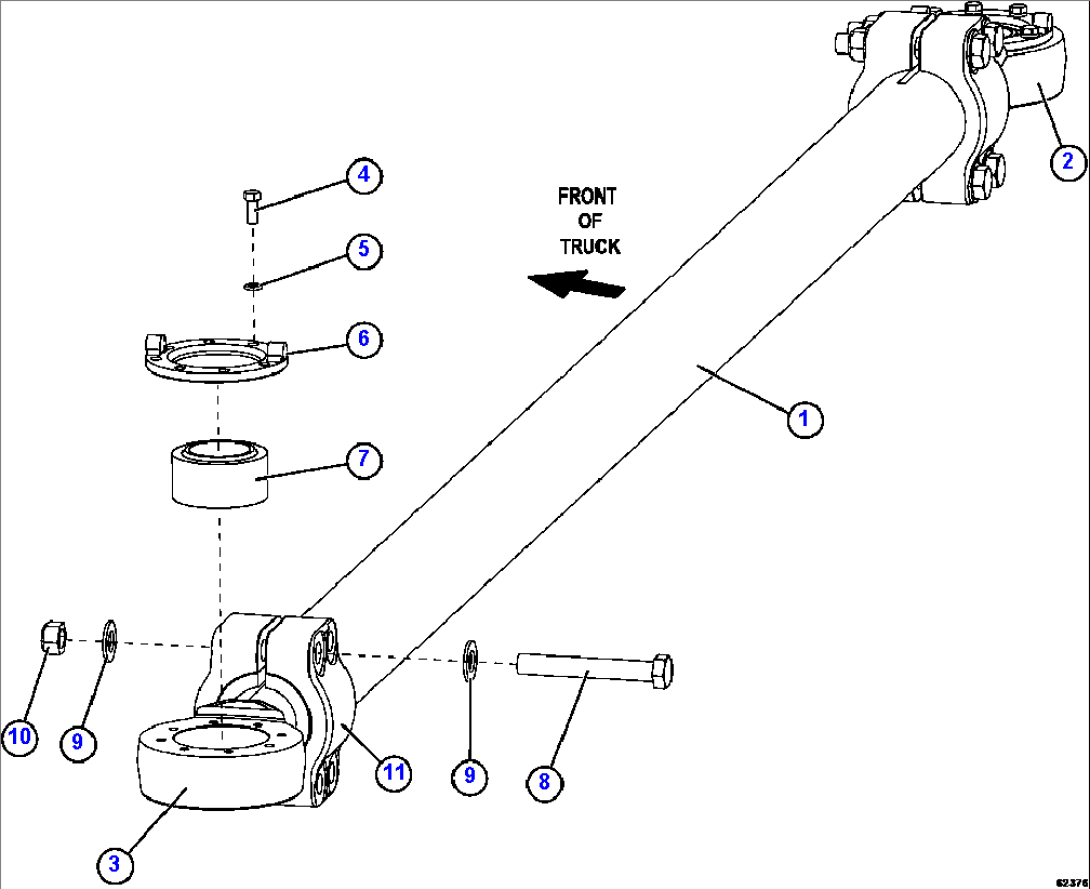

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 58F-40-00040 | TUBE, TIE ROD | ||
| 2 | 58F-40-00080 | END, ROD - R.H. | ||
| 3 | 58F-40-00070 | END, ROD - L.H. | ||
| 4 | C1613 | CAPSCREW - 1/2" - 13NC X 1 1/4" | ||
| 5 | C1540 | LOCKWASHER - 1/2" | ||
| 6 | EK1030 | RETAINER, ANTI-ROTATION (1) | ||
| 7 | PC1686 | BEARING, SPHERICAL (1) | ||
| 8 | VN9202 | CAPSCREW - 1" - 8NC X 7" | ||
| 9 | WA0364 | FLAT WASHER - 1" (HARDENED) | ||
| 10 | VH8186 | LOCKNUT - 1" - 8NC | ||
| 11 | 58F-40-00050 | CLAMP, ROD END | ||
| NS|12 | AK4323 | NOTE: (1) INCLUDED IN AK4323 STEERING CYLINDER | ||
| NS|13 | AND TIE ROD PIN KIT. |
