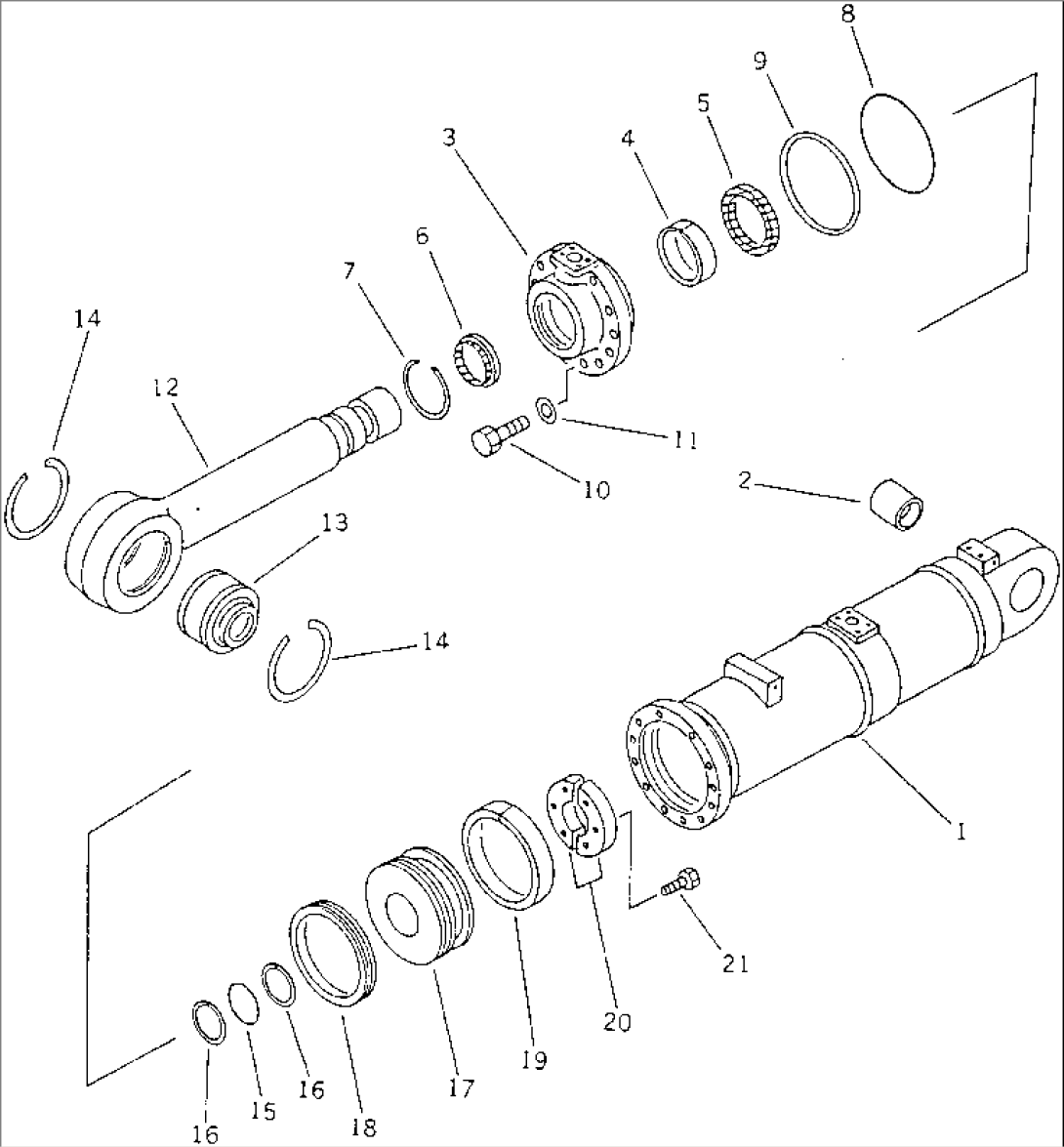

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 707-01-02040 | CYLINDER ASS'Y | 10001-10168 | |
| 1 | 707-13-18220 | CYLINDER | 10001-10168 | |
| 2 | 707-76-70310 | BUSHING | 10001-@ | |
| 3 | 707-27-17810 | CYLINDER,CYLINDER | 10001-10168 | |
| 4 | 707-52-10910 | BUSHING | 10001-10168 | |
| 5 | 707-51-90030 | PACKING,ROD | 10001-10168 | |
| 6 | 707-56-90580 | SEAL,DUST | 10001-10168 | |
| 7 | 07179-13104 | RING,SNAP | 10001-@ | |
| 8 | 07000-15170 | O-RING | 10001-10168 | |
| 9 | 07146-05172 | RING,BUCK-UP | 10001-@ | |
| 10 | 01010-81865 | BOLT | .-@ | |
| 10 | 01010-81850 | BOLT | 10001-.. | |
| 11 | 01643-31845 | WASHER | 10001-. | |
| 12 | 707-58-90091 | ROD,PISTON | 10001-@ | |
| 13 | 195-71-51263 | BUSHING | .-@ | |
| 13 | 195-71-51262 | RING | 10001-. | |
| 14 | 04071-00160 | RING | 10001-@ | |
| 15 | 07000-12070 | O-RING | 10001-10168 | |
| 16 | 707-35-52910 | RING,BUCK-UP | 10001-@ | |
| 17 | 707-36-18400 | PISTON | 10001-@ | |
| 18 | 707-44-18080 | RING,PISTON | 10001-. | |
| 19 | 07156-01822 | RING,WEAR | 10001-@ | |
| 20 | 707-40-18070 | SPACER | 10001-@ | |
| 21 | 01010-31240 | BOLT | 10001-10168 |
