| Item | Part No. | Part Name | Qty | Serial No. |

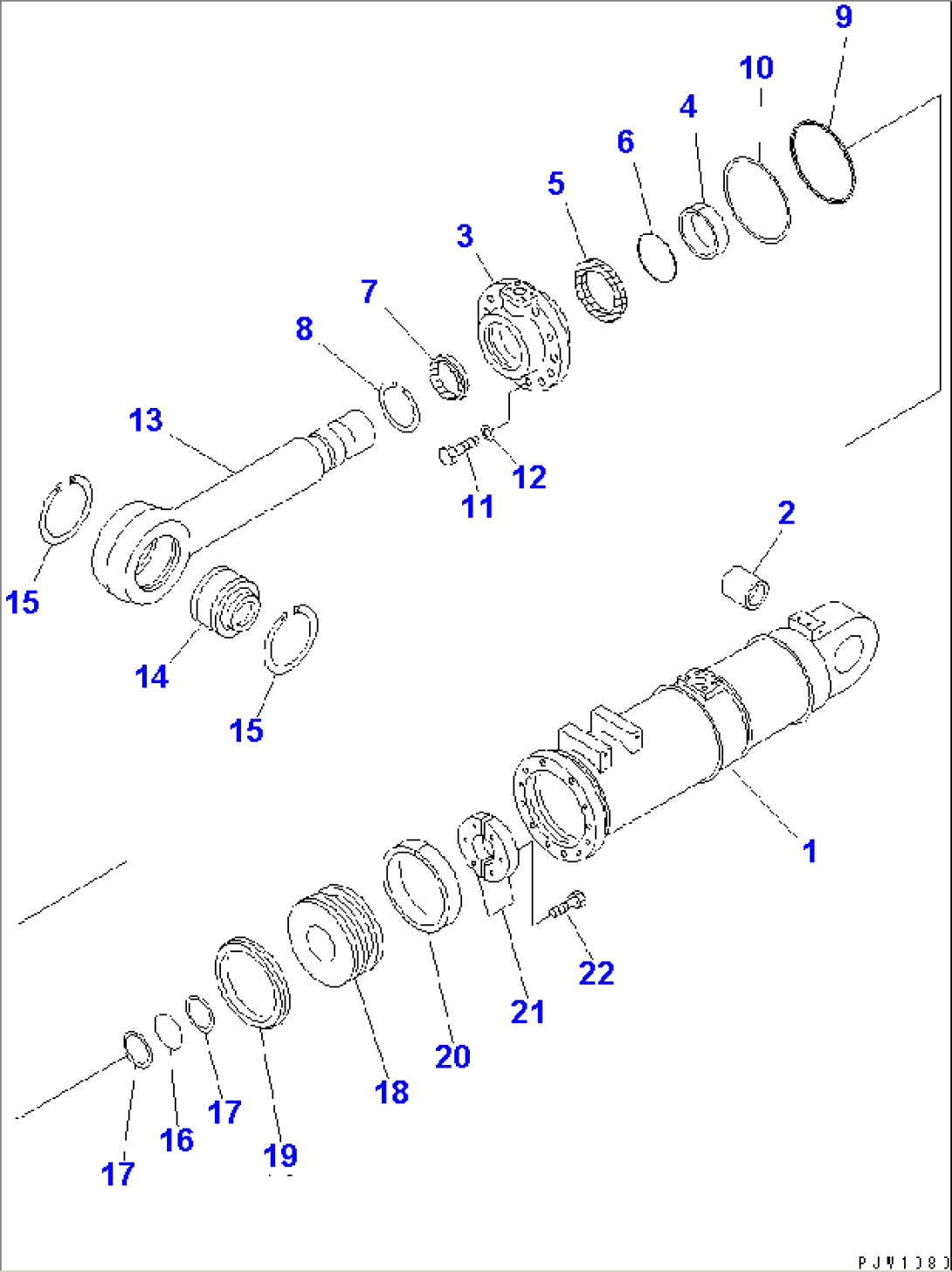

| 707-01-02760 | CYLINDER ASS'Y,TILT AND PITCH | 10162- | ||
| 1 | 707-13-18330 | CYLINDER | 10162- | |
| 2 | 707-76-70310 | BUSHING | 10001- | |
| 3 | 707-27-18150 | HEAD,CYLINDER | 10162- | |
| 4 | 707-52-90680 | BUSHING | 10162- | |
| 5 | 707-51-90030 | PACKING,ROD (KIT) | 10001- | |
| 6 | 707-51-90640 | RING,BUFFER (KIT) | 10162- | |
| 7 | 195-63-94170 | SEAL,DUST | .- | |
| 8 | 07179-13104 | RING,SNAP | 10001- | |
| 9 | 07000-15170 | O-RING (KIT) | 10001- | |
| 10 | 07146-05172 | RING,BACK-UP (KIT) | 10001- | |
| 11 | 01010-81865 | BOLT | ..- | |
| 12 | 01643-31845 | WASHER | ..- | |
| 13 | 707-58-90091 | ROD,PISTON | 10001- | |
| 14 | 195-71-51263 | BUSHING | 10001- | |
| 15 | 04071-00160 | RING,SNAP | 10001- | |
| 16 | 07000-12070 | O-RING (KIT) | 10001- | |
| 17 | 707-35-52910 | RING,BACK-UP (KIT) | 10001- | |
| 18 | 707-36-18400 | PISTON | 10001- | |
| 19 | 707-44-18180 | RING,PISTON (KIT) | .- | |
| 20 | 07156-01822 | RING,WEAR (KIT) | 10001- | |
| 21 | 707-40-18070 | SPACER | 10001- | |
| 22 | 01010-61240 | BOLT | 10162- | |
| SERVICE KIT | ||||
| KIT | 707-99-64520 | SERVICE KIT,TILT AND PITCH CYLINDER | 10162- |
