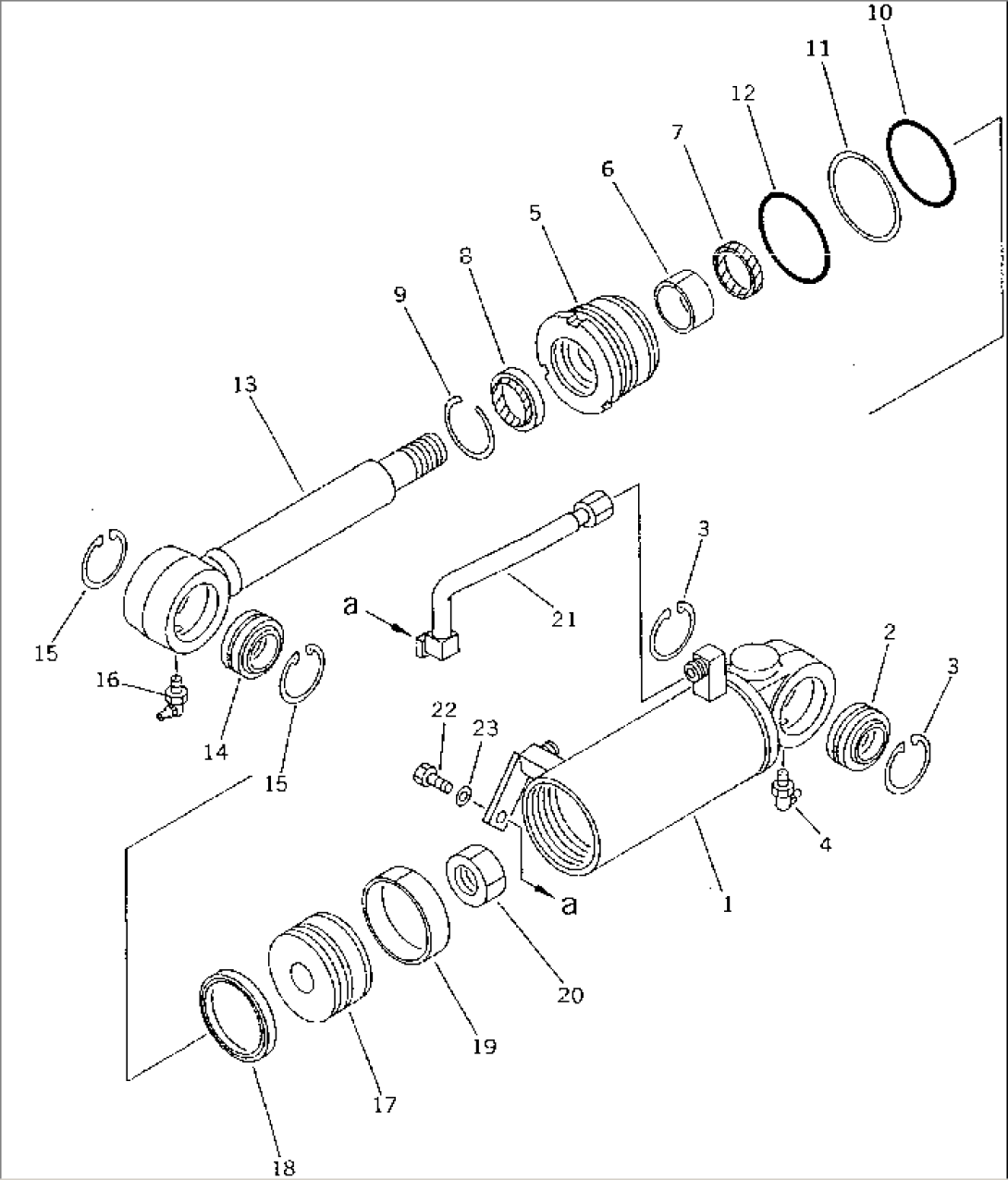

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\101-63-X2040) | CYLINDER GROUP,TILT | 75001-78603 | |
| ==================== | ||||
| 101-63-02040 | CYLINDER ASS'Y,TILT | 75001-78603 | ||
| 1 | 101-63-54341 | CYLINDER | 75001-78603 | |
| 2 | 707-76-35010 | BUSHING | 75001-@ | |
| 3 | 04065-05520 | RING,SNAP | 75001-@ | |
| 4 | 07020-00900 | FITTING,GREASE | 75001-@ | |
| 5 | 707-29-80920 | HEAD,CYLINDER | 75001-@ | |
| 6 | 07177-04025 | BUSHING | 75001-@ | |
| 7 | 707-51-40210 | PACKING,ROD | 75001-@ | |
| 8 | 198-63-75190 | SEAL,DUST | 75001-@ | |
| 9 | 07179-12052 | RING,SNAP | 75001-@ | |
| 10 | 07000-12075 | O-RING | 75001-@ | |
| 11 | 07001-02075 | RING,BACK-UP | 75001-@ | |
| 12 | 07000-02080 | O-RING | 75001-@ | |
| 13 | 101-63-54320 | ROD,PISTON | 75001-78603 | |
| 14 | 707-76-35010 | BUSHING | 75001-@ | |
| 15 | 04065-05520 | RING,SNAP | 75001-@ | |
| 16 | 07020-00900 | FITTING,GREASE | 75001-@ | |
| 17 | 707-36-80910 | PISTON | 75001-78603 | |
| 18 | 707-44-80070 | RING,PISTON | 75001-@ | |
| 19 | 07155-00820 | RING,WEAR | 75001-78603 | |
| 20 | 01580-02722 | NUT | 75001-@ | |
| 21 | 101-63-54381 | TUBE | 75001-78603 | |
| 22 | 01010-51018 | BOLT | 75001-78603 | |
| 23 | 01643-51032 | WASHER | 75001-78603 | |
| ==================== |
