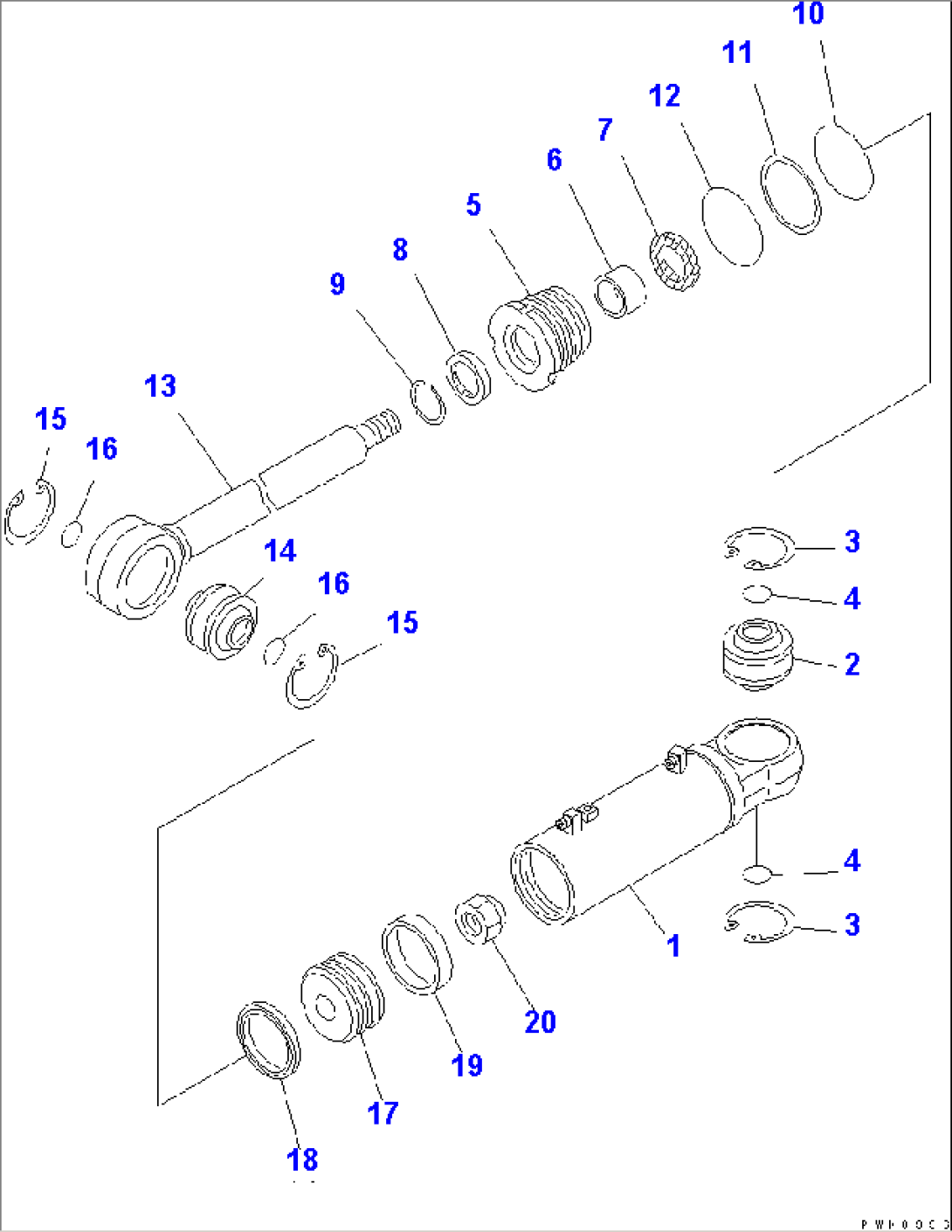

| Item | Part No. | Part Name | Qty | Serial No. |
| 134-63-01031 | CYLINDER ASS'Y | 1001-1181 | ||
| 1 | 134-63-52041 | CYLINDER | 1001-@ | |
| 2 | 07137-05008 | BUSHING | 1001-@ | |
| 3 | 04065-01104 | RING,SNAP | 1001-@ | |
| 4 | 07000-13050 | O-RING (KIT) | 1001-@ | |
| 5 | 707-29-13840 | HEAD,CYLINDER | 1001-1181 | |
| 6 | 707-52-10700 | BUSHING | 1001-1181 | |
| 7 | 707-51-70211 | PACKING,ROD (KIT) | 1001-1181 | |
| 8 | 144-63-95170 | SEAL,DUST (KIT) | 1001-1181 | |
| 9 | 07179-12084 | RING,SNAP | 1001-@ | |
| 10 | 07000-12125 | O-RING (KIT) | 1001-@ | |
| 11 | 07146-02126 | RING,BACK-UP (KIT) | 1001-@ | |
| 12 | 07000-12130 | O-RING (KIT) | 1001-@ | |
| 13 | 134-63-52021 | ROD,PISTON | 1001-@ | |
| 14 | 07137-05008 | BUSHING | 1001-@ | |
| 15 | 04065-01104 | RING,SNAP | 1001-@ | |
| 16 | 07000-13050 | O-RING (KIT) | 1001-@ | |
| 17 | 707-36-13240 | PISTON | 1001-@ | |
| 18 | 707-44-13180 | RING,PISTON (KIT) | 1001-@ | |
| 19 | 07156-01315 | RING,WEAR (KIT) | 1001-@ | |
| 20 | 07165-15252 | NUT | 1001-1181 | |
| K | 707-98-43620 | SERVICE KIT | 1001-1181 |
