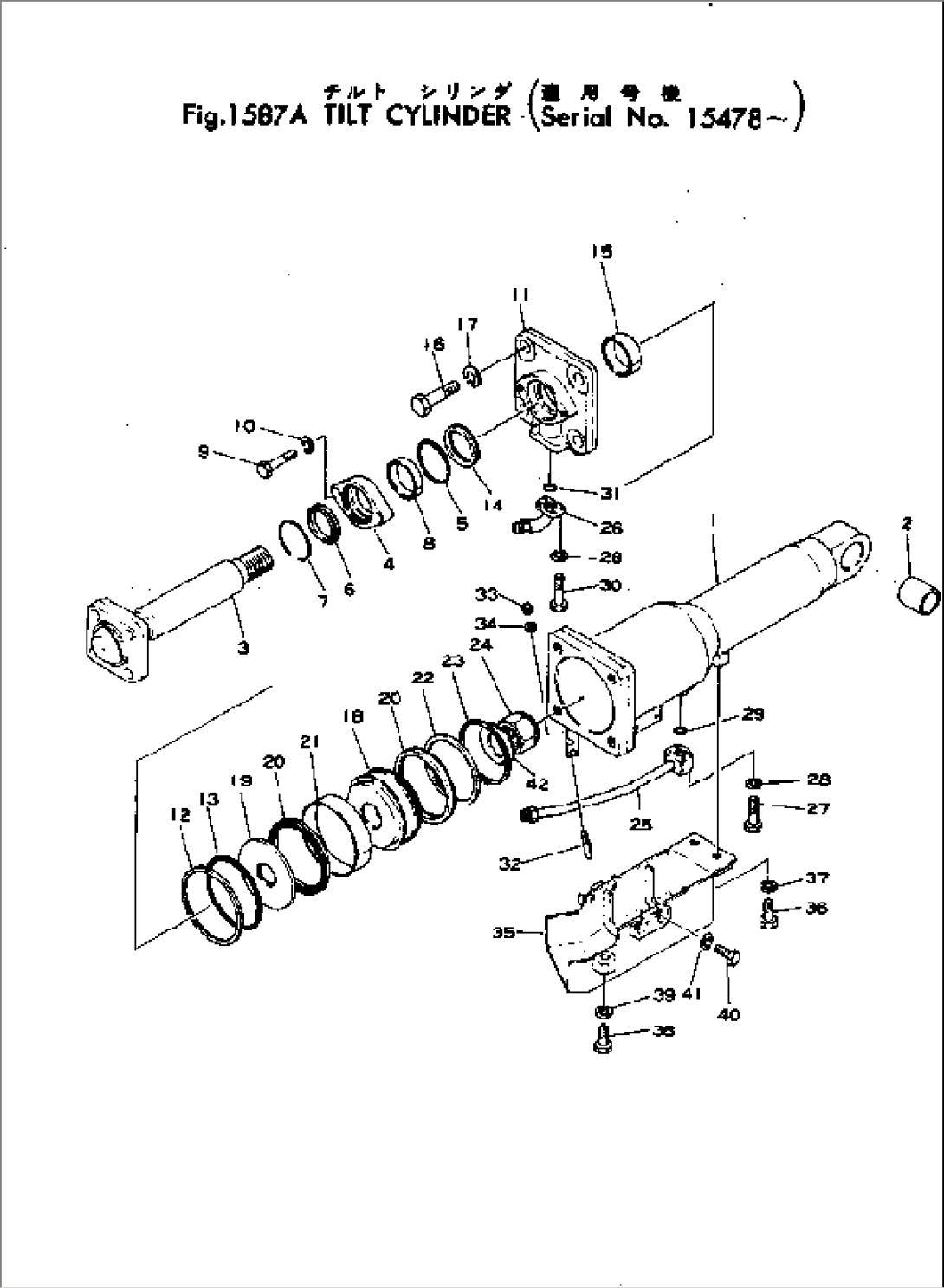

| Item | Part No. | Part Name | Qty | Serial No. |
| 154-63-52006 | TILT CYLINDER ASS'Y | 19585- | ||
| \0\154-63-52005 | TILT CYLINDER ASS'Y | 15478-19584 | ||
| (\2\154-63-52004) | TILT CYLINDER ASS'Y | (15478-19027) | ||
| 1 | 154-63-52143 | CYLINDER | 19585- | |
| 1 | \0\154-63-52142 | CYLINDER | 15478-19584 | |
| 2 | 196-63-52160 | BUSHING | 19585- | |
| 2 | \0\154-63-52780 | BUSHING | 15478-19584 | |
| 3 | 154-63-52123 | ROD | 19585- | |
| 3 | \0\154-63-52122 | ROD | 15478-19584 | |
| 4 | 195-63-52470 | GLAND | 19585- | |
| 4 | \0\07178-09050 | GLAND | 15478-19584 | |
| 5 | 07000-03110 | O-RING | 15478- | |
| 6 | 07016-00908 | SEAL | 15478- | |
| 7 | 07179-00113 | RING | 15478- | |
| 8 | 07177-09020 | BUSHING | 15478- | |
| 9 | 01010-51865 | BOLT | 19585- | |
| 9 | \0\01010-31855 | BOLT | 15478-19584 | |
| 10 | 01602-21854 | WASHER | 19585- | |
| 10 | \0\01602-01854 | WASHER | 15478-19584 | |
| 11 | 154-63-52131 | HEAD | 15478- | |
| 12 | 07146-05192 | RING | 15478- | |
| 13 | 07000-15190 | O-RING | 15478- | |
| 14 | 154-63-52173 | U-PACKING | 15478- | |
| 14 | (\2\154-63-52171) | U-PACKING | (15478-19584) | |
| 15 | 07177-09035 | BUSHING | 15478- | |
| 16 | 01010-83095 | BOLT | 19585- | |
| 16 | \0\01010-33095 | BOLT | 15478-19584 | |
| 17 | 01601-23075 | WASHER | 19585- | |
| 17 | \0\01601-03075 | WASHER | 15478-19584 | |
| 18 | 154-63-52270 | PISTON | 15478- | |
| 18 | (\2\07150-02062) | PISTON | (15478-19027) | |
| 19 | 175-63-52480 | RETAINER | 15478- | |
| 19 | (\2\07159-02008) | RETAINER | (15478-19027) | |
| 20 | 175-63-52471 | U-PACKING | 19585- | |
| 20 | \0\175-63-52470 | U-PACKING | 19028-19584 | |
| 20 | (\2\07157-02018) | U-PACKING | (15478-19027) | |
| 21 | 07155-02045 | RING | 15478- | |
| 22 | 175-63-52580 | RETAINER | 15478- | |
| 22 | (\2\07160-02017) | RETAINER | (15478-19027) | |
| 23 | 04069-01752 | RING | 15478- | |
| 24 | 154-63-52470 | NUT | 15478- | |
| 24 | (\2\07165-16264) | NUT | (15478-19027) | |
| 25 | 154-63-52282 | TUBE | 15478- | |
| 26 | 154-63-52182 | TUBE | 15478- | |
| 27 | 01010-50855 | BOLT | 19585- | |
| 27 | \0\01010-50855 | BOLT | 15478-19584 | |
| 28 | 01602-20825 | WASHER | 19585- | |
| 28 | \0\01602-00825 | WASHER | 15478-19584 | |
| 29 | 07000-13030 | O-RING | 15478- | |
| 30 | 01010-50825 | BOLT | 19585- | |
| 30 | 01010-30825 | BOLT | 15478-19584 | |
| 31 | 07000-13025 | O-RING | 15478- | |
| 32 | 07283-02244 | CLIP | 15478- | |
| 33 | 01599-01011 | NUT | 15478- | |
| 34 | 01643-21032 | WASHER | 19585- | |
| 34 | \0\01643-01032 | WASHER | 15478-19584 | |
| 35 | 154-63-52682 | COVER | 15478- | |
| 36 | 01010-51230 | BOLT | 19585- | |
| 36 | \0\01010-31230 | BOLT | 15478-19584 | |
| 37 | 01602-21236 | WASHER | 19585- | |
| 37 | \0\01602-01236 | WASHER | 15478-19584 | |
| 38 | 01010-51225 | BOLT | 19585- | |
| 38 | \0\01010-31225 | BOLT | 15478-19584 | |
| 39 | 01602-21236 | WASHER | 19585- | |
| 39 | \0\01602-01236 | WASHER | 15478-19584 | |
| 40 | 01010-31225 | BOLT | 19585- | |
| 40 | \0\01010-31225 | BOLT | 15478-19584 | |
| 41 | 01602-21236 | WASHER | 19585- | |
| 41 | \0\01602-01236 | WASHER | 15478-19584 | |
| 42 | 154-63-52370 | WASHER | 15478- |
