| Item | Part No. | Part Name | Qty | Serial No. |

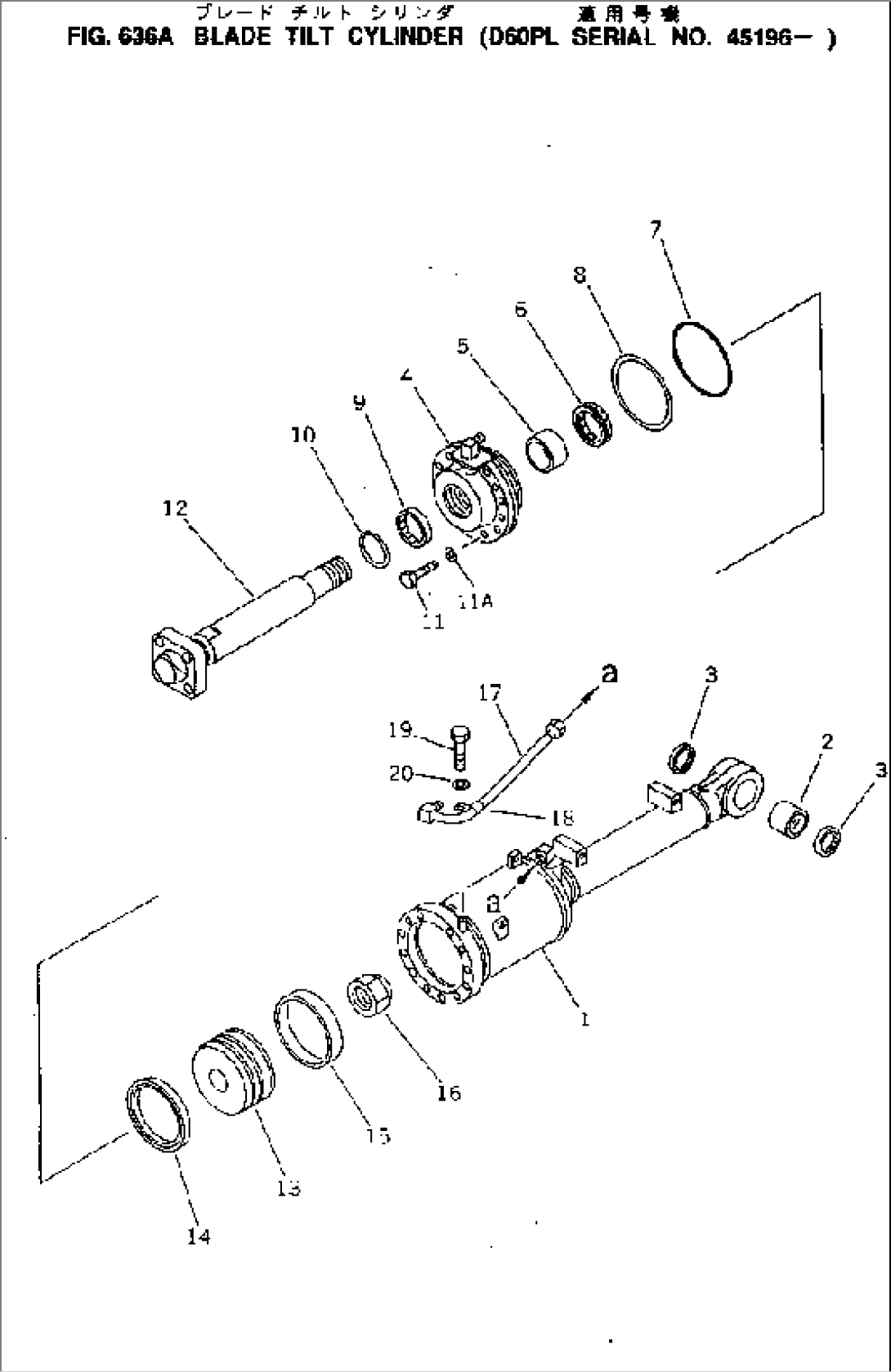

| G-1 | (\8\14F-63-X3030) | CYLINDER GROUP,TILT | 46182- | |
| ==================== | ||||
| 14F-63-03030 | CYLINDER ASS'Y,TILT | 46182- | ||
| 1 | 14F-63-52150 | CYLINDER | 46182- | |
| 2 | 07143-10505 | BUSHING | 45001- | |
| 3 | 07145-00050 | SEAL,DUST (K19) | 45001- | |
| 4 | 707-27-16740 | HEAD,CYLINDER | 46182- | |
| 5 | 707-52-10700 | BUSHING | 46182- | |
| 6 | 707-51-70211 | PACKING,ROD (K19) | 46182- | |
| 7 | 07000-15150 | O-RING (K19) | 45001- | |
| 8 | 07146-05152 | RING,BACK-UP (K19) | 45001- | |
| 9 | 07016-20708 | SEAL,DUST (K19) | 46182- | |
| 10 | 07179-12084 | RING,SNAP | 46182- | |
| 11 | 01010-81660 | BOLT | 46182- | |
| 11A | 01643-51645 | WASHER | 46182- | |
| 12 | 14F-63-52120 | ROD,PISTON | 46182- | |
| 13 | 707-36-16360 | PISTON | 46182- | |
| 14 | 707-44-16180 | RING,PISTON (K19) | 46182- | |
| 15 | 07156-01620 | RING,WEAR (K19) | 46182- | |
| 16 | 07165-15252 | NUT | 46182- | |
| 17 | 14F-63-52180 | TUBE | 46182- | |
| 18 | 04434-01508 | CLIP | 45001- | |
| 19 | 01010-50812 | BOLT | 45001- | |
| 20 | 01643-50823 | WASHER | 46182- | |
| ==================== |
