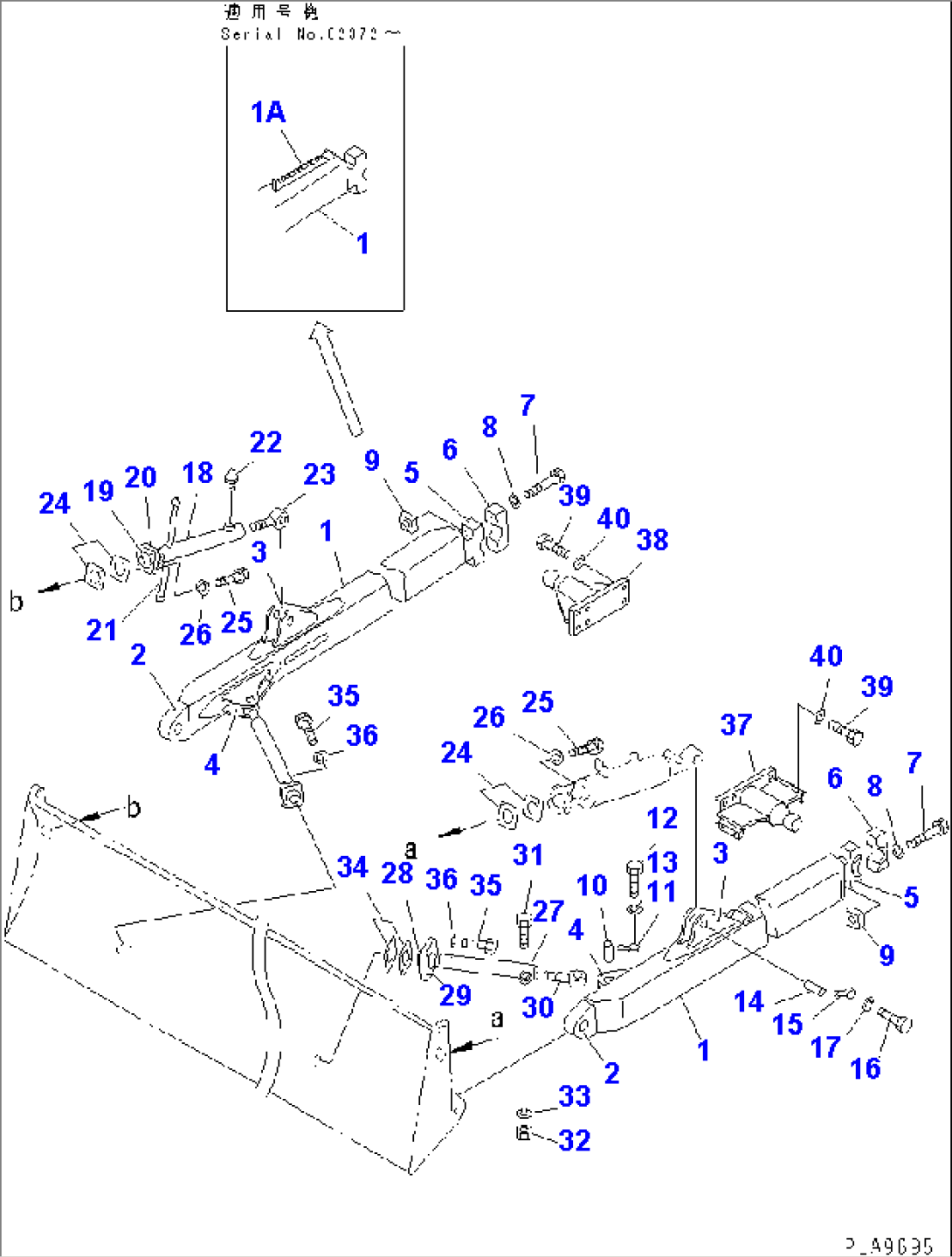

| Item | Part No. | Part Name | Qty | Serial No. |
| 10G-71-00131 | FRAME ASS'Y,L.H. | 62001- | ||
| 10G-71-00142 | FRAME ASS'Y,R.H. | 62372- | ||
| \0\10G-71-00141 | FRAME ASS'Y,R.H. | 62001-62371 | ||
| 1 | \6\ | FRAME,L.H. | 62001- | |
| \6\ | FRAME,R.H. | 62372- | ||
| \6\ | FRAME,R.H. | 62001-62371 | ||
| 1A | 14Y-71-11G50 | PLATE (WELDED) | 62372- | |
| 2 | 10G-71-21490 | JOINT (WELDED) | 62001- | |
| 3 | 10G-71-21440 | BRACKET (WELDED) | 62001- | |
| 4 | 10G-71-21450 | BRACKET (WELDED) | 62001- | |
| 5 | \6\ | BEARING,(WELDED) (KIT) | 62001- | |
| 6 | 10G-71-11350 | CAP,L.H. (KIT) | 62001- | |
| 100-93-21170 | CAP,R.H. (KIT) | 62001- | ||
| 7 | 01011-52015 | BOLT (KIT) | 62001- | |
| 8 | 01643-32060 | WASHER (KIT) | 62001- | |
| 9 | 101-904-1240 | NUT (KIT) | 62001- | |
| 10 | 10G-71-11820 | PIN | 62001- | |
| 11 | 114-72-21970 | PIN | 62001- | |
| 12 | 01010-51025 | BOLT | 62001- | |
| 13 | 01602-21030 | WASHER,SPRING | 62001- | |
| 14 | 10G-71-11820 | PIN | 62001- | |
| 15 | 114-72-21970 | PIN | 62001- | |
| 16 | 01010-51025 | BOLT | 62001- | |
| 17 | 01602-21030 | WASHER,SPRING | 62001- | |
| 18 | 10G-71-21700 | BRACE | 62001- | |
| 19 | 10G-71-22330 | JOINT,BALL (WELDED) | 62001- | |
| 20 | 10G-71-11710 | CAP | 62001- | |
| 21 | 101-71-12250 | LEVER | 62001- | |
| 22 | 07020-00000 | FITTING,GREASE | 62001- | |
| 23 | 10G-71-21730 | SCREW | 62001- | |
| 24 | 101-817-0110 | SHIM KIT | 62001- | |
| 101-817-2150 | SHIM¤ 0.5MM | 62001- | ||
| 101-817-2160 | SHIM¤ 1.0MM | 62001- | ||
| 25 | 01010-51240 | BOLT | 62001- | |
| 26 | 01602-21236 | WASHER,SPRING | 62001- | |
| 27 | 10G-71-21800 | BRACE | 62001- | |
| 28 | 10G-71-22330 | JOINT,BALL (WELDED) | 62001- | |
| 29 | 10G-71-11710 | CAP | 62001- | |
| 30 | 10G-71-21730 | SCREW | 62001- | |
| 31 | 01050-51265 | BOLT | 62001- | |
| 32 | 01582-11210 | NUT | 62001- | |
| 33 | 01602-21236 | WASHER,SPRING | 62001- | |
| 34 | 101-817-0110 | SHIM KIT | 62001- | |
| 101-817-2150 | SHIM¤ 0.5MM | 62001- | ||
| 101-817-2160 | SHIM¤ 1.0MM | 62001- | ||
| 35 | 01010-51240 | BOLT | 62001- | |
| 36 | 01602-21236 | WASHER,SPRING | 62001- | |
| 37 | 10G-A70-8262 | TRUNNION,L.H. | 62001- | |
| 38 | 10G-A70-8271 | TRUNNION,R.H. | 62001- | |
| 39 | 01010-51445 | BOLT | 62001- | |
| 40 | 01643-31445 | WASHER | 62001- | |
| SERVICE KIT | ||||
| 10G-71-00050 | PIVOT ASS'Y,L.H. | 62001- | ||
| 101-71-00072 | PIVOT ASS'Y,R.H. | 62001- | ||
| 5 | \6\ | BEARING | 62001- | |
| 6 | 10G-71-11350 | CAP,L.H. | 62001- | |
| 100-93-21170 | CAP,R.H. | 62001- | ||
| 7 | 01011-52015 | BOLT | 62001- | |
| 8 | 01643-32060 | WASHER | 62001- | |
| 9 | 101-904-1240 | NUT | 62001- |
