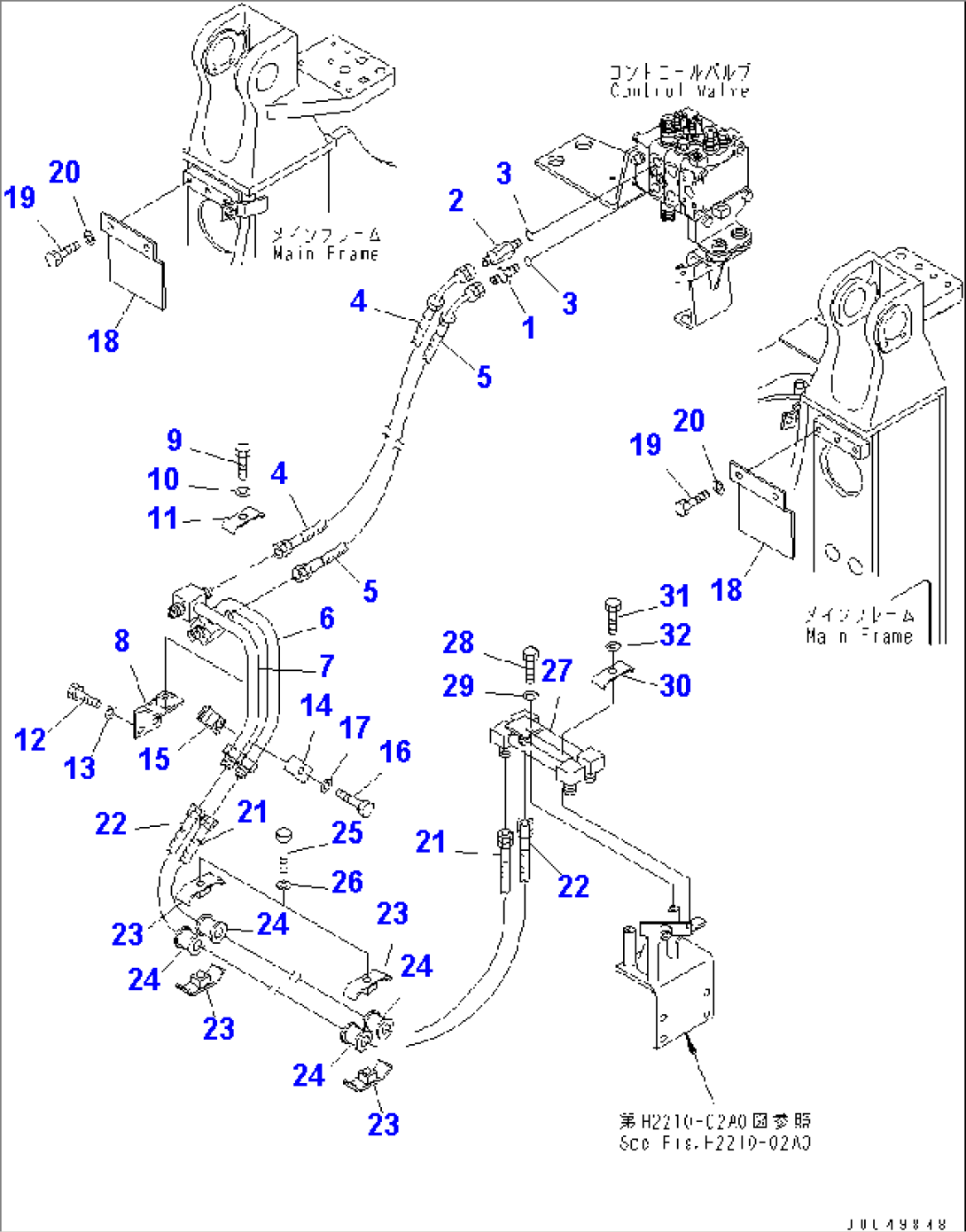

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20T-62-71690 | NIPPLE | 1001- | |
| 2 | 201-62-71870 | NIPPLE | 1001- | |
| 3 | 07002-12034 | O-RING | 1001- | |
| 4 | 134-62-67290 | HOSE, 800MM | 1001- | |
| 5 | 134-62-67290 | HOSE, 800MM | 1001- | |
| 6 | 134-62-67220 | TUBE,REAR | 1001- | |
| 7 | 134-62-67230 | TUBE,FRONT | 1001- | |
| 8 | 134-62-67190 | BRACKET | 1001- | |
| 9 | 01010-81225 | BOLT | 1005- | |
| 9 | 01010-81225 | BOLT | 1001-1004 | |
| 10 | 01643-31232 | WASHER | 1005- | |
| 10 | 01643-31232 | WASHER | 1001-1004 | |
| 11 | 134-62-67250 | BRACKET | 1001- | |
| 12 | 01010-81240 | BOLT | 1005- | |
| 12 | 01010-81240 | BOLT | 1001-1004 | |
| 13 | 01643-31232 | WASHER | 1005- | |
| 13 | 01643-31232 | WASHER | 1001-1004 | |
| 14 | 134-62-67250 | BRACKET | 1001- | |
| 15 | 134-62-67260 | BRACKET | 1001- | |
| 16 | 01010-81260 | BOLT | 1001- | |
| 17 | 01643-31232 | WASHER | 1001- | |
| 18 | 134-62-63180 | PLATE | 1001- | |
| 19 | 01010-81225 | BOLT | 1001- | |
| 20 | 01643-31232 | WASHER | 1001- | |
| 21 | 07086-00413 | HOSE | 1001- | |
| 22 | 07086-00414 | HOSE | 1001- | |
| 23 | 07094-30417 | CLAMP | 1001- | |
| 24 | 07095-00421 | CUSHION | 1001- | |
| 25 | 01010-81265 | BOLT | 1001- | |
| 26 | 01643-31232 | WASHER | 1001- | |
| 27 | 134-62-67240 | TUBE,L.H. | 1001- | |
| 28 | 01010-81025 | BOLT | 1001- | |
| 29 | 01643-31032 | WASHER | 1001- | |
| 30 | 134-62-67250 | BRACKET | 1001- | |
| 31 | 01010-81025 | BOLT | 1005- | |
| 31 | 01010-81050 | BOLT | 1001-1004 | |
| 32 | 01643-31032 | WASHER | 1001- |
