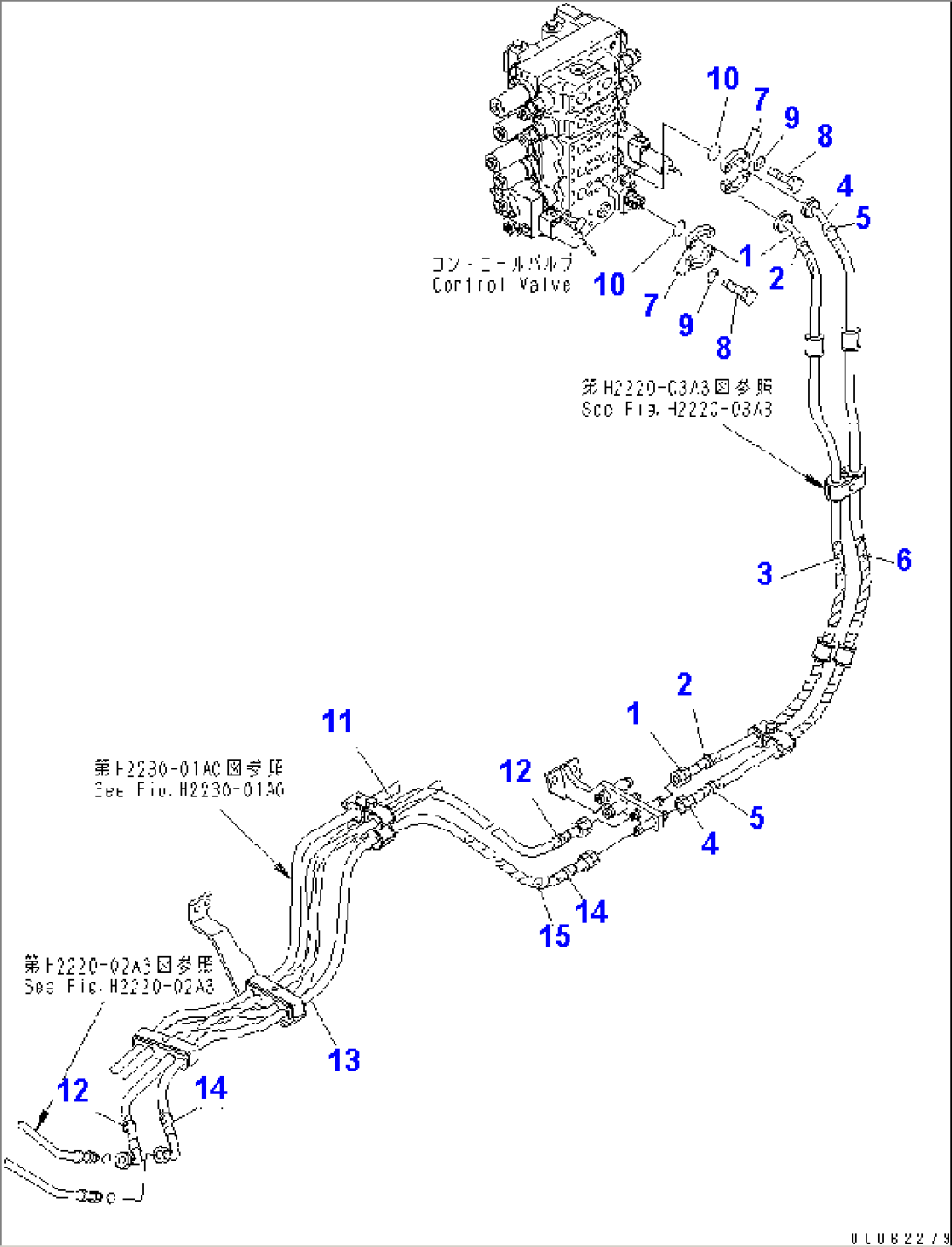

| Item | Part No. | Part Name | Qty | Serial No. |
| 14X-62-34811 | HOSE ASS'Y | 69001- | ||
| 1 | \6\ | HOSE | 69001- | |
| 2 | 20Y-62-22830 | BAND, WHITE | 69001- | |
| 3 | 08210-01805 | SPIRAL TUBE | 69001- | |
| 14X-62-34821 | HOSE ASS'Y | 69001- | ||
| 4 | \6\ | HOSE | 69001- | |
| 5 | 20Y-62-22790 | BAND, RED | 69001- | |
| 6 | 08210-01805 | SPIRAL TUBE | 69001- | |
| 7 | 07371-31049 | FLANGE | 69001- | |
| 8 | 07372-21035 | BOLT | 69001- | |
| 9 | 01643-51032 | WASHER | 69001- | |
| 10 | 07000-13032 | O-RING | 69001- | |
| 14X-62-34831 | HOSE ASS'Y | 69001- | ||
| 11 | \6\ | HOSE | 69001- | |
| 12 | 20Y-62-22790 | BAND, RED | 69001- | |
| 14X-62-34840 | HOSE ASS'Y | 69001- | ||
| 13 | \6\ | HOSE | 69001- | |
| 14 | 20Y-62-22830 | BAND, WHITE | 69001- | |
| 15 | 08210-01805 | SPIRAL TUBE | 69001- |
