| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-62-34750 | TUBE | 69001- | |
| 2 | 20Y-62-22790 | BAND, RED | 69001- | |
| 3 | 14X-62-34760 | TUBE | 69001- | |
| 4 | 20Y-62-22830 | BAND, WHITE | 69001- | |
| 5 | 02896-11009 | O-RING | 69001- | |
| 6 | 02896-11012 | O-RING | 69001- | |
| 7 | 02789-00422 | PLUG | 69001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D65wx 15e0 s/n 69001 up (ecot3)
- Hydraulic system
- Tilt line (tube) (for 6way pat dozer)
Поиск по каталогу

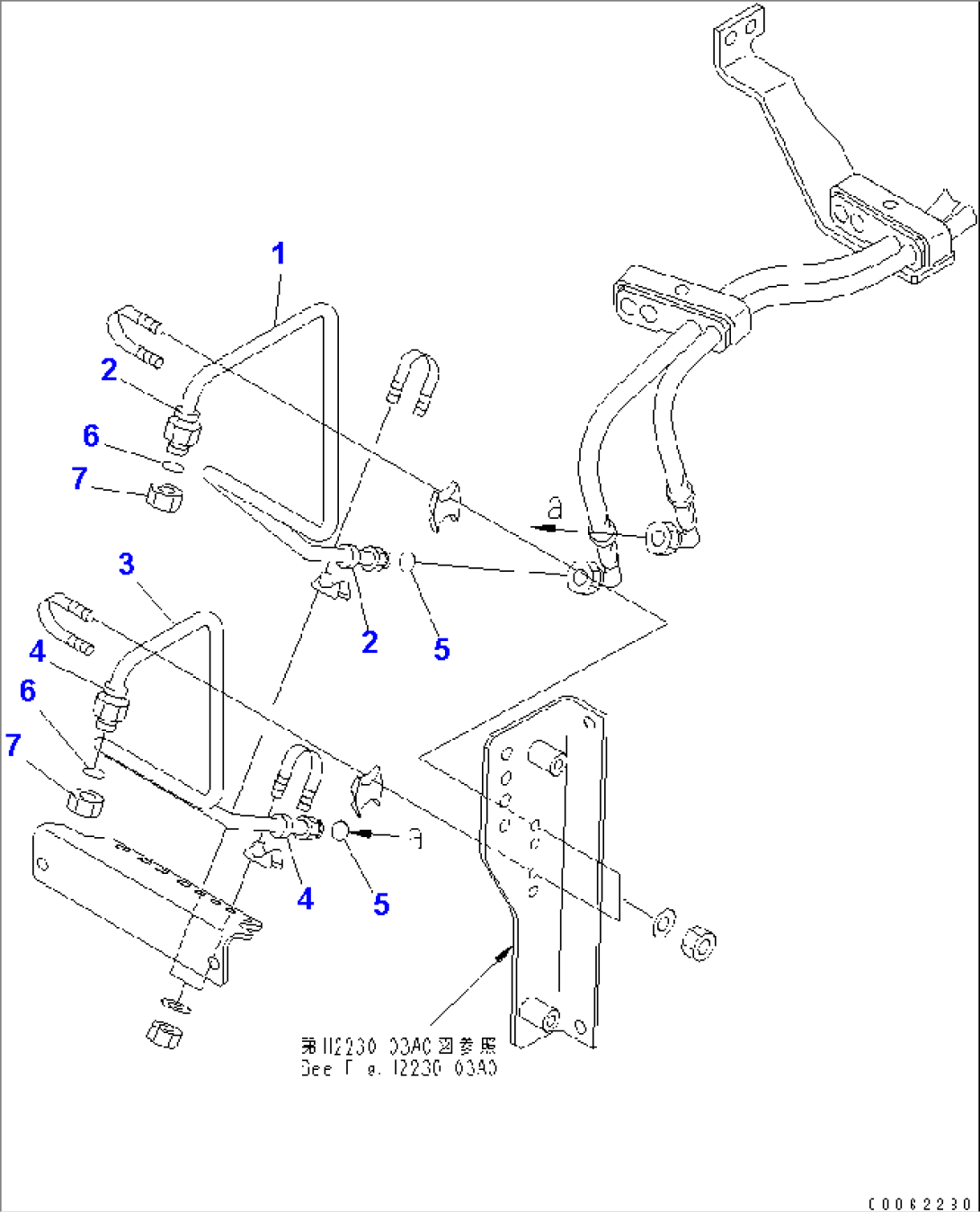

TILT LINE (TUBE) (FOR 6WAY PAT DOZER)
