| Item | Part No. | Part Name | Qty | Serial No. |

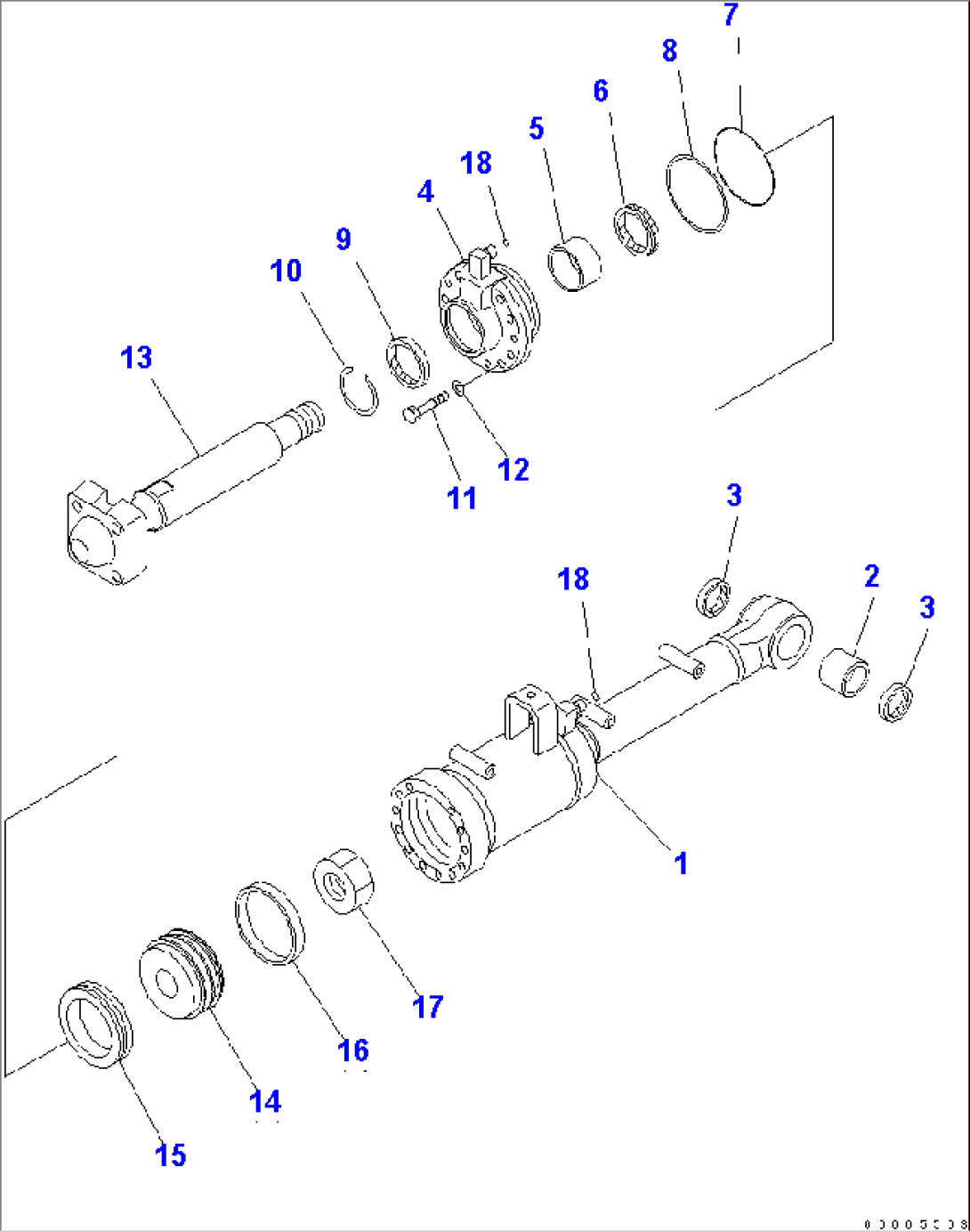

| 707-01-0C300 | TILT CYLINDER ASS'Y,(FOR TILT DOZER) | 4180-4190 | ||
| 1 | 707-13-14630 | CYLINDER | 4180-4190 | |
| 2 | 07143-10505 | BUSHING | 4180-4190 | |
| 3 | 07145-00050 | SEAL,DUST (KIT) | 4180-4190 | |
| 4 | 707-27-14850 | HEAD,CYLINDER | 4180-4190 | |
| 5 | 707-52-10701 | BUSHING | 4180-4190 | |
| 6 | 707-51-70211 | PACKING,ROD (KIT) | 4180-4190 | |
| 7 | 07000-12135 | O-RING (KIT) | 4180-4190 | |
| 8 | 07146-02136 | RING,BACK-UP (KIT) | 4180-4190 | |
| 9 | 144-63-95170 | SEAL,DUST (KIT) | 4180-4190 | |
| 10 | 07179-12084 | RING,SNAP | 4180-4190 | |
| 11 | 01010-81455 | BOLT | 4180-4190 | |
| 12 | 01643-31445 | WASHER | 4180-4190 | |
| 13 | 14Y-63-52121 | ROD,PISTON | 4180-4190 | |
| 14 | 707-36-14120 | PISTON | 4180-4190 | |
| 15 | 707-44-14180 | RING,PISTON (KIT) | 4180-4190 | |
| 16 | 07156-01417 | RING,WEAR (KIT) | 4180-4190 | |
| 17 | 707-67-52020 | NUT | 4180-4190 | |
| 18 | 02896-11009 | O-RING (KIT) | 4180-4190 | |
| 707-98-52210 | SERVICE KIT | 4180-4190 |
