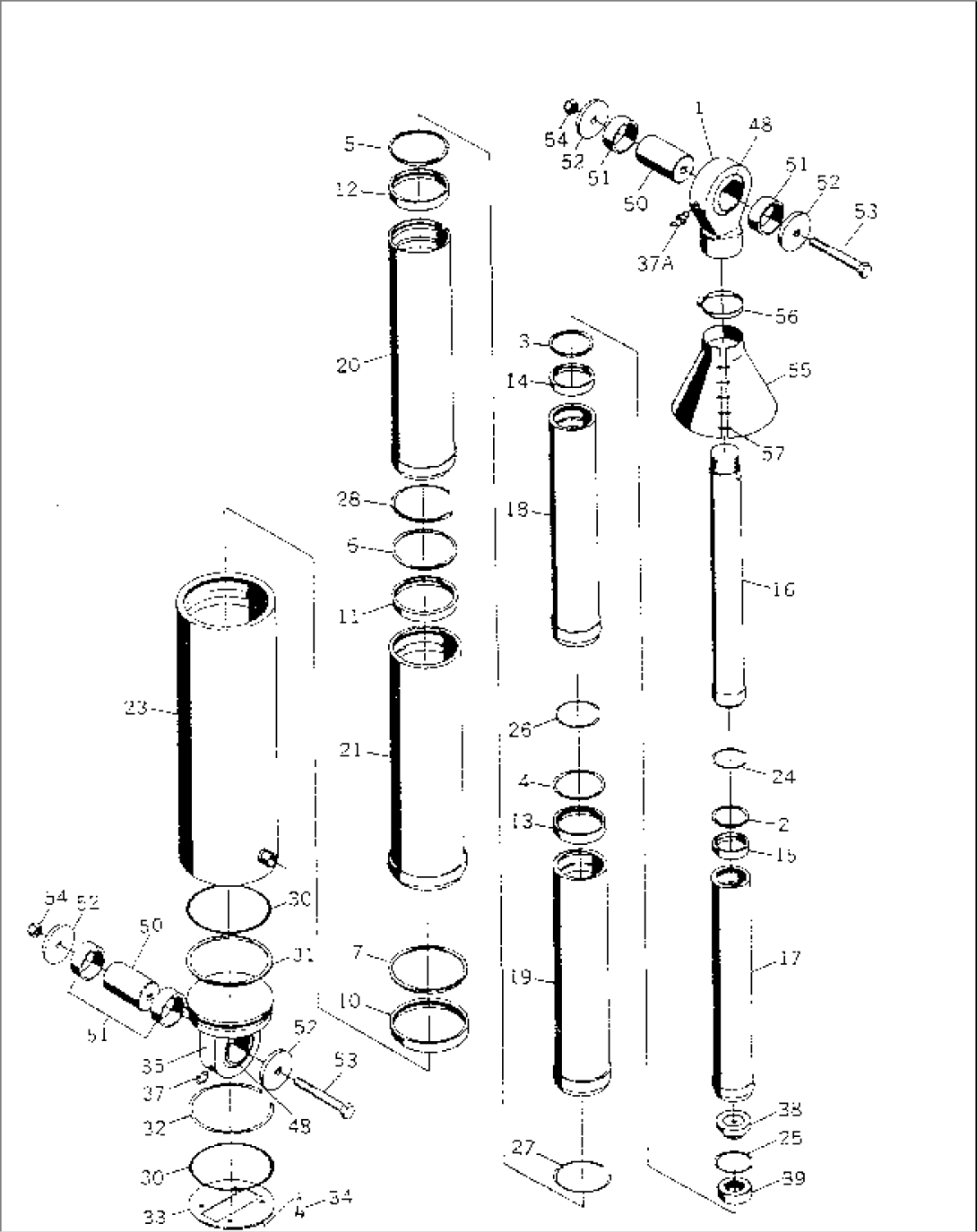

| Item | Part No. | Part Name | Qty | Serial No. |
| BW055357 | CYLINDER ASS'Y,TILT | 313001- | ||
| 1 | BW055205 | EYE,CYLINDER | 313001- | |
| 2 | \6\ | STRIPPER (KIT A) | 313001- | |
| 3 | \6\ | STRIPPER (KIT A) | 313001- | |
| 4 | \6\ | STRIPPER (KIT A) | 313001- | |
| 5 | \6\ | STRIPPER (KIT A) | 313001- | |
| 6 | \6\ | STRIPPER (KIT A) | 313001- | |
| 7 | \6\ | STRIPPER (KIT A) | 313001- | |
| 10 | \6\ | RING,SEAL (KIT A) | 313001- | |
| 11 | \6\ | RING,SEAL (KIT A) | 313001- | |
| 12 | \6\ | RING,SEAL (KIT A) | 313001- | |
| 13 | \6\ | RING,SEAL (KIT A) | 313001- | |
| 14 | \6\ | RING,SEAL (KIT A) | 313001- | |
| 15 | \6\ | RING,SEAL (KIT A) | 313001- | |
| 16 | BW055360 | ROD,PISTON | 313001- | |
| 17 | BW055211 | PISTON | 313001- | |
| 18 | BW055212 | PISTON | 313001- | |
| 19 | BW055213 | PISTON | 313001- | |
| 20 | BW055214 | PISTON | 313001- | |
| 21 | BW055215 | PISTON | 313001- | |
| 23 | BW055216 | PIPE,OUTER | 313001- | |
| 24 | \6\ | RING,SNAP (KIT B) | 313001- | |
| 25 | \6\ | RING,SNAP (KIT B) | 313001- | |
| 26 | \6\ | RING,SNAP (KIT B) | 313001- | |
| 27 | \6\ | RING,SNAP (KIT B) | 313001- | |
| 28 | BW055368 | RING,SNAP (KIT B) | 313001- | |
| 30 | BW055218 | O-RING (KIT A) | 313001- | |
| 31 | BW055219 | RING (KIT A) | 313001- | |
| 32 | BW055220 | RING,SNAP (KIT B) | 313001- | |
| 33 | BW055222 | COVER | 313001- | |
| 34 | BW055221 | SCREW | 313001- | |
| 35 | BW055223 | BOTTOM,CYLINDER | 313001- | |
| 37 | BW065101 | FITTING,GREASE | 313001- | |
| 37A | BW065102 | FITTING,GREASE | 313001- | |
| 38 | BW055341 | VALVE | 313001- | |
| 39 | BW055342 | NUT | 313001- | |
| 48 | BW055099 | BEARING | 313001- | |
| 50 | BW047041 | SPACER | 313041- | |
| 50 | BW043923 | SPACER | 313001-313040 | |
| 51 | BW058072 | RING,INNER | 313001- | |
| 52 | BW044239 | WASHER | 313001- | |
| 53 | BW060521 | BOLT | 313001- | |
| 54 | BW063042 | NUT | 313001- | |
| 55 | BW035886 | CAP,DUST | 313150- | |
| 55 | BW031235 | CAP,DUST | 313001-313149 | |
| 56 | BW065034 | CLAMP | 313001- | |
| 57 | BW066064 | CLAMP | 313001- | |
| SERVICE KIT | ||||
| KIT A | BW055361 | GASKET KIT,TILT CYLINDER | 313001- | |
| KIT B | BW055363 | RING SET,TILT CYLINDER | 313001- |
