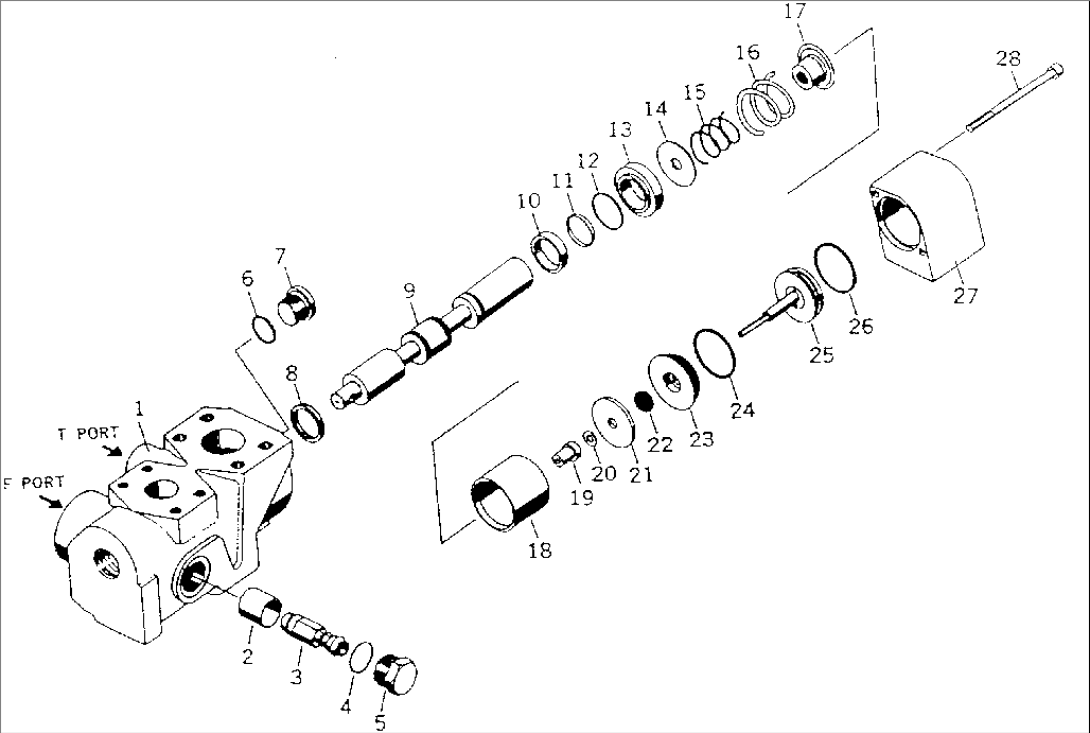

| Item | Part No. | Part Name | Qty | Serial No. |
| BW055332 | VALVE ASS'Y,TILT | 313001- | ||
| 1 | \6\ | HOUSING | 313001- | |
| 2 | \6\ | BUSHING | 313001- | |
| 3 | BW055359 | VALVE,PRESSURE | 313001- | |
| 4 | \6\ | O-RING | 313001- | |
| 5 | \6\ | PLUG | 313001- | |
| 6 | \6\ | O-RING | 313001- | |
| 7 | \6\ | PLUG | 313001- | |
| 8 | BW055562 | RING,SEAL (KIT) | 313001- | |
| 9 | \6\ | PISTON | 313001- | |
| BW055327 | AIR CYLINDER ASS'Y,TILT | 313001- | ||
| 10 | \6\ | RING,STEEL (KIT) | 313001- | |
| 11 | \6\ | RING,TEFLON (KIT) | 313001- | |
| 12 | \6\ | O-RING (KIT) | 313001- | |
| 13 | \6\ | RING,SUPPORT (KIT) | 313001- | |
| 14 | \6\ | WASHER (KIT) | 313001- | |
| 15 | \6\ | SPRING (KIT) | 313001- | |
| 16 | \6\ | SPRING (KIT) | 313001- | |
| 17 | \6\ | BUSHING (KIT) | 313001- | |
| 18 | \6\ | BARREL (KIT) | 313001- | |
| 19 | \6\ | SPACER (KIT) | 313001- | |
| 20 | \6\ | WASHER (KIT) | 313001- | |
| 21 | \6\ | WASHER (KIT) | 313001- | |
| 22 | \6\ | O-RING (KIT) | 313001- | |
| 23 | \6\ | RING,SUPPORT (KIT) | 313001- | |
| 24 | \6\ | O-RING (KIT) | 313001- | |
| 25 | \6\ | PISTON (KIT) | 313001- | |
| 26 | \6\ | O-RING (KIT) | 313001- | |
| 27 | \6\ | CAP (KIT) | 313001- | |
| 28 | \6\ | BOLT (KIT) | 313001- | |
| SERVICE KIT | ||||
| KIT | BW055586 | REPAIR KIT,TILTING VALVE | 313001- |
