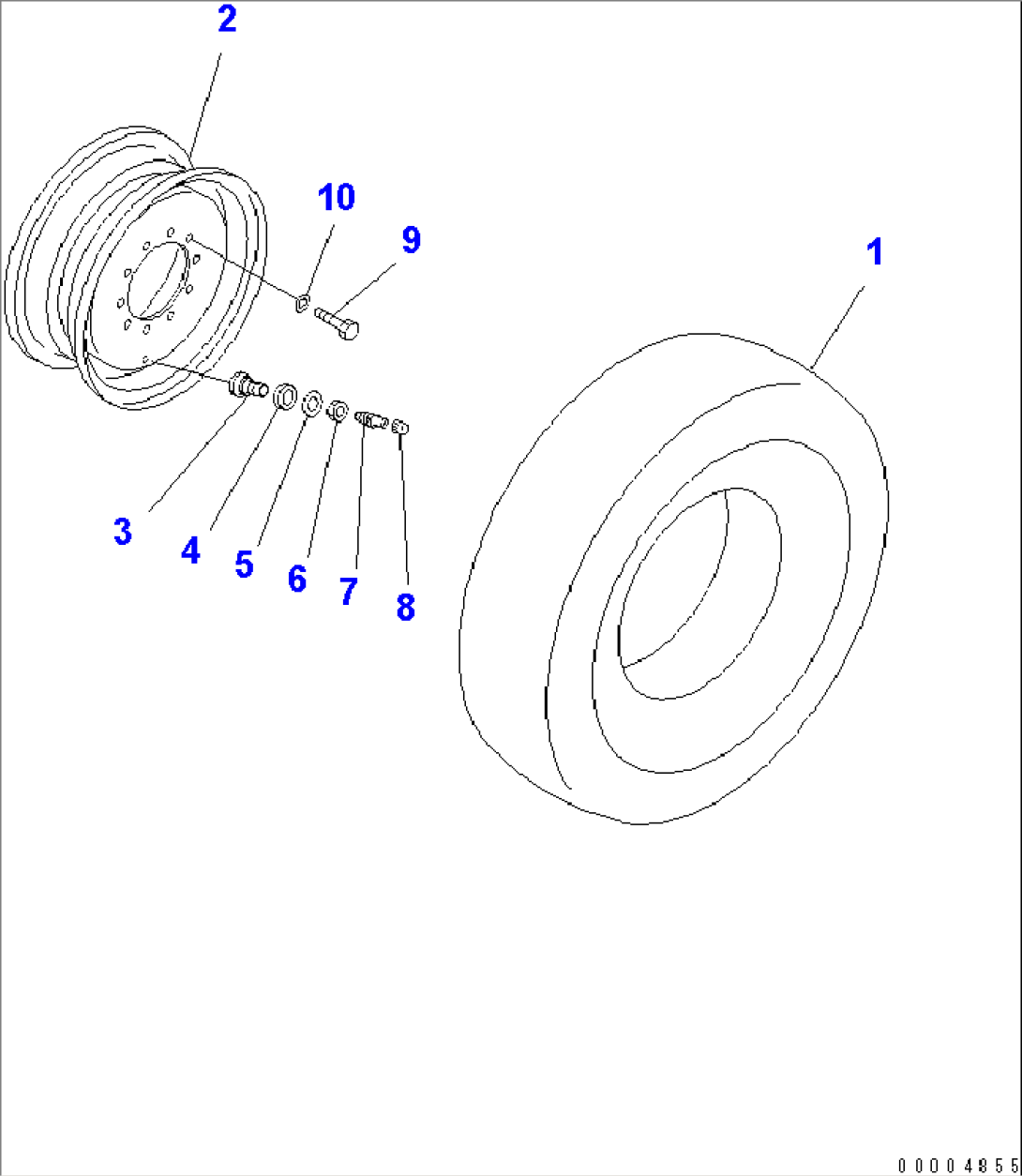

| Item | Part No. | Part Name | Qty | Serial No. |
| 23B-30-37100 | TIRE AND WHEEL ASS'Y,FRONT, R.H. | | 10001- |
| 1 | 23B-30-32210 | TIRE | | 10001- |
| 2 | 23B-30-31211 | RIM,(TITAN) | | 10001- |
| 2 | 23B-30-31210 | RIM,(TITAN) | | 10001- |
| 23B-30-32300 | VALVE,TIRE | | 10001- |
| 3 | 23B-30-32310 | GUIDE | | 10001- |
| 4 | 23B-30-32320 | GROMMET | | 10001- |
| 5 | 23B-30-32330 | WASHER | | 10001- |
| 6 | 23B-30-32340 | NUT | | 10001- |
| 7 | 23B-30-32350 | CORE | | 10001- |
| 8 | 23B-30-32360 | CAP | | 10001- |
| 1 | 23B-30-37200 | TIRE AND WHEEL ASS'Y,FRONT, L.H. | | 10001- |
| 1 | 23B-30-32210 | TIRE | | 10001- |
| 2 | 23B-30-31211 | RIM,(TITAN) | | 10001- |
| 2 | 23B-30-31210 | RIM,(TITAN) | | 10001- |
| 3 | 23B-30-32300 | VALVE,TIRE | | 10001- |
| 3 | 23B-30-32310 | GUIDE | | 10001- |
| 4 | 23B-30-32320 | GROMMET | | 10001- |
| 5 | 23B-30-32330 | WASHER | | 10001- |
| 6 | 23B-30-32340 | NUT | | 10001- |
| 7 | 23B-30-32350 | CORE | | 10001- |
| 8 | 23B-30-32360 | CAP | | 10001- |
| 1 | 23B-30-37100 | TIRE AND WHEEL ASS'Y,REAR, L.H. | | 10001- |
| 1 | 23B-30-32210 | TIRE | | 10001- |
| 2 | 23B-30-31211 | RIM,(TITAN) | | 10001- |
| 2 | 23B-30-31210 | RIM,(TITAN) | | 10001- |
| 3 | 23B-30-32300 | VALVE,TIRE | | 10001- |
| 3 | 23B-30-32310 | GUIDE | | 10001- |
| 4 | 23B-30-32320 | GROMMET | | 10001- |
| 5 | 23B-30-32330 | WASHER | | 10001- |
| 6 | 23B-30-32340 | NUT | | 10001- |
| 7 | 23B-30-32350 | CORE | | 10001- |
| 8 | 23B-30-32360 | CAP | | 10001- |
| 1 | 23B-30-37200 | TIRE AND WHEEL ASS'Y,REAR, R.H. | | 10001- |
| 1 | 23B-30-32210 | TIRE | | 10001- |
| 2 | 23B-30-31211 | RIM,(TITAN) | | 10001- |
| 3 | 23B-30-32300 | VALVE,TIRE | | 10001- |
| 3 | 23B-30-32310 | GUIDE | | 10001- |
| 4 | 23B-30-32320 | GROMMET | | 10001- |
| 5 | 23B-30-32330 | WASHER | | 10001- |
| 6 | 23B-30-32340 | NUT | | 10001- |
| 7 | 23B-30-32350 | CORE | | 10001- |
| 8 | 23B-30-32360 | CAP | | 10001- |
| 9 | 01010-62250 | BOLT | | 10001- |
| 10 | 01643-32260 | WASHER | | 10001- |
