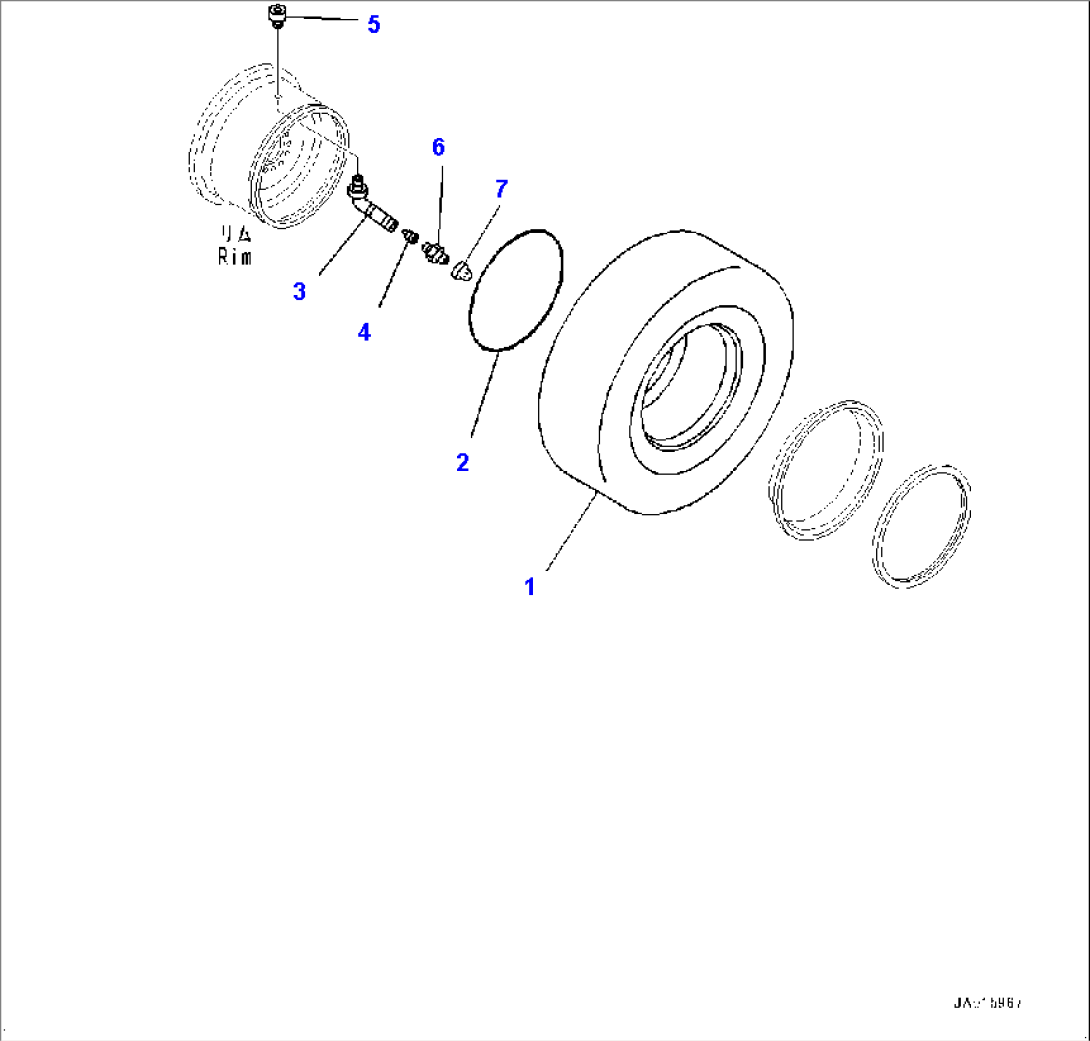

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-X57-1500 | Tire Assembly | 80001- | |
| 2 | 419-30-11630 | O-ring | 80001- | |
| 2 | 09280-10040 | Valve Assembly, Tire | 80001- | |
| 3 | 09280-10130 | Stem, Valve | 80001- | |
| 4 | 09281-00041 | Core, Valve | 80001- | |
| 5 | 09283-00000 | Seat, Valve | 80001- | |
| 6 | 09285-00000 | Adapter | 80001- | |
| 7 | 09282-00017 | Cap, Valve | 80001- |
