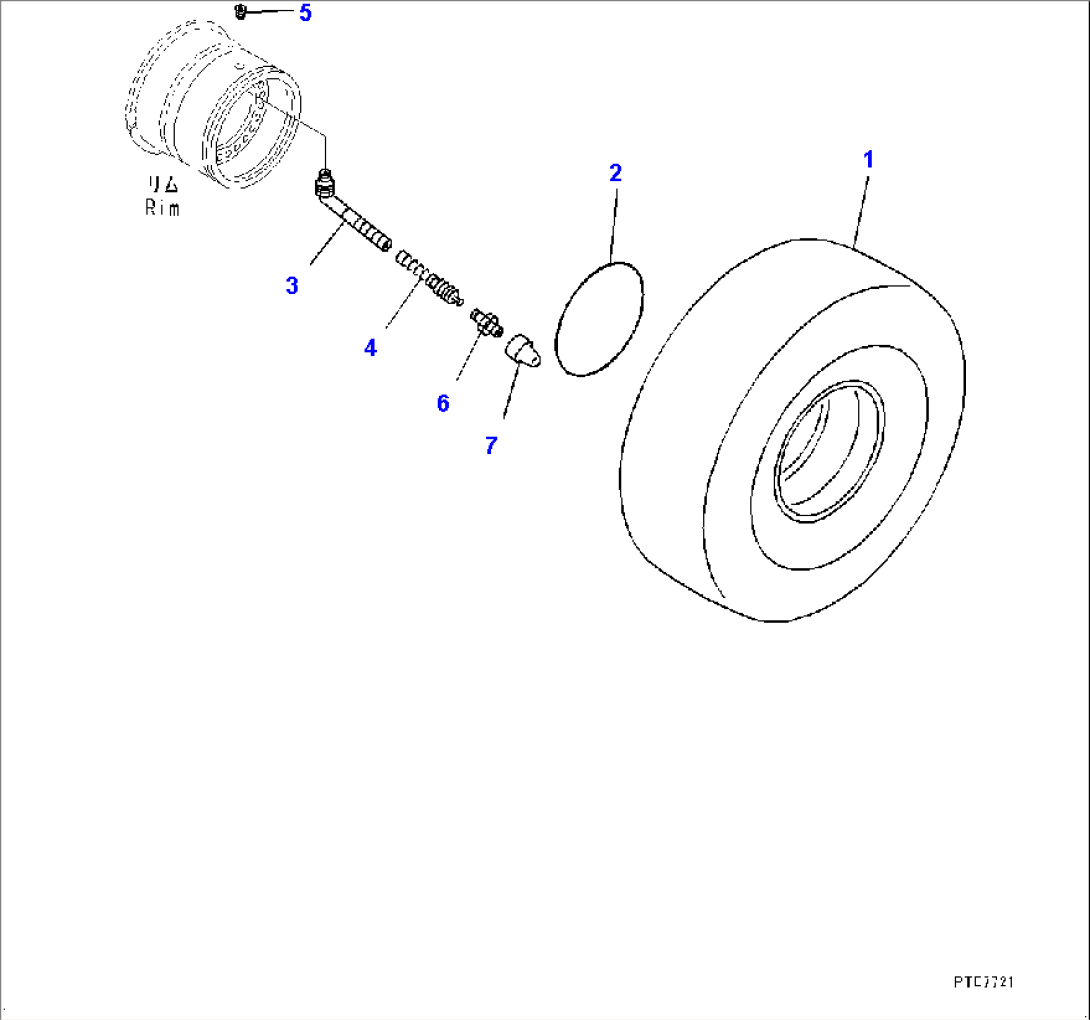

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-X84-2111 | Tire | 90299- | |
| 1 | 421-X84-2110 | Tire | 90216-90298 | |
| 2 | 566-30-11660 | O-ring | 90216- | |
| 2 | 09280-10040 | Valve Assembly, Tire | 90216- | |
| 3 | 09280-10130 | Stem, Valve | 90216- | |
| 4 | 09281-00041 | Core, Valve | 90216- | |
| 5 | 09283-00000 | Seat, Valve | 90216- | |
| 6 | 09285-00000 | Adapter | 90216- | |
| 7 | 09282-00017 | Cap, Valve | 90216- |
