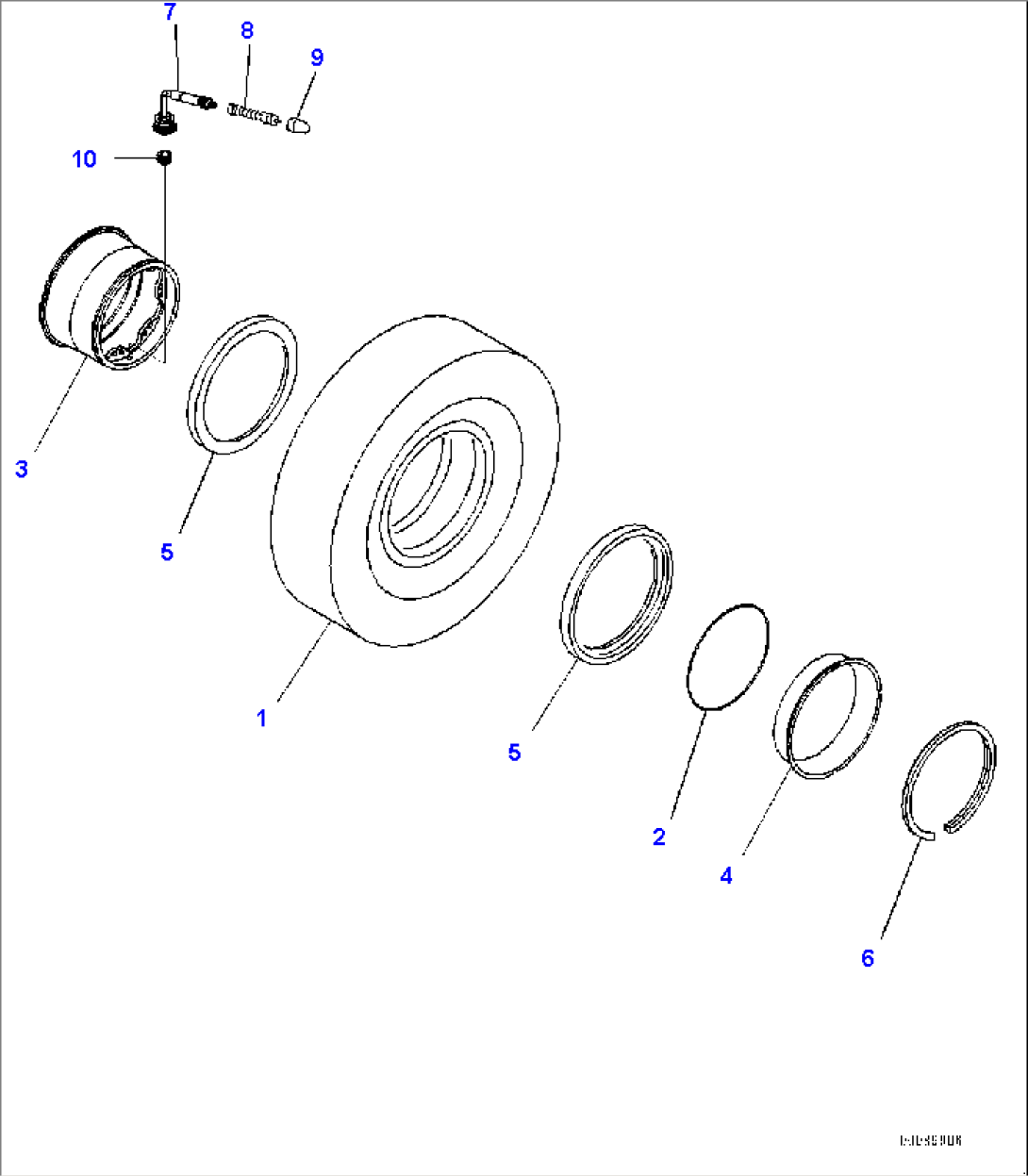

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-30-14880 | Tire | 30001- | |
| 2 | 568-30-11550 | O-ring | 30001- | |
| 569-30-73502 | Rim Assembly | 30001- | ||
| 3 | 569-30-73511 | Rim, Base | 30001- | |
| 4 | 569-30-73520 | Band, Bead Seat | 30001- | |
| 5 | 569-30-73531 | Ring, Side | 30001- | |
| 6 | 569-30-73540 | Ring, Lock, Lock | 30001- | |
| 6 | 569-30-71600 | Valve | 30001- | |
| 7 | 569-30-71610 | Valve, Stem | 30001- | |
| 8 | 09281-00041 | Core, Valve | 30001- | |
| 9 | 09282-00022 | Cap, Valve | 30001- | |
| 10 | 09283-00000 | Seat, Valve | 30001- |
