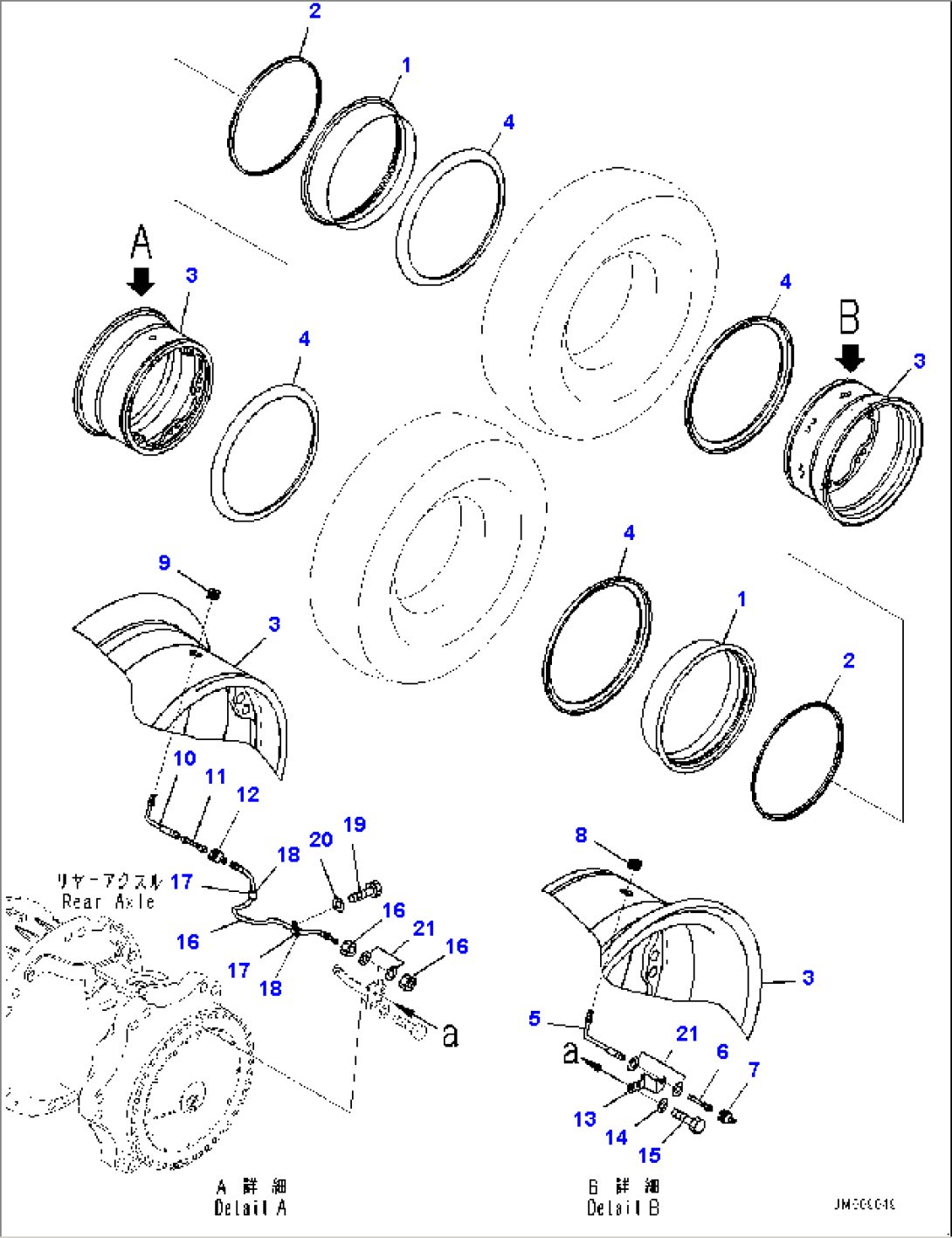

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-30-84200 | Rim Assembly | 50001- | ||
| 1 | 566-30-73220 | Band | 50001- | |
| 2 | 566-30-83240 | Ring, Lock | 50001- | |
| 3 | 566-30-84210 | Rim | 50001- | |
| 4 | 566-30-84230 | Ring, Side | 50001- | |
| 4 | 566-30-82600 | Valve Assembly | 50001- | |
| 5 | 566-30-82610 | Valve | 50001- | |
| 6 | 09281-00041 | Core, Valve | 50001- | |
| 7 | 09282-00022 | Cap, Valve | 50001- | |
| 8 | 09283-00000 | Seat, Valve | 50001- | |
| 8 | 566-30-8L500 | Valve Assembly | 50001- | |
| 9 | 09283-00000 | Seat, Valve | 50001- | |
| 10 | 566-30-8L510 | Valve | 50001- | |
| 11 | 09281-00041 | Core, Valve | 50001- | |
| 12 | 09282-00022 | Cap, Valve | 50001- | |
| 13 | 566-30-8L470 | Plate | 50001- | |
| 14 | 01010-81230 | Bolt | 50001- | |
| 15 | 01643-31232 | Washer | 50001- | |
| 16 | 569-30-72130 | Extension | 50001- | |
| 17 | 04434-51912 | Clip | 50001- | |
| 18 | 07095-20213 | Cushion | 50001- | |
| 19 | 01010-81230 | Bolt | 50001- | |
| 20 | 01643-31232 | Washer | 50001- | |
| 21 | 01640-21223 | Washer, Flat | 50001- |
