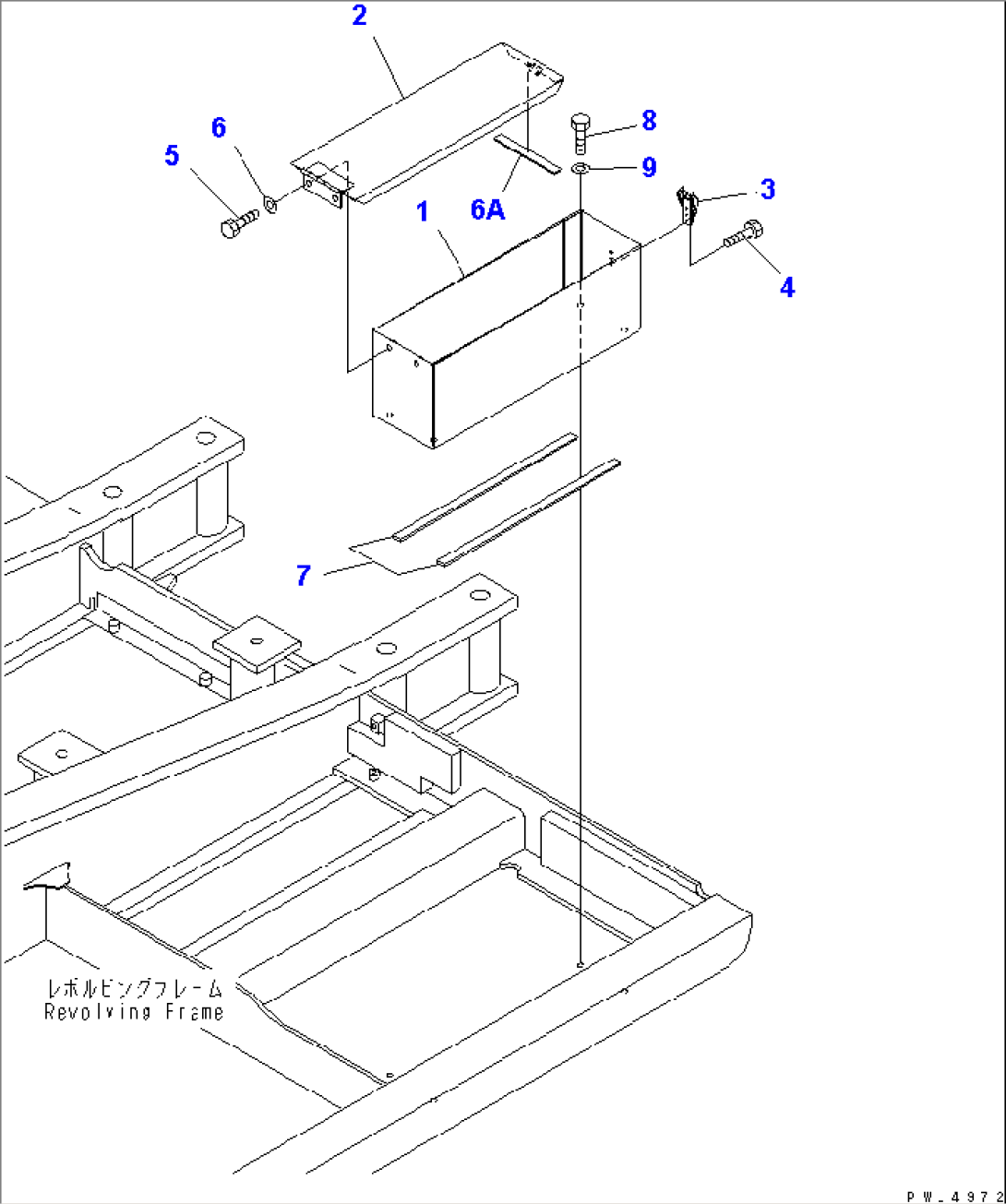

| Item | Part No. | Part Name | Qty | Serial No. |
| 20Y-54-K9672 | TOOL BOX ASS'Y | K34029- | ||
| 20Y-54-K9671 | TOOL BOX ASS'Y | K34001-K34028 | ||
| 1 | 20Y-54-K9641 | BOX | K34001- | |
| 2 | 20Y-54-K9650 | LID | K34001- | |
| 3 | 195-57-11530 | CATCHER | K34001- | |
| 4 | 01016-20512 | BOLT | K34001- | |
| 5 | 01010-51220 | BOLT | K34001- | |
| 6 | 01643-31232 | WASHER | K34001- | |
| 6A | 20Y-54-K4030 | CUSHION | K34029- | |
| 7 | 207-54-62780 | CUSHION | K34001-K34028 | |
| 8 | 01010-81220 | BOLT | K34001- | |
| 9 | 01643-31232 | WASHER | K34001- |
