| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-Z65-H180 | BRACKET | 75001- | |
| 2 | 421-Z65-H190 | WHEEL STOPPER | 75001- | |
| 3 | 01010-80816 | BOLT | 75001- | |
| 4 | 01643-30823 | WASHER | 75001- | |
| 5 | 421-Z65-H150 | BAND | 75001- | |
| 6 | 09460-00004 | LOCK | 75001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250pz 6 s/n 75001 75749 (for north america)
- Accessory and tool
- Tool (wheel stopper and lock)(#75001 )
Поиск по каталогу

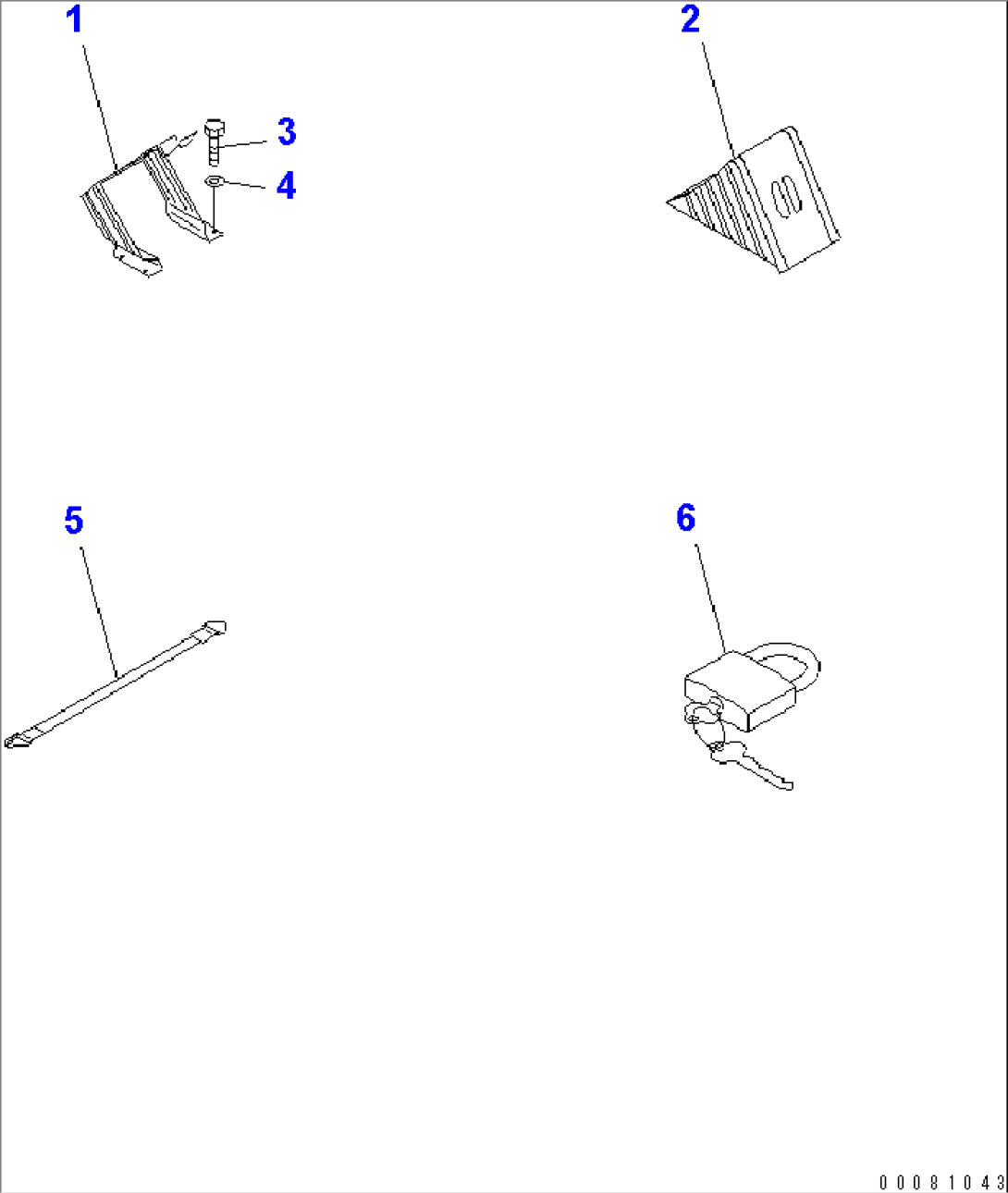

TOOL (WHEEL STOPPER AND LOCK)(#75001-)
