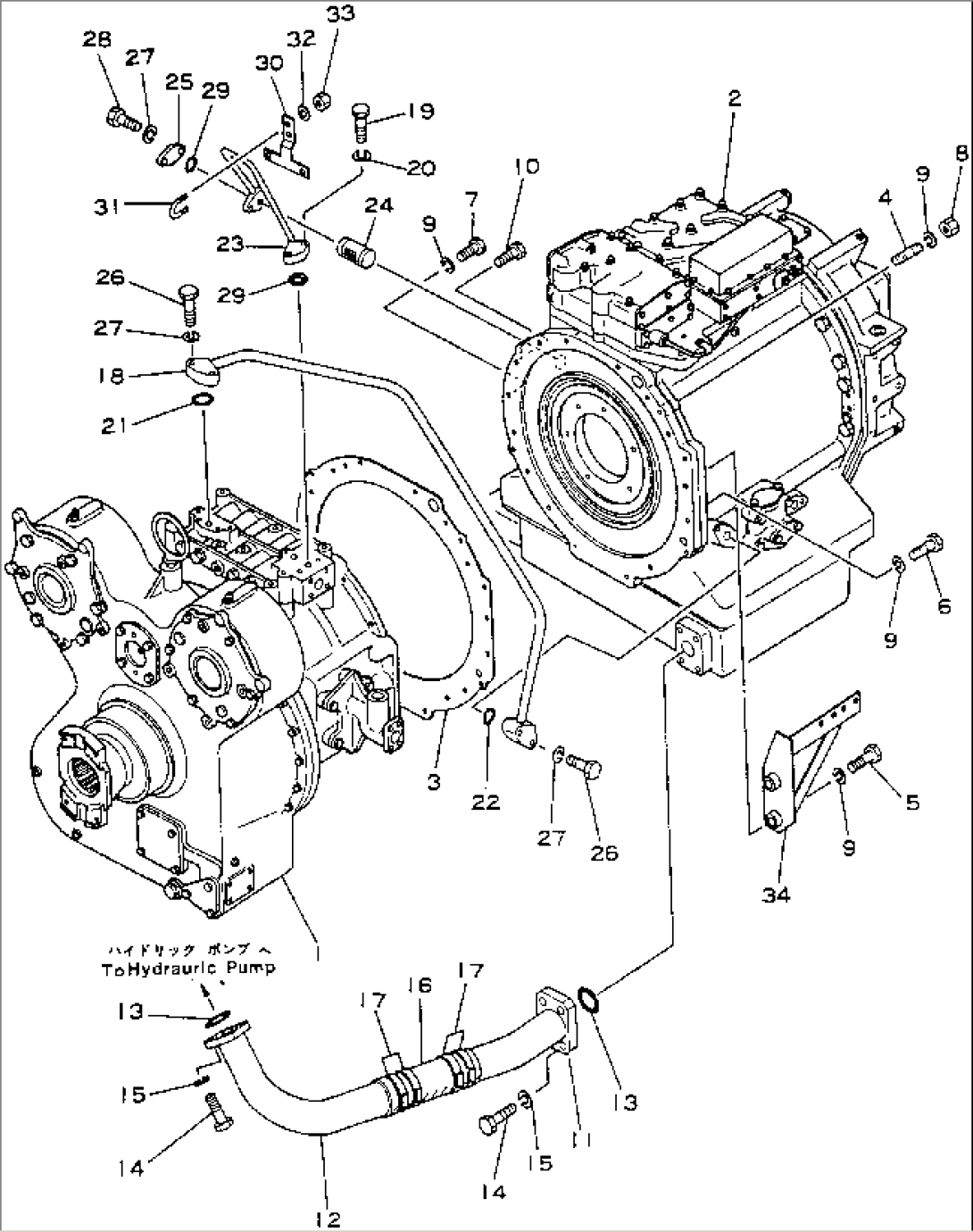

| Item | Part No. | Part Name | Qty | Serial No. |
| 561-15-01000 | TORQFLOW ASS'Y | 1000-1000 | ||
| 561-15-03000 | TORQFLOW ASS'Y | 1002- | ||
| 1 | (568-13-11001) | TORQUE CONVERTER A. | 1000-1000 | |
| 1 | (711-28-11000) | TORQUE CONVERTER A. | 1002- | |
| 2 | (561-15-00010) | TRANSMISSION ASS'Y | 1002- | |
| 3 | 568-13-13211 | GASKET | 1002- | |
| 4 | 01144-51455 | STUD | 1002- | |
| 5 | 01010-51480 | BOLT | 1002- | |
| 6 | 01010-51460 | BOLT | 1002- | |
| 7 | 01010-51475 | BOLT | 1002- | |
| 8 | 01580-11411 | NUT | 1002- | |
| 9 | 01602-21442 | WASHER | 1002- | |
| 10 | 01010-51245 | BOLT | 1002- | |
| 11 | 568-16-11610 | TUBE | 1002- | |
| 12 | 568-16-11620 | TUBE | 1002- | |
| 13 | 07000-32075 | O-RING | 1002- | |
| 14 | 01010-51240 | BOLT | 1002- | |
| 15 | 01602-21236 | WASHER | 1002- | |
| 16 | 07260-25822 | HOSE | 1002- | |
| 17 | 07281-10809 | CLAMP | 1002- | |
| 18 | 568-15-16340 | TUBE | 1002- | |
| 19 | 01010-51055 | BOLT | 1002- | |
| 20 | 01602-21030 | WASHER | 1002- | |
| 21 | 07000-63025 | O-RING | 1002- | |
| 22 | 07000-63035 | O-RING | 1002- | |
| 23 | 561-15-38320 | TUBE | 1002- | |
| 24 | 568-15-13660 | STRAINER | 1002- | |
| 25 | 568-15-13680 | COVER | 1002- | |
| 26 | 01010-51045 | BOLT | 1002- | |
| 27 | 01602-21030 | WASHER | 1002- | |
| 28 | 01010-51060 | BOLT | 1002- | |
| 29 | 07000-63022 | O-RING | 1002- | |
| 30 | 568-15-16160 | BRACKET | 1002- | |
| 31 | 07283-11529 | CLIP | 1002- | |
| 32 | 01643-20823 | WASHER | 1002- | |
| 33 | 01598-00809 | NUT | 1002- | |
| 34 | 568-15-16150 | BRACKET | 1002- |
