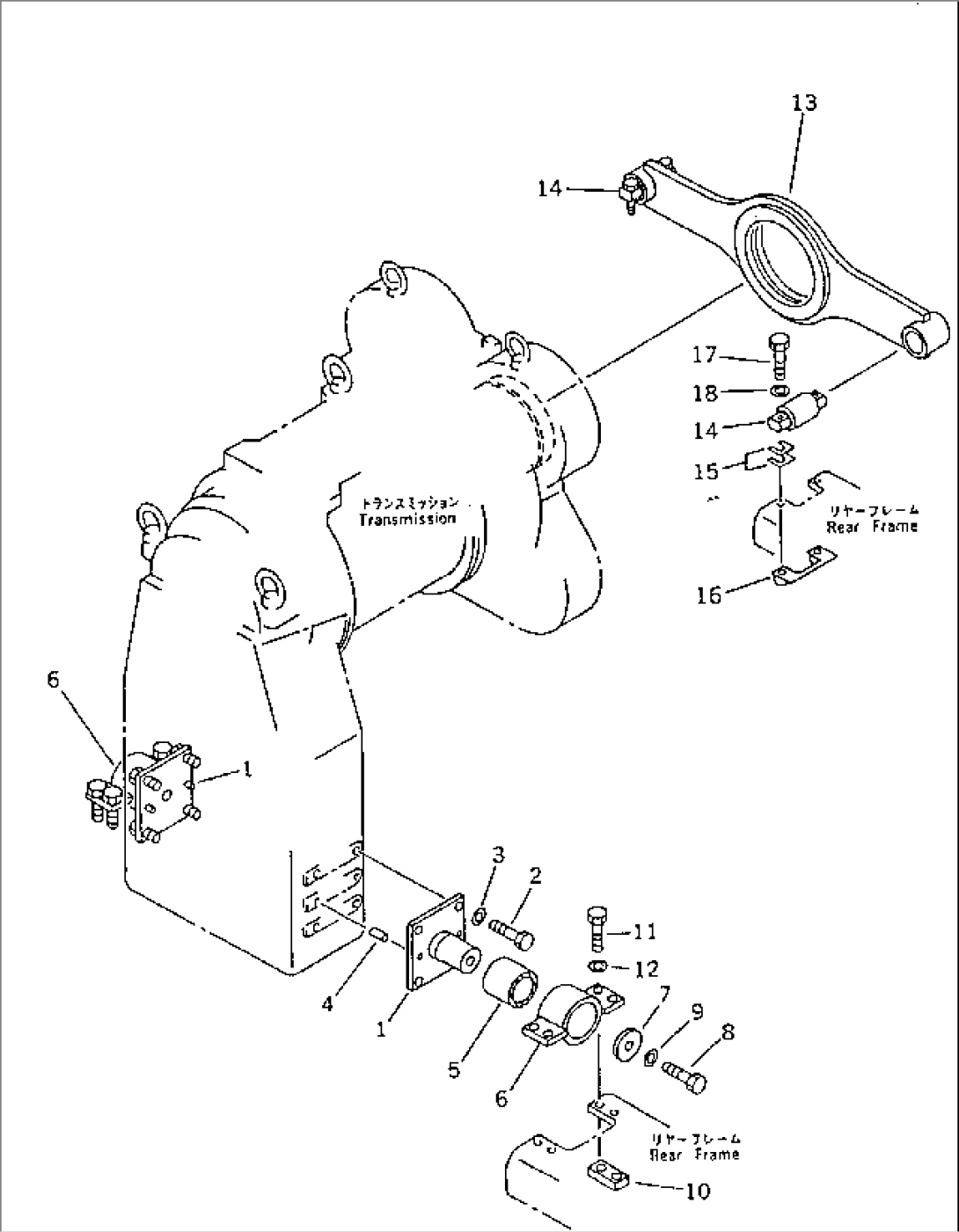

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-14-11120 | PIN | 10001- | |
| 2 | 01010-32060 | BOLT | 10001- | |
| 3 | 01643-32060 | WASHER | 10001- | |
| 4 | 04020-01228 | PIN,DOWEL | 10001- | |
| 5 | 569-14-41130 | CUSHION | 10001- | |
| 6 | 428-14-11130 | BRACKET | 10001- | |
| 7 | 15R-70-14180 | PLATE | 10001- | |
| 8 | 01010-32040 | BOLT | 10001- | |
| 9 | 01643-32060 | WASHER | 10001- | |
| 10 | 428-14-11150 | SEAT | 10001- | |
| 11 | 01010-32075 | BOLT | 10001- | |
| 12 | 01643-32060 | WASHER | 10001- | |
| 13 | 428-14-11110 | TRUNNION | 10001- | |
| 14 | 566-14-51152 | CUSHION | 10001- | |
| 15 | 426-14-11130 | SHIM, 0.5MM | 10001- | |
| 16 | 428-14-11140 | PLATE | 10001- | |
| 17 | 01010-31485 | BOLT | 10001- | |
| 18 | 01643-31445 | WASHER | 10001- |
