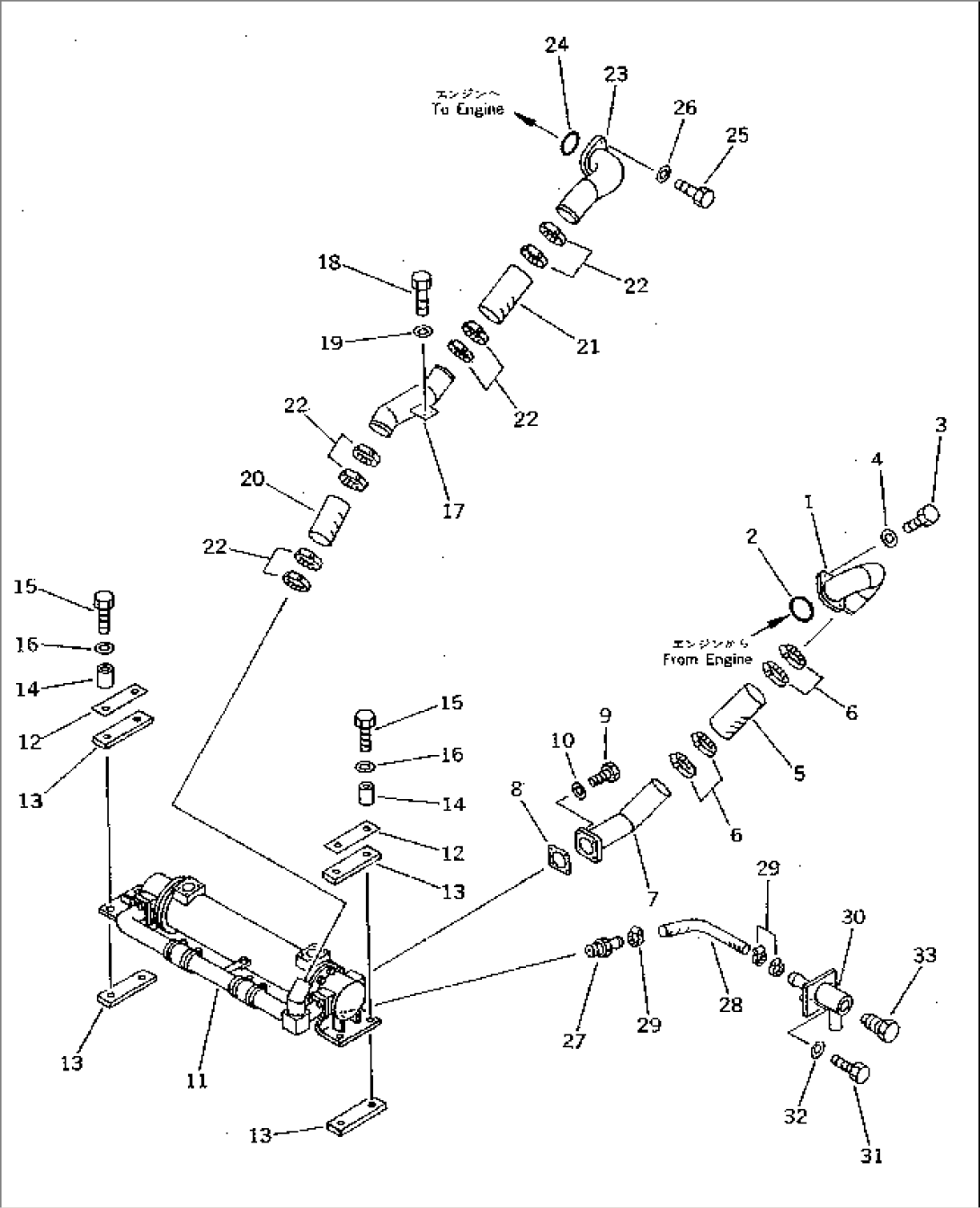

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-03-11460 | TUBE | 10001-10499 | |
| 2 | 07000-02095 | O-RING | 10001-10499 | |
| 3 | 01010-51035 | BOLT | 10001-10499 | |
| 4 | 01643-51032 | WASHER | 10001-10499 | |
| 5 | 07260-28728 | HOSE | 10001-10499 | |
| 6 | 07281-01159 | CLAMP | 10001-@ | |
| 7 | 427-03-11470 | TUBE | 10001-10499 | |
| 8 | 566-03-42170 | GASKET | 10001-10499 | |
| 9 | 01010-51035 | BOLT | 10001-10499 | |
| 10 | 01643-51032 | WASHER | 10001-10499 | |
| 11 | (427-03-14100) | OIL COOLER ASS'Y,(SEE FIG.1261) | 10001-10499 | |
| 12 | 427-03-10350 | PLATE | 10001-@ | |
| 13 | 427-03-10360 | RUBBER | 10001-@ | |
| 14 | 427-03-10370 | SPACER | 10001-@ | |
| 15 | 01010-51265 | BOLT | 10001-@ | |
| 16 | 01643-31232 | WASHER | 10001-@ | |
| 17 | 427-03-11480 | TUBE | 10001-10499 | |
| 18 | 01010-51030 | BOLT | 10001-10499 | |
| 19 | 01643-31032 | WASHER | 10001-10499 | |
| 20 | 07260-28720 | HOSE | 10001-10499 | |
| 21 | 07260-28728 | HOSE | 10001-10499 | |
| 22 | 07281-01159 | CLAMP | 10001-@ | |
| 23 | 427-03-11490 | TUBE | 10001-10499 | |
| 24 | 07000-02095 | O-RING | 10001-10499 | |
| 25 | 01010-51035 | BOLT | 10001-10499 | |
| 26 | 01643-51032 | WASHER | 10001-10499 | |
| 27 | 6137-81-3231 | NIPPLE | 10001-@ | |
| 28 | 427-03-11560 | HOSE | 10001-@ | |
| 29 | 07281-00359 | CLAMP | 10001-@ | |
| 30 | 426-01-11231 | TUBE | 10001-@ | |
| 31 | 01010-51025 | BOLT | 10001-10499 | |
| 32 | 01643-31032 | WASHER | 10001-10499 | |
| 33 | 424-01-11110 | PLUG | 10001-@ |
