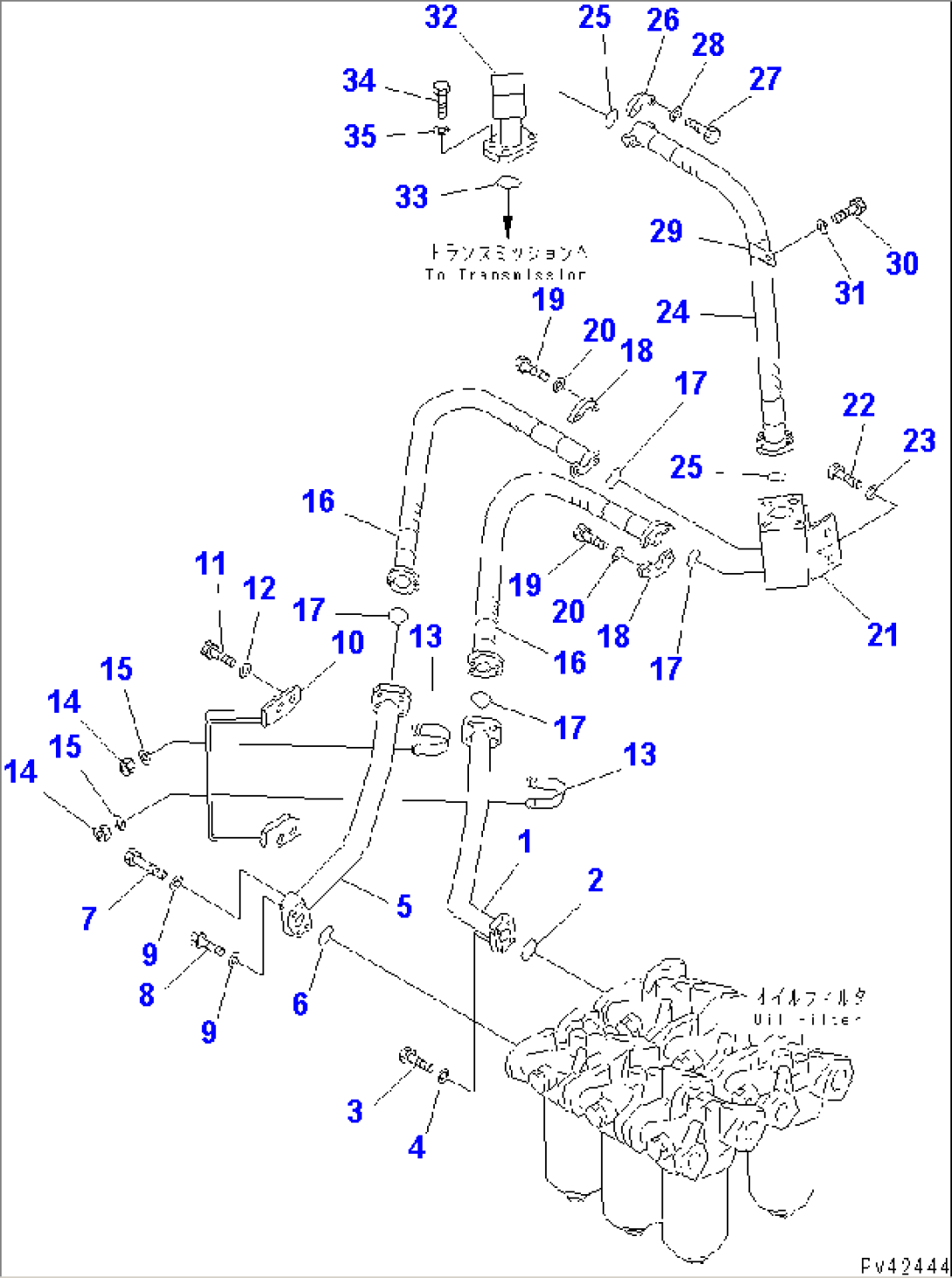

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-16-11232 | TUBE | 10001- | |
| 2 | 07000-F3038 | O-RING | 10001- | |
| (\2\07000-03038) | O-RING | (10001-10061) | ||
| 3 | 01435-01040 | BOLT | 10501- | |
| \0\01010-51045 | BOLT | 10001-10499 | ||
| 4 | 01643-31032 | WASHER | 10001-10499 | |
| 5 | 427-16-11242 | TUBE | 10001- | |
| 6 | 07000-F3038 | O-RING | 10001- | |
| (\2\07000-03038) | O-RING | (10001-10061) | ||
| 7 | 07372-21055 | BOLT | 10001- | |
| 8 | 07372-21060 | BOLT | 10001- | |
| 9 | 01643-51032 | WASHER | 10001- | |
| 10 | 427-16-11251 | BRACKET | 10001- | |
| 11 | 01435-01225 | BOLT | 10501- | |
| \0\01010-51230 | BOLT | 10001-10499 | ||
| 12 | 01643-31232 | WASHER | 10001-10499 | |
| 13 | 07283-33450 | CLIP | 10001- | |
| 14 | 01597-01009 | NUT | 10001- | |
| 15 | 01643-31032 | WASHER | 10001- | |
| 16 | 07296-01208 | HOSE | 10001- | |
| 17 | 07000-F3038 | O-RING | 10001- | |
| (\2\07000-03038) | O-RING | (10001-10061) | ||
| 18 | 07371-31255 | FLANGE,SPLIT | 10001- | |
| 19 | 07372-21035 | BOLT | 10054- | |
| 07372-21040 | BOLT | 10001-10053 | ||
| 20 | 01643-51032 | WASHER | 10001- | |
| 21 | 427-16-11261 | BLOCK | 10001- | |
| 22 | 01435-01225 | BOLT | 10501- | |
| \0\01010-51230 | BOLT | 10001-10499 | ||
| 23 | 01643-31232 | WASHER | 10001-10499 | |
| 24 | 07296-01414 | HOSE | 10001- | |
| 25 | 07000-F3048 | O-RING | 10001- | |
| (\2\07000-03048) | O-RING | (10001-10061) | ||
| 26 | 07371-31465 | FLANGE,SPLIT | 10001- | |
| 27 | 07372-21240 | BOLT | 10001- | |
| 28 | 01643-51232 | WASHER | 10001- | |
| 29 | 19M-60-12720 | CLIP | 10001- | |
| 30 | 01010-81030 | BOLT | 10001- | |
| 31 | 01643-31032 | WASHER | 10001- | |
| 32 | 427-16-11271 | TUBE | 10001- | |
| 33 | 07000-F2060 | O-RING | 10001- | |
| (\2\07000-02060) | O-RING | (10001-10061) | ||
| 34 | 07372-21240 | BOLT | 10001- | |
| 35 | 01643-51232 | WASHER | 10001- |
