| Item | Part No. | Part Name | Qty | Serial No. |
| (144-15-00120) | TRANSMISSION ASS'Y | 47153- | ||
| \0\144-15-00019 | TRANSMISSION ASS'Y | 45306-47152 | ||
| \0\144-15-00018 | TRANSMISSION ASS'Y | 45001-45305 | ||

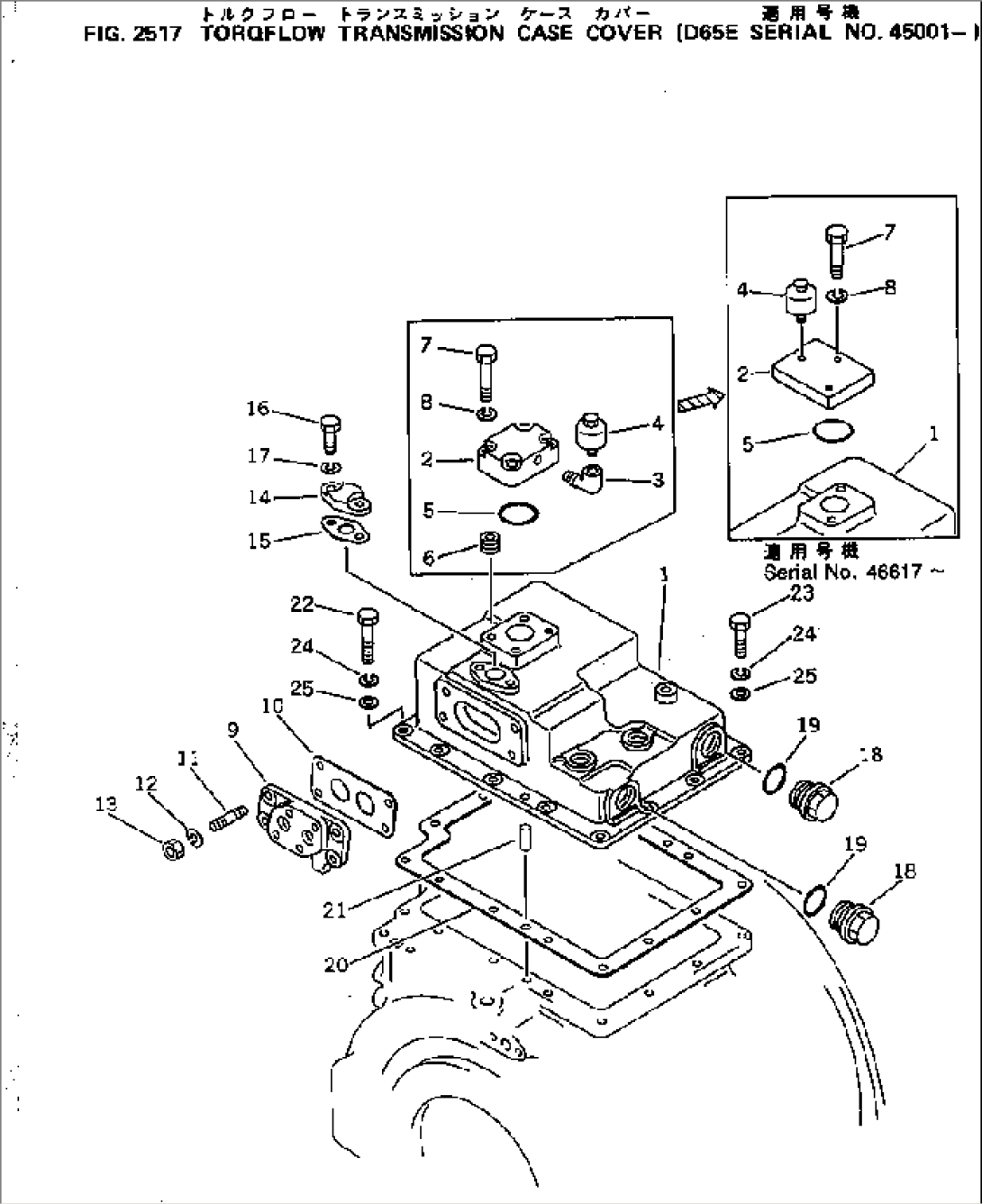

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2519. | ||||
| 1 | 144-15-25551 | CASE | 46617- | |
| 1 | 144-15-25512 | CASE | 45001-46616 | |
| 2 | 144-15-21671 | BLOCK | 46617- | |
| 2 | 144-15-21670 | BLOCK | 45001-46616 | |
| 3 | 07323-30200 | ELBOW | 45001-46616 | |
| 4 | 07030-00252 | BREATHER | 45001- | |
| 5 | 07000-03048 | O-RING (K2) | 45001- | |
| 6 | 01190-01008 | HELISERT | 45001-46616 | |
| 7 | 01010-51045 | BOLT | 46617- | |
| 7 | 01010-51045 | BOLT | 45001-46616 | |
| 8 | 01602-21030 | WASHER,SPRING | 46617- | |
| 8 | 01602-21030 | WASHER,SPRING | 45001-46616 | |
| 9 | 175-15-45530 | COVER | 45001- | |
| 10 | 175-15-45540 | GASKET (K2) | 45001- | |
| 11 | 01124-51025 | STUD | 45001- | |
| 12 | 01602-21030 | WASHER,SPRING | 45001- | |
| 13 | 01580-11008 | NUT | 45001- | |
| 14 | 145-15-45830 | COVER | 45001- | |
| 15 | 145-15-45840 | GASKET (K2) | 45001- | |
| 16 | 01010-50825 | BOLT | 45001- | |
| 17 | 01602-20825 | WASHER,SPRING | 45001- | |
| 18 | 144-15-25530 | PLUG | 45001- | |
| 19 | 07002-03634 | O-RING (K2) | 45001- | |
| 20 | 144-15-25520 | GASKET (K2) | 45001- | |
| 21 | 04020-01024 | PIN | 45001- | |
| 22 | 01010-51030 | BOLT | 45001- | |
| 23 | 01010-51040 | BOLT | 45001- | |
| 24 | 01602-21030 | WASHER,SPRING | 45001- | |
| 25 | 01640-21016 | WASHER | 45001- |
