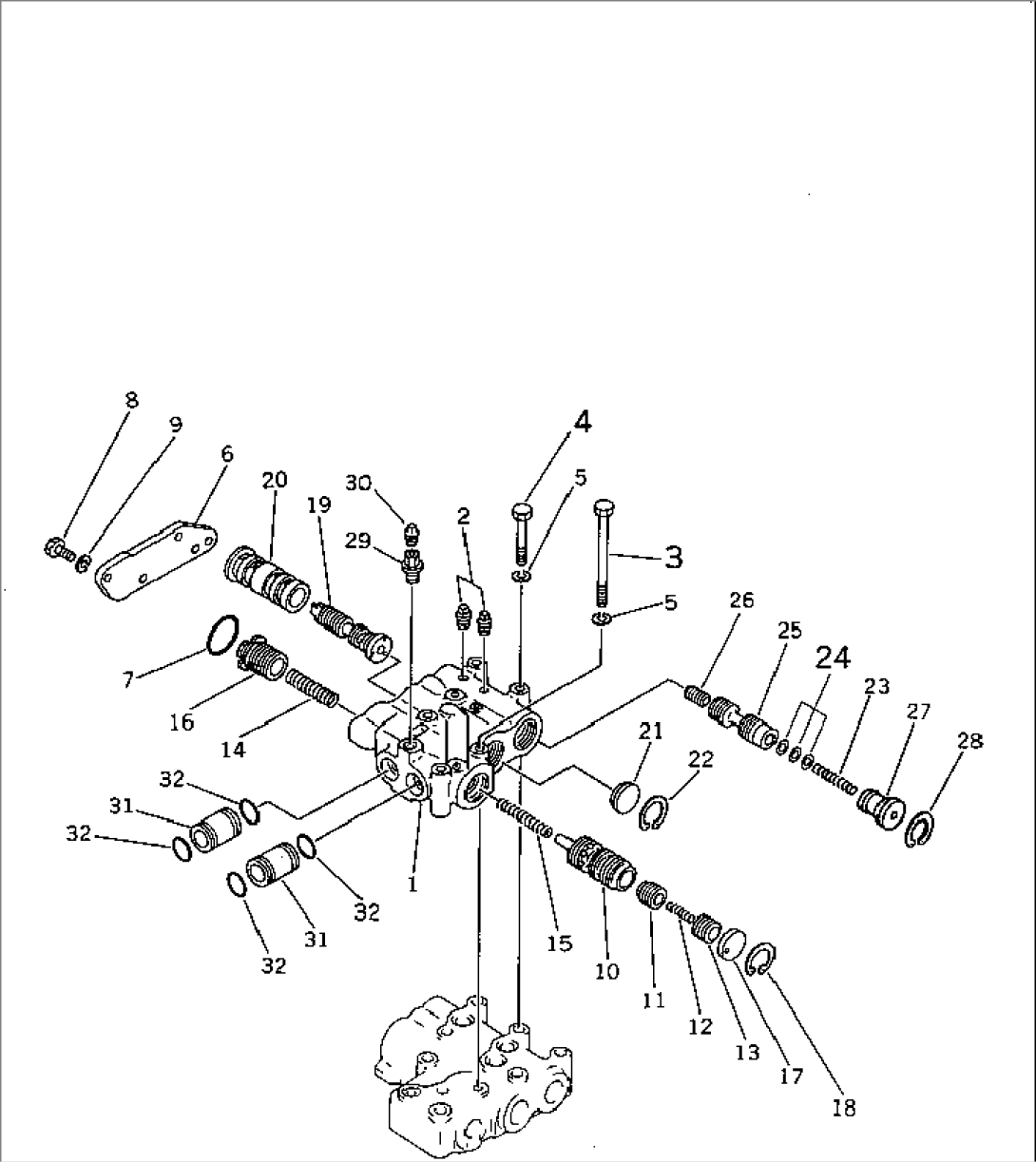

| Item | Part No. | Part Name | Qty | Serial No. |
| (144-15-00120) | TRANSMISSION ASS'Y | 47153- | ||
| \0\144-15-00019 | TRANSMISSION ASS'Y | 45306-47152 | ||
| \0\144-15-00018 | TRANSMISSION ASS'Y | 45001-45305 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2519. | ||||
| (15B-15-00130) | VALVE ASS'Y | 47153- | ||
| (144-15-00044) | VALVE ASS'Y | 45001-47152 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 AND 2513. | ||||
| 145-15-00210 | BODY ASS'Y | 45001- | ||
| 1 | \6\ | BODY | 45001- | |
| 2 | 07042-20108 | PLUG | 45001- | |
| 3 | 01011-51035 | BOLT | 47153- | |
| 3 | 175-15-45170 | BOLT | 45001-47152 | |
| 4 | 01011-51060 | BOLT | 47153- | |
| 4 | 144-15-25180 | BOLT | 45001-47152 | |
| 5 | 01602-01030 | WASHER,SPRING | 45001- | |
| 6 | 145-15-45810 | COVER | 45001- | |
| 7 | 07000-73045 | O-RING (K2) | 45001- | |
| 8 | 01010-51025 | BOLT | 45001- | |
| 9 | 01602-21030 | WASHER,SPRING | 45001- | |
| 10 | 145-15-45220 | VALVE,MODULATE | 45001- | |
| 11 | 145-15-45390 | VALVE | 45001- | |
| 12 | 180-14-25560 | SPRING | 45001- | |
| 13 | 287-15-15390 | VALVE | 45001- | |
| 14 | 145-15-45310 | SPRING | 45001- | |
| 15 | 145-15-45320 | SPRING | 45001- | |
| 16 | 145-15-45230 | VALVE | 45001- | |
| 17 | 145-15-45240 | STOPPER | 45001- | |
| 18 | 04065-03815 | RING,SNAP | 45001- | |
| 19 | 145-15-45260 | VALVE,QUICK RETURN | 45001- | |
| 20 | 145-15-45150 | SLEEVE | 45001- | |
| 21 | 145-15-45420 | STOPPER | 45001- | |
| 22 | 04065-03815 | RING,SNAP | 45001- | |
| 23 | 145-15-45510 | SPRING | 45001- | |
| 24 | 424-15-16420 | SHIM, 0.5MM | 47153- | |
| 25 | 145-15-45380 | VALVE,REDUCING | 45001- | |
| 26 | 145-14-23720 | PISTON | 45001- | |
| 27 | 145-15-45520 | RETAINER | 45001- | |
| 28 | 04065-03815 | RING,SNAP | 45001- | |
| 145-15-00220 | PLUG ASS'Y | 45001- | ||
| 29 | \6\ | PLUG | 45001- | |
| 30 | 07042-20108 | PLUG | 45001- | |
| 31 | 145-15-45250 | SLEEVE | 45001- | |
| 32 | 07000-73028 | O-RING (K2) | 45001- |
