| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (144-15-00011) | TRANSMISSION ASS'Y | 20295-22387 | |
| 1 | (144-15-00012) | TRANSMISSION ASS'Y | 22388-28336 | |
| 1 | (144-15-00013) | TRANSMISSION ASS'Y | 28337-31000 | |

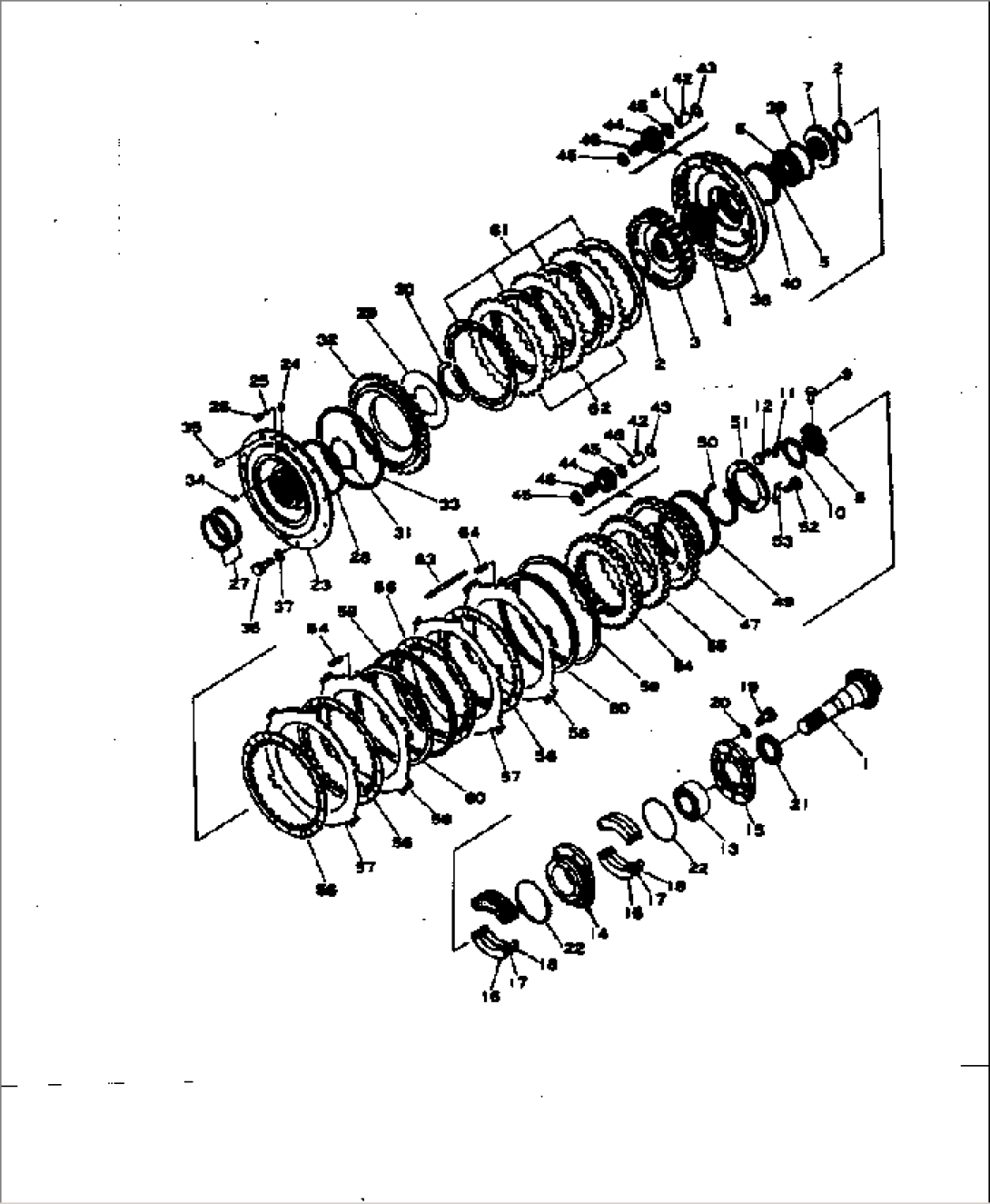

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.1251 TO 1265. | ||||
| 1 | 144-15-22171 | SHAFT | 20295-31000 | |
| 2 | 04064-06525 | RING | 20295-31000 | |
| 3 | 144-15-22421 | GEAR | 20295-31000 | |
| 3 | \0\144-15-22420 | GEAR | 20295-31000 | |
| 4 | 144-15-22150 | GEAR | 20295-31000 | |
| 5 | 144-15-22180 | COLLAR | 20295-31000 | |
| 6 | 06042-01015 | BEARING | 20295-31000 | |
| 7 | 144-15-22160 | GEAR | 20295-31000 | |
| 8 | 135-15-11634 | NUT | 20295-31000 | |
| 9 | 145-15-31331 | PIN | 20295-31000 | |
| 10 | 145-15-31340 | RING | 20295-31000 | |
| 11 | 145-15-31350 | LOCK (KIT) | 20295-31000 | |
| 12 | 01010-30610 | BOLT | 20295-31000 | |
| 13 | 144-15-22810 | BEARING | 20295-31000 | |
| 14 | 144-822-1220 | CAGE | 20295-31000 | |
| 15 | 144-822-1230 | COVER | 20295-31000 | |
| 16 | 144-15-06010 | SHIM ASS'Y (KIT) | 20295-31000 | |
| 16 | 144-15-21250 | SHIM, 0.1MM | 20295-31000 | |
| 17 | 144-15-21260 | SHIM, 0.2MM | 20295-31000 | |
| 18 | 144-15-21270 | SHIM, 1.0MM | 20295-31000 | |
| 19 | 01040-31460 | BOLT | 20295-22387 | |
| 19 | 01010-31460 | BOLT | 22388-31000 | |
| 20 | 01602-01442 | WASHER | 20295-31000 | |
| 21 | 07012-20090 | SEAL (KIT) | 20295-31000 | |
| 22 | 07000-05160 | O-RING (KIT) | 20295-31000 | |
| 23 | 144-15-22260 | CYLINDER | 20295-31000 | |
| 24 | 145-14-11320 | PLUG | 20295-31000 | |
| 25 | 04260-01270 | BALL | 20295-31000 | |
| 26 | 234-15-12790 | SCREW | 20295-31000 | |
| 27 | 144-15-22891 | RING | 20295-31000 | |
| 28 | 131-11-11740 | RING | 20295-31000 | |
| 29 | 234-15-12270 | SPRING | 20295-31000 | |
| 30 | 04070-00130 | RING | 20295-31000 | |
| 30 | \0\170-14-22980 | RING | 20295-28336 | |
| 31 | 04070-00105 | RING | 20295-31000 | |
| 32 | 144-15-22190 | PISTON | 20295-31000 | |
| 33 | 234-15-12750 | RING | 20295-31000 | |
| 34 | 234-15-12810 | PIN | 20295-31000 | |
| 35 | 04020-01024 | PIN | 20295-31000 | |
| 36 | 01010-31035 | BOLT | 20295-31000 | |
| 37 | 01602-01030 | WASHER | 20295-31000 | |
| 38 | 144-15-22250 | CARRIER | 20295-31000 | |
| 39 | 144-15-22860 | RING | 20295-31000 | |
| 40 | 144-15-11290 | RING | 20295-31000 | |
| 41 | 144-15-22550 | SHAFT | 20295-31000 | |
| 42 | 170-14-22691 | KEY | 20295-31000 | |
| 43 | 04065-03212 | RING | 20295-31000 | |
| 44 | 144-15-22440 | GEAR | 20295-31000 | |
| 45 | 144-15-22571 | WASHER | 20295-31000 | |
| 46 | 130-09-14140 | BEARING | 20295-22387 | |
| 46 | 09232-03225 | BEARING | 22388-31000 | |
| 47 | 144-15-22280 | CARRIER | 20295-31000 | |
| 48 | 144-15-22540 | SHAFT | 20295-31000 | |
| 49 | 234-15-12350 | RING | 20295-31000 | |
| 50 | 144-15-22850 | RING | 20295-31000 | |
| 51 | 144-15-22290 | COVER | 20295-31000 | |
| 52 | 01010-31025 | BOLT | 20295-31000 | |
| 53 | 144-15-22720 | PLATE (KIT) | 20295-31000 | |
| 54 | 144-15-22630 | GEAR | 20295-31000 | |
| 55 | 144-15-22640 | GEAR | 20295-31000 | |
| 56 | 154-15-12712 | DISC | 20295-22387 | |
| 56 | 154-15-12713 | DISC | 22388-31000 | |
| 57 | 154-15-12780 | PLATE | 20295-31000 | |
| 58 | 144-15-22350 | PISTON | 20295-31000 | |
| 59 | 144-15-22871 | RING | 20295-31000 | |
| 59 | \0\144-15-22870 | RING | 20295-25897 | |
| 60 | 144-15-22881 | RING | 20295-31000 | |
| 60 | \0\144-15-22880 | RING | 20295-25897 | |
| 61 | 145-14-12711 | DISC | 20295-31000 | |
| 62 | 234-15-12720 | PLATE | 20295-31000 | |
| 63 | 144-15-22760 | PIN | 20295-31000 | |
| 64 | 170-14-22330 | SPRING | 20295-31000 |
