| Item | Part No. | Part Name | Qty | Serial No. |
| (144-15-00300) | TRANSMISSION ASS'Y | 46890- | ||

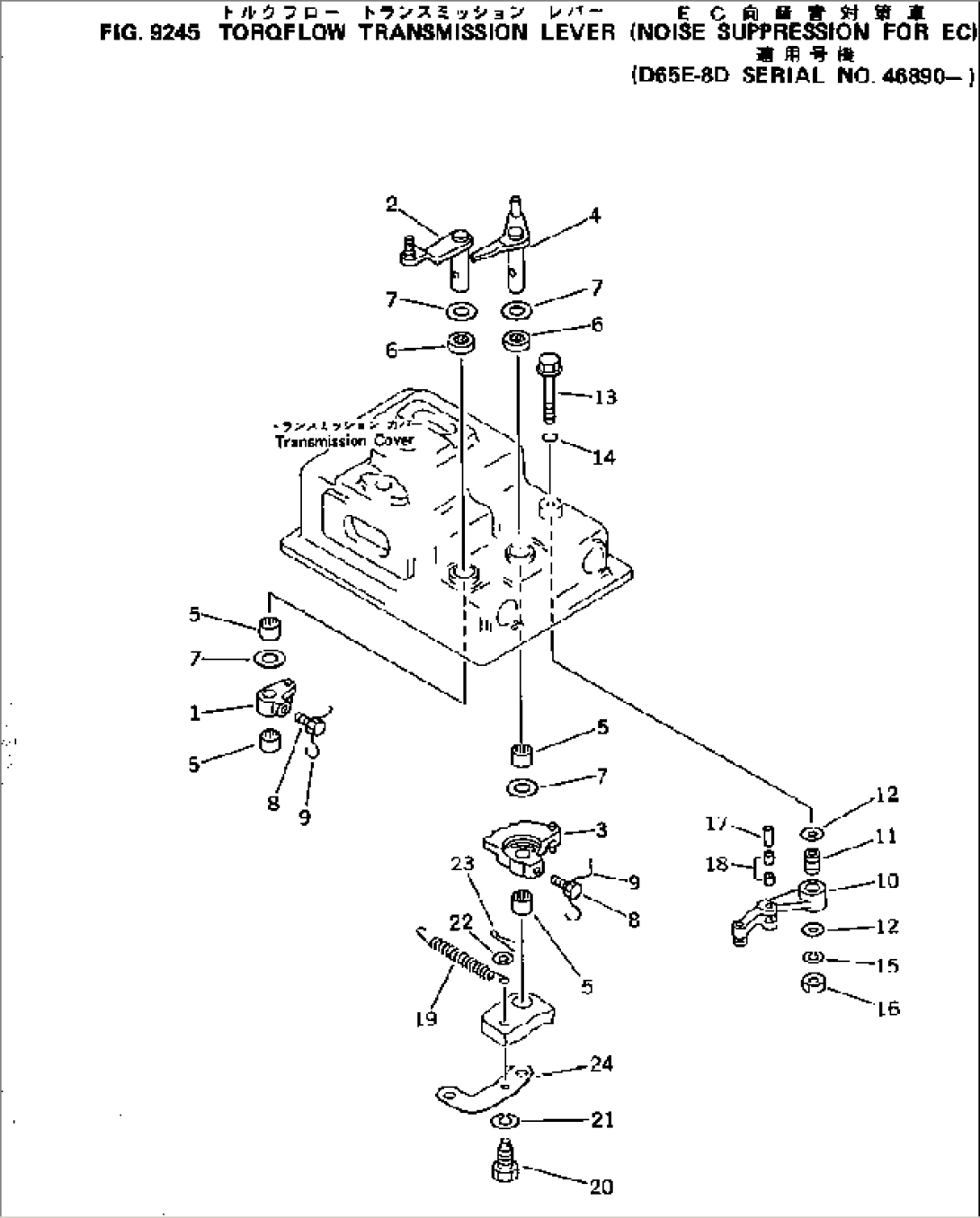

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.9235 TO 9245. | ||||
| 1 | 144-15-25560 | LEVER | 46890- | |
| 2 | 144-15-25651 | LEVER | 46890- | |
| 3 | 144-15-25632 | LEVER | 46890- | |
| 4 | 144-15-25742 | LEVER | 46890- | |
| 5 | 06120-02016 | BEARING | 46890- | |
| 6 | 144-15-29110 | SEAL,OIL (K2) | 46890- | |
| 7 | 144-15-25570 | WASHER | 46890- | |
| 8 | 125-15-11530 | BOLT | 46890- | |
| 9 | 04059-01010 | WIRE (K2) | 46890- | |
| 10 | 144-15-25682 | LEVER | 46890- | |
| 11 | 144-15-25670 | BUSHING | 46890- | |
| 12 | 175-15-45660 | WASHER | 46890- | |
| 13 | 175-15-45650 | BOLT | 46890- | |
| 14 | 07000-72008 | O-RING (K2) | 46890- | |
| 15 | 01602-01030 | WASHER,SPRING | 46890- | |
| 16 | 01580-01008 | NUT | 46890- | |
| 17 | 144-15-25691 | PIN,ROLLER | 46890- | |
| 18 | 144-15-29120 | BEARING | 46890- | |
| 19 | 144-15-25710 | SPRING | 46890- | |
| 20 | 144-15-25592 | BOLT | 46890- | |
| 21 | 01602-01442 | WASHER,SPRING | 46890- | |
| 22 | 01641-01016 | WASHER | 46890- | |
| 23 | 04050-02018 | PIN,COTTER (K2) | 46890- | |
| 24 | 144-15-25820 | PLATE | 46890- |
