| Item | Part No. | Part Name | Qty | Serial No. |
| (144-15-00300) | TRANSMISSION ASS'Y | 46890- | ||

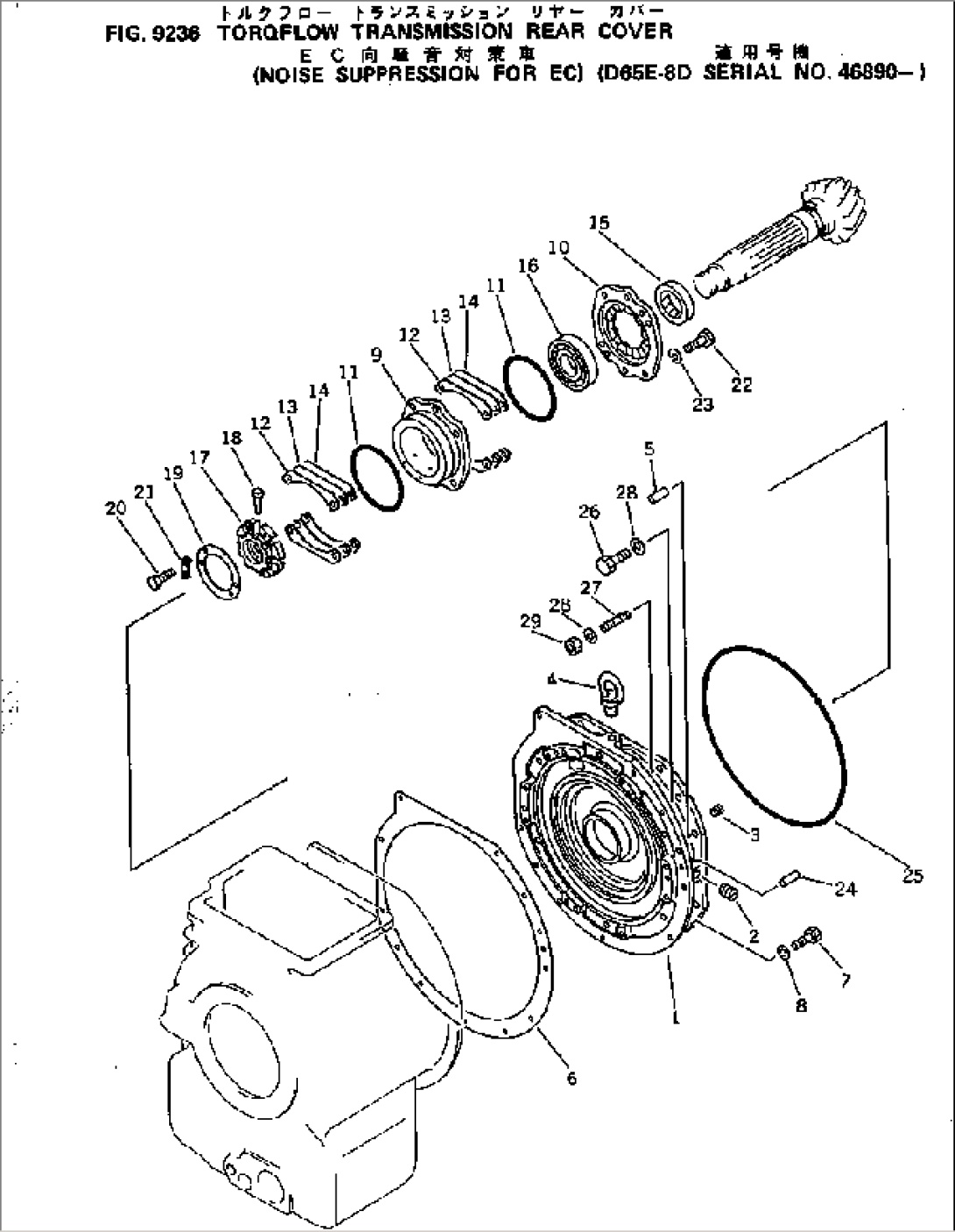

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.9235 TO 9245. | ||||
| 145-15-00231 | REAR COVER ASS'Y | 46890- | ||
| 1 | \6\ | COVER | 46890- | |
| 2 | 07043-00211 | PLUG | 46890- | |
| 3 | 07043-00108 | PLUG | 46890- | |
| 4 | 04530-02030 | BOLT | 46890- | |
| 5 | 04020-01638 | PIN | 46890- | |
| 6 | 144-15-21121 | GASKET (K2) | 46890- | |
| 7 | 01010-51240 | BOLT | 46890- | |
| 8 | 01602-21236 | WASHER,SPRING | 46890- | |
| 9 | 15B-15-13120 | CAGE | 46890- | |
| 10 | 15B-15-13130 | COVER | 46890- | |
| 11 | 07000-05160 | O-RING (K2) | 46890- | |
| 144-15-06011 | SHIM KIT (K2) | 46890- | ||
| 12 | 144-15-21260 | SHIM, 0.2MM (K2) | 46890- | |
| 13 | 144-15-21270 | SHIM, 1.0MM (K2) | 46890- | |
| 14 | 144-15-21280 | SHIM, 0.3MM (K2) | 46890- | |
| 15 | 07012-20090 | SEAL,OIL (K2) | 46890- | |
| 16 | 144-15-22810 | BEARING | 46890- | |
| 17 | 135-15-11634 | NUT | 46890- | |
| 18 | 145-15-31331 | PIN | 46890- | |
| 19 | 145-15-31340 | RING | 46890- | |
| 20 | 01010-30610 | BOLT | 46890- | |
| 21 | 145-15-31350 | LOCK (K2) | 46890- | |
| 22 | 01010-51460 | BOLT | 46890- | |
| 23 | 01602-21442 | WASHER,SPRING | 46890- | |
| 24 | 04020-01638 | PIN | 46890- | |
| 25 | 07000-05440 | O-RING (K2) | 46890- | |
| 26 | 01010-51845 | BOLT | 46890- | |
| 27 | 01120-51840 | STUD | 46890- | |
| 28 | 01643-31845 | WASHER | 46890- | |
| 29 | 01582-11815 | NUT | 46890- |
