| Item | Part No. | Part Name | Qty | Serial No. |

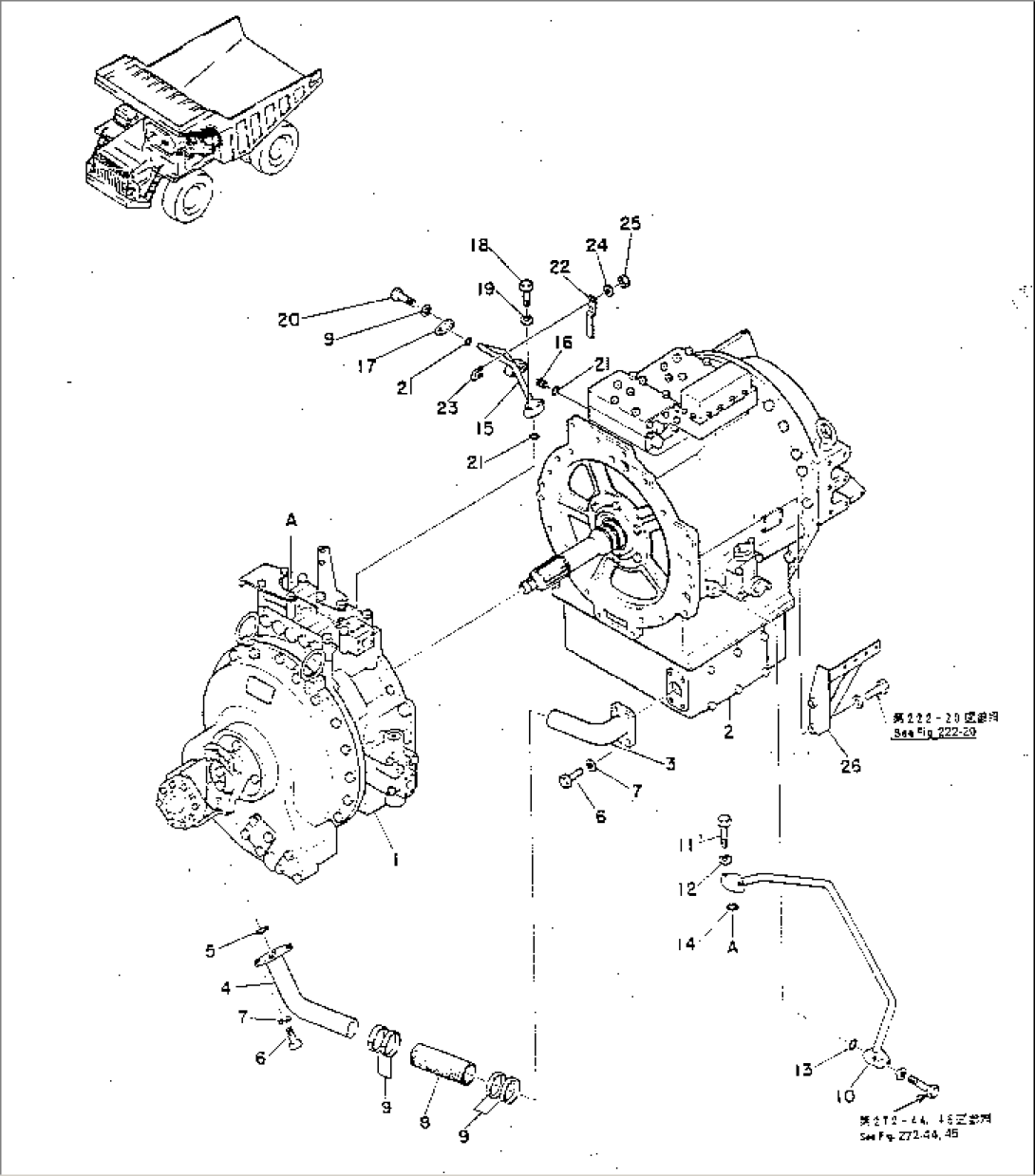

| 568-15-01000 | TORQFLOW ASS'Y | 1002-1054 | ||
| 1 | (568-13-11000) | TORQUE CONVERTER A. | 1002-1054 | |
| 2 | (568-15-00010) | TRANSMISSION ASS'Y | 1002-1054 | |
| 3 | 568-15-16120 | TUBE | 1002-1054 | |
| 4 | 568-15-16130 | TUBE | 1002-1054 | |
| 5 | 07000-02075 | O-RING (KIT) | 1002-1054 | |
| 6 | 01010-51240 | BOLT | 1002-1054 | |
| 7 | 01602-21236 | WASHER | 1002-1054 | |
| 8 | 07260-25822 | HOSE | 1002-@ | |
| 9 | 07281-00809 | CLAMP | 1002-1054 | |
| 10 | 568-15-16340 | TUBE | 1002-@ | |
| 11 | 01010-51055 | BOLT | 1002-1054 | |
| 12 | 01602-21030 | WASHER | 1002-1054 | |
| 13 | 07000-63035 | O-RING (KIT) | 1002-@ | |
| 14 | 07000-63025 | O-RING (KIT) | 1002-@ | |
| 15 | 568-15-16390 | TUBE | 1002-@ | |
| 16 | 568-15-13660 | STRAINER | 1002-@ | |
| 17 | 568-15-13680 | COVER | 1002-@ | |
| 18 | 01010-51045 | BOLT | 1002-1054 | |
| 19 | 01602-21030 | WASHER | 1002-1054 | |
| 20 | 01010-51060 | BOLT | 1002-1054 | |
| 21 | 07000-63022 | O-RING (KIT) | 1002-@ | |
| 22 | 568-15-16160 | BRACKET | 1002-@ | |
| 23 | 07283-11529 | CLIP | 1002-@ | |
| 24 | 01643-20823 | WASHER | 1002-1054 | |
| 25 | 01598-00809 | NUT | 1002-1054 | |
| 26 | 568-15-16150 | BRACKET | 1002-@ |
