| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| 567-13-31002 | TORQUE CONVERTER A. | 1061- | ||
| 567-13-31001 | TORQUE CONVERTER A. | 1001-1060 | ||

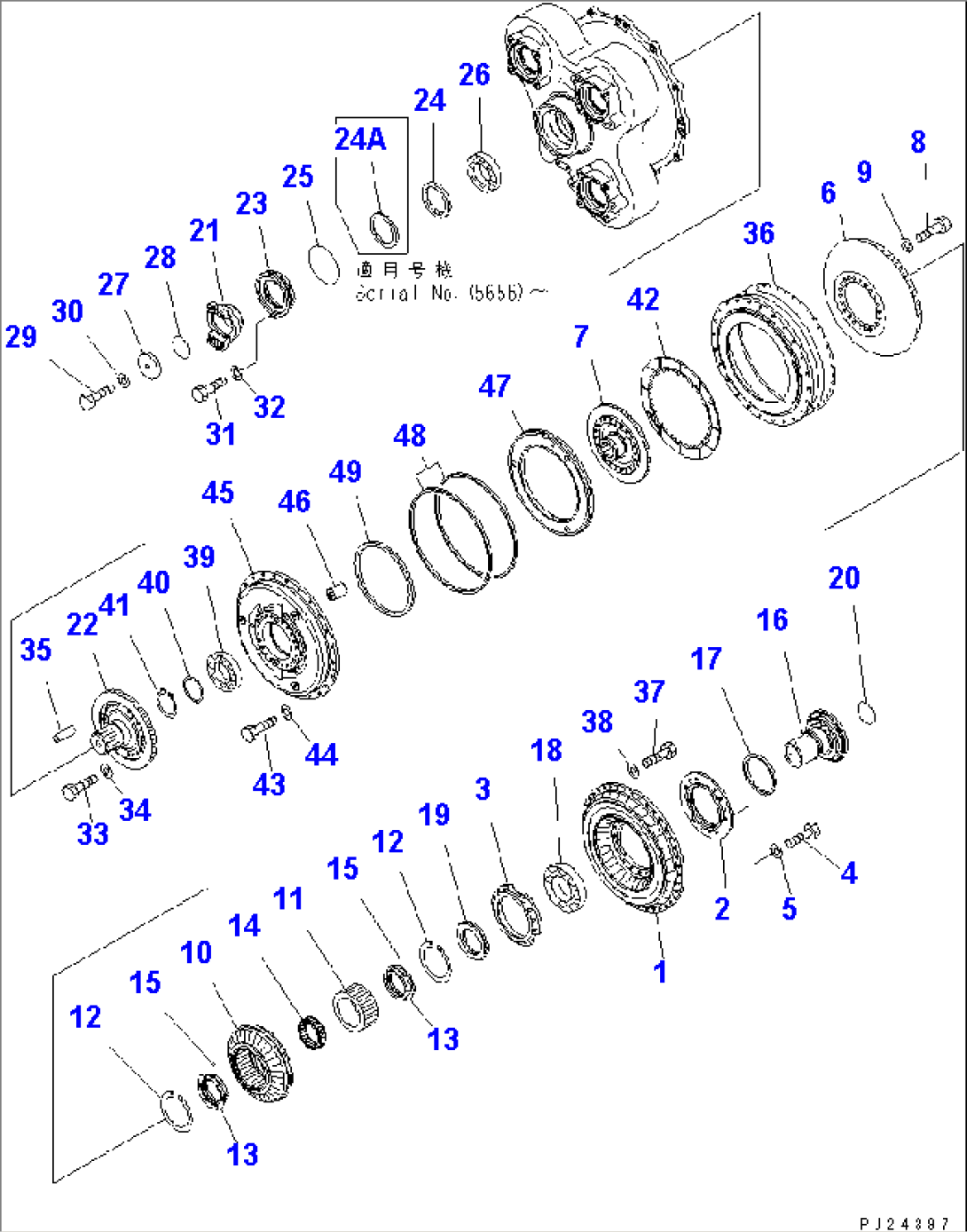

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3310-51A0 AND F3310-52A0. | ||||
| 1 | 711-85-11121 | PUMP | 1001- | |
| 2 | 23W-13-11140 | RETAINER | 1001- | |
| 3 | 23W-13-11190 | GUIDE | 1001- | |
| 4 | 01010-81045 | BOLT | 1001- | |
| 5 | 01643-31032 | WASHER | 1001- | |
| 6 | 23W-13-11520 | TURBINE | 1001- | |
| 7 | 567-13-31530 | BOSS | 1001- | |
| 8 | 01010-81030 | BOLT | 1001- | |
| 9 | 01643-31032 | WASHER | 1001- | |
| 10 | 23W-13-12110 | STATOR | 1001- | |
| 11 | 567-13-12121 | RACE,OUTER | 1001- | |
| 12 | 567-13-11170 | RING,SNAP | 1001- | |
| 13 | 567-13-12141 | BUSHING | 1001- | |
| 14 | 281-13-12161 | WHEEL | 1001- | |
| 15 | 04260-00635 | BALL | 1001- | |
| 16 | 711-85-12521 | SHAFT | 1001- | |
| 17 | 07018-31405 | RING,SEAL (K1) | 1001- | |
| 18 | 568-13-13351 | BEARING | (5350)- | |
| 568-13-13350 | BEARING | 1001-(5349) | ||
| 19 | 23W-13-12680 | NUT | 1001- | |
| 20 | 07000-72075 | O-RING (K1) | 1001- | |
| 21 | 567-13-39870 | COUPLING | (5656)- | |
| 711-53-Z1360 | FLANGE | 1001-(5655) | ||
| 22 | 567-13-31350 | SHAFT | 1001- | |
| 23 | 567-13-39370 | RETAINER | (5656)- | |
| 567-13-33370 | RETAINER | 1001-(5655) | ||
| 24 | 07012-50095 | SEAL,OIL (K1) | 1001- | |
| 24A | 425-15-28710 | SEAL,DUST (K1) | (5656)- | |
| 25 | 07000-72130 | O-RING (K1) | 1001- | |
| 26 | 711-53-11370 | BEARING | (105931)- | |
| 06031-00215 | BEARING | 1001-(105930) | ||
| 27 | 426-15-12160 | HOLDER | 1001- | |
| 28 | 07000-75065 | O-RING (K1) | 1001- | |
| 29 | 01050-61670 | BOLT | 1001- | |
| 30 | 01643-31645 | WASHER | 1001- | |
| 31 | 01010-80825 | BOLT | 1001- | |
| 32 | 01643-30823 | WASHER | 1001- | |
| 33 | 01010-81035 | BOLT | 1001- | |
| 34 | 01643-31032 | WASHER | 1001- | |
| 35 | 04020-01434 | PIN,DOWEL | 1001- | |
| 36 | 23W-13-11210 | CASE | 1001- | |
| 37 | 01010-80825 | BOLT | 1001- | |
| 38 | 01643-30823 | WASHER | 1001- | |
| 39 | 06040-06215 | BEARING | 1001- | |
| 40 | 711-47-11170 | PLATE | 1001- | |
| 41 | 04064-07525 | RING | 1001- | |
| 42 | 582-15-12811 | DISC | 1001- | |
| 43 | 01010-81030 | BOLT | 1001- | |
| 44 | 01643-31032 | WASHER | 1001- | |
| 23W-13-17110 | HOUSING ASS'Y | 1001- | ||
| 45 | \6\ | HOUSING | 1001- | |
| 46 | \6\ | PIN | 1001- | |
| 47 | 23W-13-17210 | PISTON | 1001- | |
| 48 | 569-15-12890 | RING,SEAL | 1001- | |
| 49 | 711-35-17151 | RING,SEAL | 1001- |
