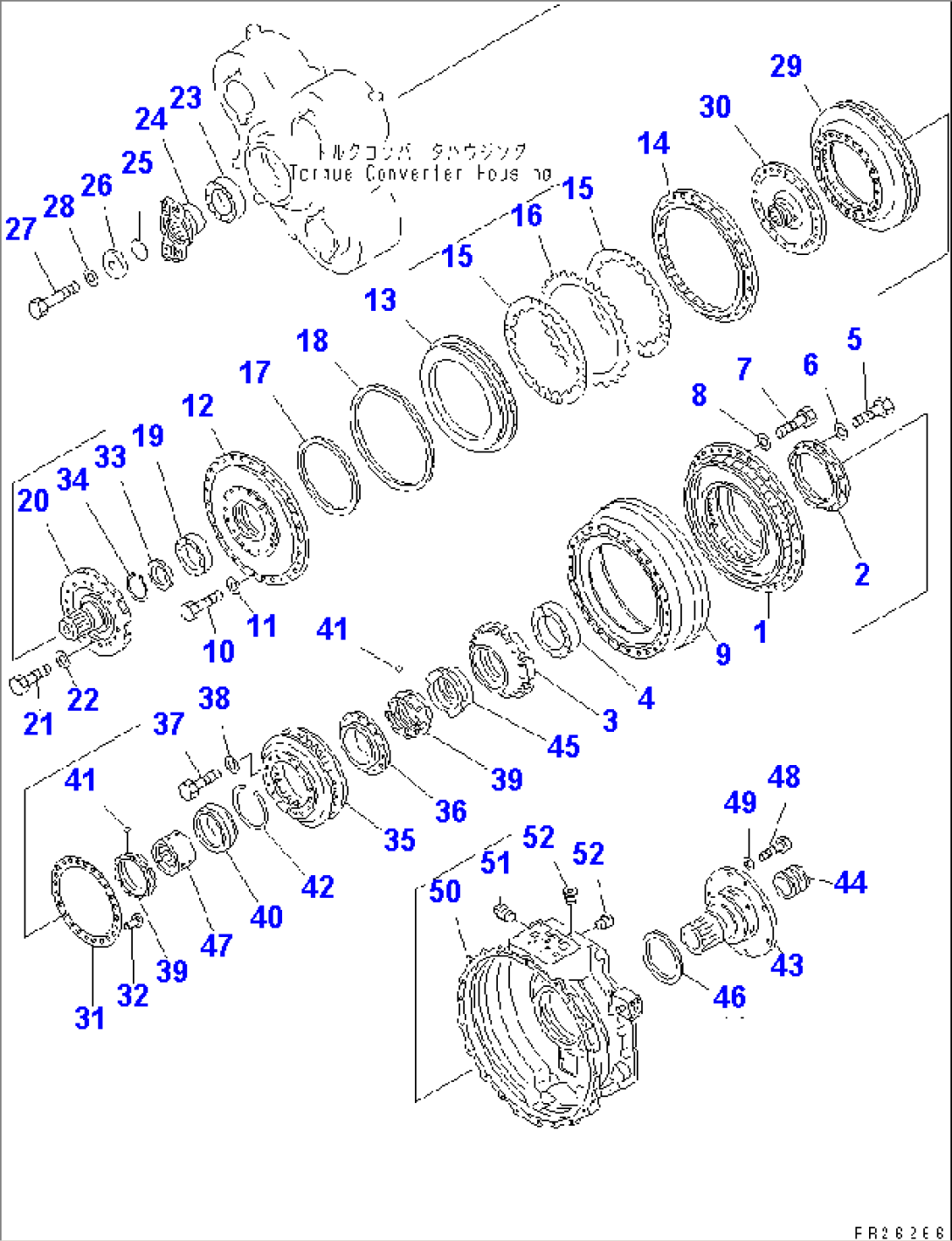

| Item | Part No. | Part Name | Qty | Serial No. |
| 711-35-00055 | TORQUE CONVERTER A. | (1554)- | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2231A TO 2241. | ||||
| 1 | 711-35-11120 | PUMP | 2001- | |
| 2 | 711-35-11140 | RETAINER | 2001- | |
| 3 | 711-35-11190 | GUIDE | 2001- | |
| 4 | 711-35-13350 | BEARING | 2001- | |
| 5 | 01010-61045 | BOLT | 2001- | |
| 6 | 01643-31032 | WASHER | 2001- | |
| 7 | 01010-61035 | BOLT | 2001- | |
| 8 | 01643-31032 | WASHER | 2001- | |
| 9 | 569-13-41211 | CASE | (1554)- | |
| 10 | 01010-61255 | BOLT | (1554)- | |
| 11 | 01643-31232 | WASHER | 2001- | |
| 12 | 569-13-47121 | HOUSING | (1554)- | |
| 13 | 569-13-47210 | PISTON | (1554)- | |
| 14 | 569-13-17171 | GEAR | (1554)- | |
| 15 | 195-15-32710 | DISC | (1554)- | |
| 16 | 281-15-12720 | PLATE | (1554)- | |
| 17 | 145-14-12750 | RING,SEAL | (1554)- | |
| 18 | 154-15-12750 | RING,SEAL | (1554)- | |
| 19 | 711-20-11550 | BEARING | 2001- | |
| 20 | 711-35-21351 | SHAFT | 2001- | |
| 21 | 01010-61645 | BOLT | 2001- | |
| 22 | 01643-31645 | WASHER | 2001- | |
| 23 | 281-13-31180 | BEARING | 2001- | |
| 24 | 568-13-11360 | COUPLING | 2001- | |
| 25 | 07000-65075 | O-RING (K2) | 2001- | |
| 26 | 711-35-21370 | HOLDER | 2001- | |
| 27 | 01010-61670 | BOLT | 2001- | |
| 28 | 01643-31645 | WASHER | 2001- | |
| 711-35-21512 | TURBINE ASS'Y | (1554)- | ||
| 29 | 711-35-21522 | TURBINE | (1554)- | |
| 30 | 711-35-21534 | BOSS | (1554)- | |
| 31 | 711-35-21543 | PLATE | (1554)- | |
| 32 | 711-35-21550 | RIVET | (1554)- | |
| 33 | 568-13-11770 | PLATE | 2001- | |
| 34 | 04064-08530 | RING | 2001- | |
| 35 | 711-35-12111 | STATOR | 2001- | |
| 36 | 711-35-12120 | RACE | 2001- | |
| 37 | 01010-61225 | BOLT | 2001- | |
| 38 | 01643-31232 | WASHER | 2001- | |
| 39 | 711-35-22141 | BUSHING | 2001- | |
| 40 | 711-35-12160 | WHEEL,FREE | 2001- | |
| 41 | 04260-00635 | BALL | 2001- | |
| 42 | 04077-00150 | RING,SNAP | 2001- | |
| 43 | 711-35-22521 | SHAFT | 2001- | |
| 44 | 711-35-22530 | SLEEVE | 2001- | |
| 45 | 711-35-12680 | NUT | 2001- | |
| 46 | 07018-31806 | RING,SEAL (K2) | 2001- | |
| 47 | 711-35-12130 | RACE | 2001- | |
| 48 | 01010-61230 | BOLT | 2001- | |
| 49 | 01643-31232 | WASHER | 2001- | |
| 50 | 711-35-23110 | HOUSING,REAR | 2001- | |
| 51 | 07042-70415 | PLUG | 2001- | |
| 52 | 07043-70415 | PLUG | 2001- |
