| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| 195-13-71001 | TORQUE CONVERTER A. | (104719)- | ||
| 195-13-71000 | TORQUE CONVERTER A. | 18001-(104718) | ||

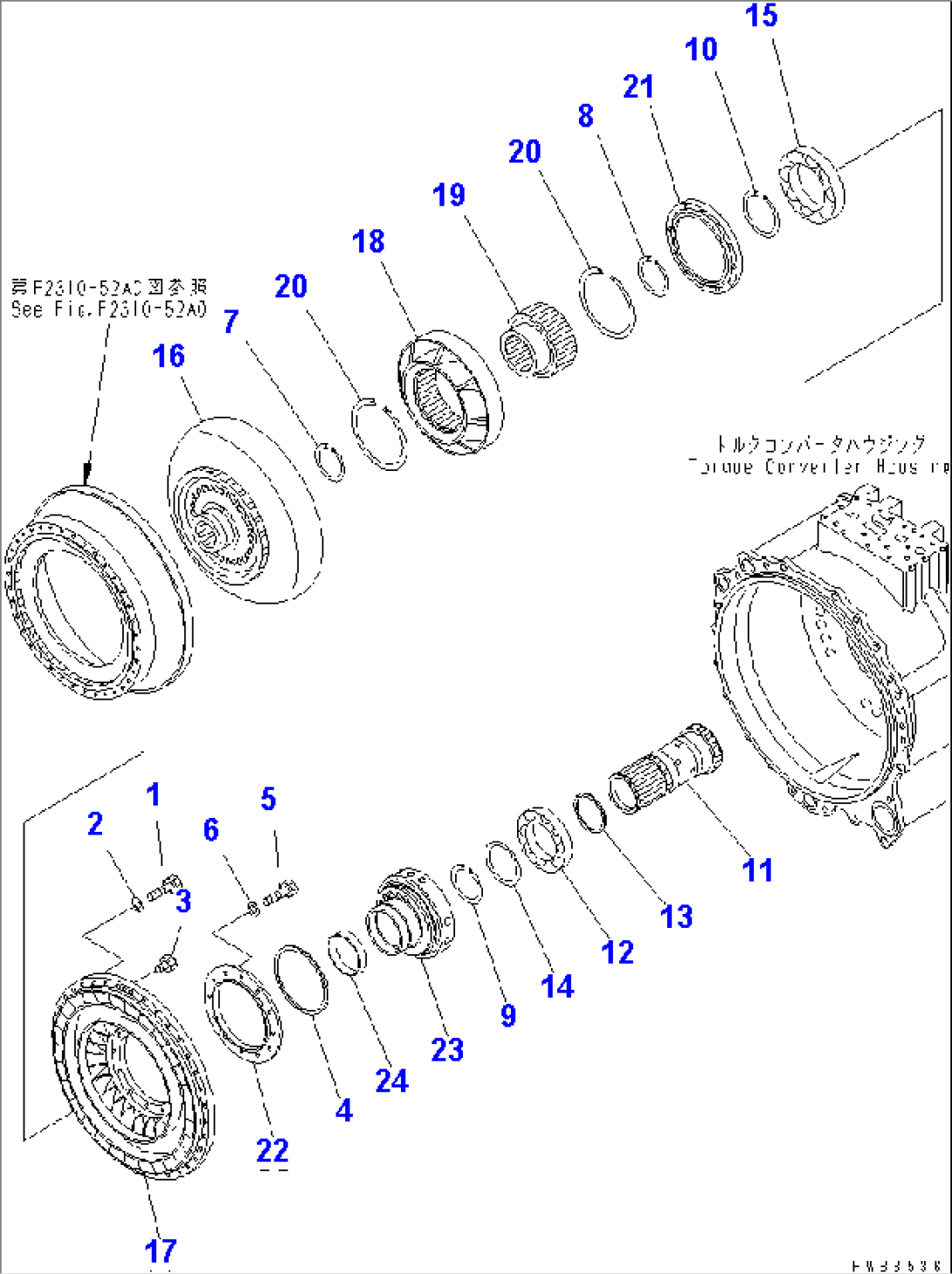

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2310-51A0 TO F2310-59A0. | ||||
| 1 | 01010-81035 | BOLT | 18001- | |
| 2 | 01643-31032 | WASHER | 18001- | |
| 3 | 07040-11007 | PLUG | 18001- | |
| 4 | 07018-31907 | RING,SEAL (K1) | 18001- | |
| 5 | 01010-81050 | BOLT | 18001- | |
| 6 | 01643-31032 | WASHER | 18001- | |
| 7 | 04070-00105 | RING | 18001- | |
| 8 | 04070-00110 | RING | 18001- | |
| 9 | 04070-00110 | RING | 18001- | |
| 10 | 04070-00130 | RING | 18001- | |
| 11 | 711-67-18520 | SHAFT,STATOR | 18001- | |
| 12 | 06040-06022 | BEARING | 18001- | |
| 13 | 07018-31104 | RING,SEAL (K1) | 18001- | |
| 14 | 711-67-18770 | SPACER | 18001- | |
| 15 | 711-66-11160 | BEARING | 18001- | |
| 16 | 195-13-71510 | TURBINE,COMPLETE | 18001- | |
| 17 | 711-66-11122 | PUMP | 18001- | |
| 18 | 711-60-22120 | STATOR | 18001- | |
| 19 | 711-60-22130 | RACE | 18001- | |
| 20 | 04071-00180 | RING | 18001- | |
| 21 | 711-66-11190 | GUIDE | 18001- | |
| 22 | 195-13-71140 | RETAINER | 18001- | |
| 23 | 711-67-12520 | SHAFT,PUMP | 18001- | |
| 24 | 711-66-12530 | BUSHING | 18001- |
