| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| 711-80-00020 | TORQUE CONVERTER A. | 10001- | ||

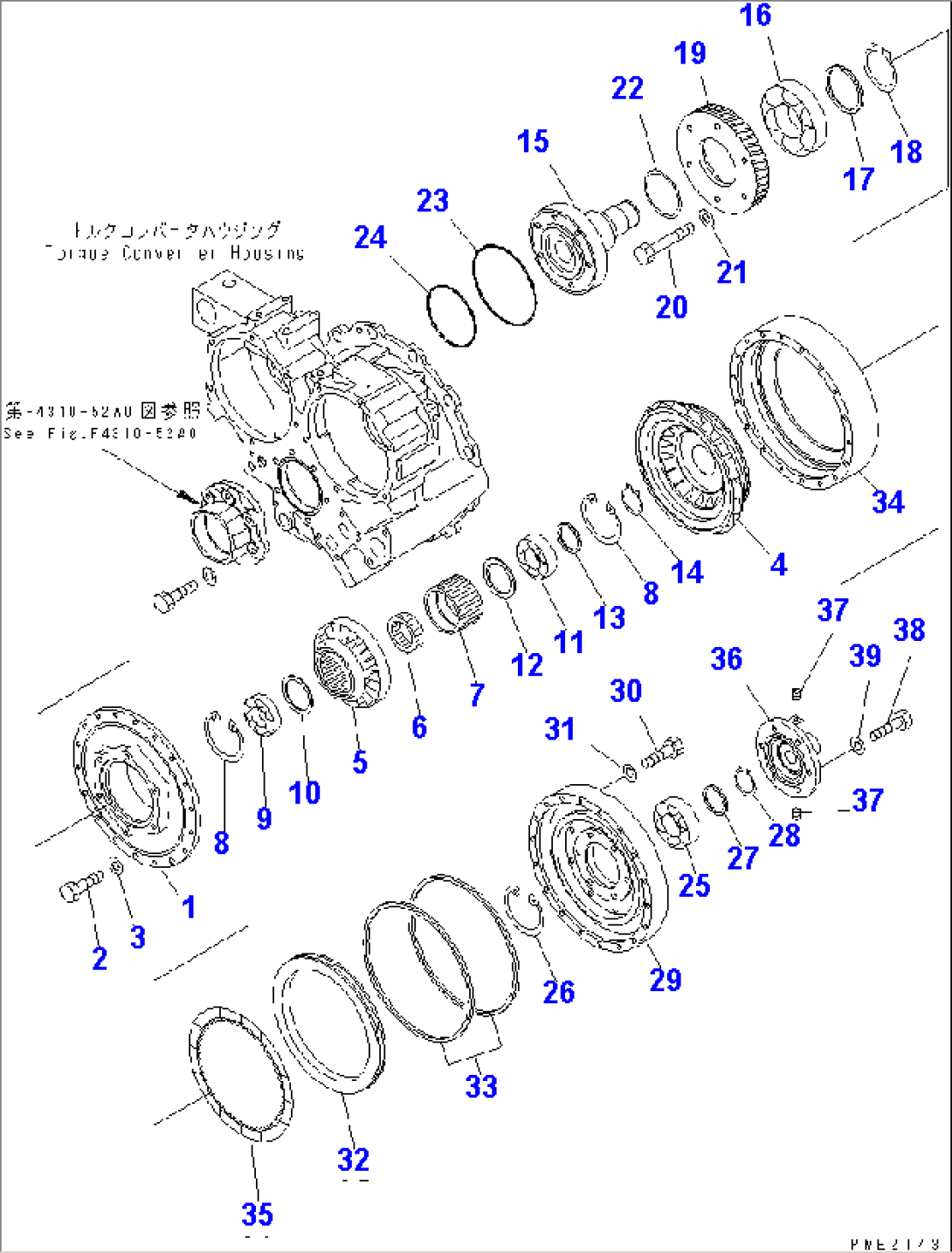

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4310-51A0 TO F4310-55A0. | ||||
| 1 | 711-80-11120 | PUMP | 10001- | |
| 2 | 01010-80825 | BOLT | 10001- | |
| 3 | 01643-30823 | WASHER | 10001- | |
| 4 | 711-80-11510 | TURBINE COMPLETE | 10001- | |
| 5 | 711-80-12110 | STATOR | 10001- | |
| 6 | 711-80-12160 | WHEEL,FREE | 10001- | |
| 7 | 711-80-12120 | RACE | 10001- | |
| 8 | 04065-08530 | RING,SNAP | 10001- | |
| 9 | 06040-06910 | BEARING,BALL | 10001- | |
| 10 | 711-80-12210 | SPACER | 10001- | |
| 11 | 06040-06009 | BEARING,BALL | 10001- | |
| 12 | 711-80-12220 | SPACER | 10001- | |
| 13 | 565-14-26360 | SPACER | 10001- | |
| 14 | 04064-04518 | RING,SNAP | 10001- | |
| 15 | 711-80-12510 | SHAFT COMPLETE | 10001- | |
| 16 | 06040-06215 | BEARING,BALL | 10001- | |
| 17 | 711-54-11730 | SPACER | 10001- | |
| 18 | 04064-07525 | RING,SNAP | 10001- | |
| 19 | 711-80-11341 | GEAR | 10001- | |
| 20 | 01010-81055 | BOLT | 10001- | |
| 21 | 01643-31032 | WASHER | 10001- | |
| 22 | 07018-30904 | RING,SEAL | 10001- | |
| 23 | 07000-72145 | O-RING (K1) | 10001- | |
| 24 | 07000-72105 | O-RING (K1) | 10001- | |
| 25 | 06040-06209 | BEARING,BALL | 10001- | |
| 26 | 04065-08530 | RING,SNAP | 10001- | |
| 27 | 565-14-26360 | SPACER | 10001- | |
| 28 | 04064-04518 | RING,SNAP | 10001- | |
| 29 | 711-80-17111 | HOUSING COMPLETE | 10001- | |
| 30 | 01010-80855 | BOLT | 10001- | |
| 31 | 01643-30823 | WASHER | 10001- | |
| 32 | 711-80-17210 | PISTON | 10001- | |
| 33 | 154-15-49210 | RING,SEAL (K1) | 10001- | |
| 34 | 711-80-11210 | CASE | 10001- | |
| 35 | 23S-15-12720 | DISC | 10001- | |
| 711-80-00120 | PILOT ASS'Y | 10001- | ||
| 36 | \6\ | PILOT | 10001- | |
| 37 | 07043-70108 | PLUG | (2362)- | |
| 37 | 145-14-11320 | PLUG | 10001-(2361) | |
| 38 | 01010-81030 | BOLT | 10001- | |
| 39 | 01643-31032 | WASHER | 10001- |
