| Item | Part No. | Part Name | Qty | Serial No. |

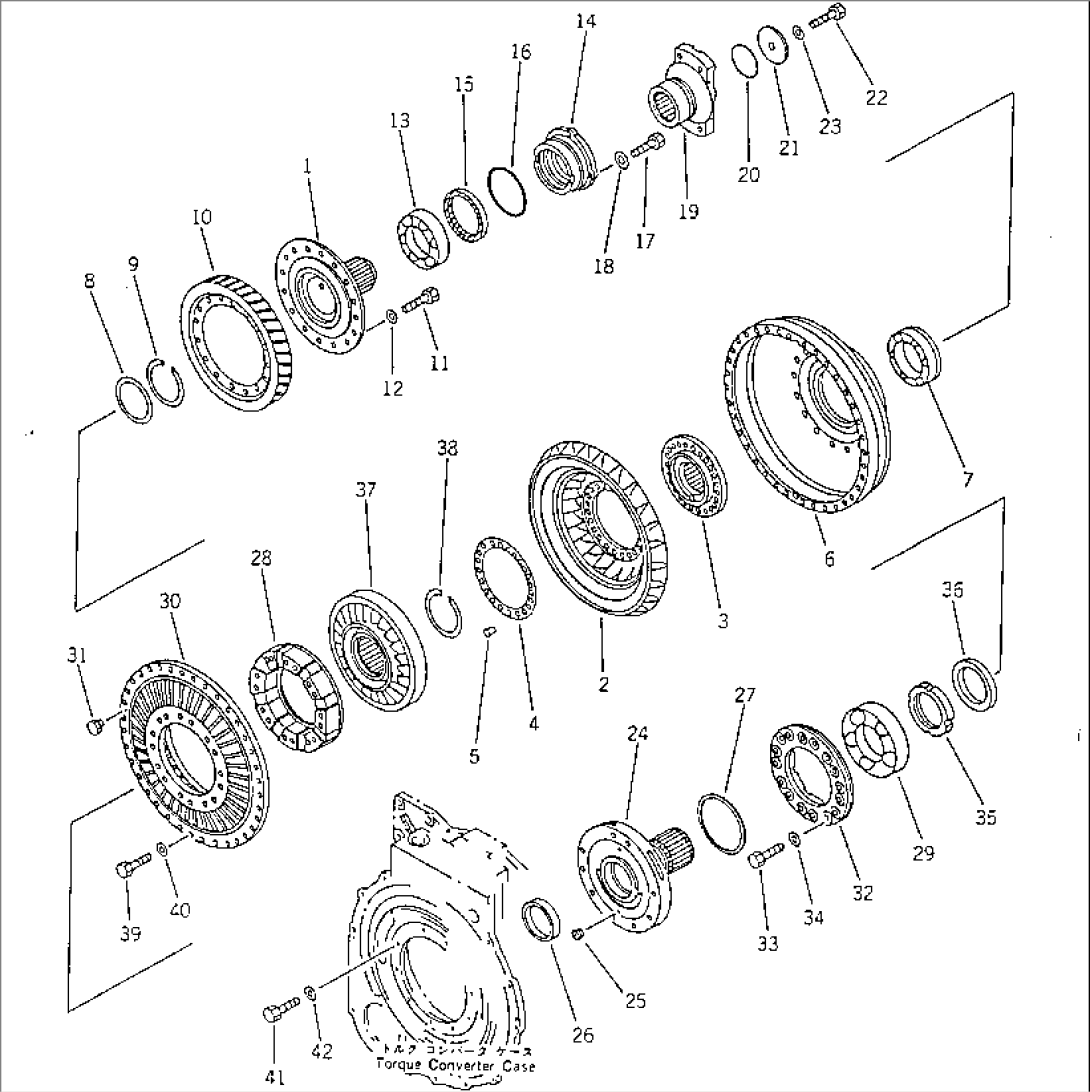

| (428-13-00050) | TORQUE CONVERTER A. | 10001- | ||
| 1 | 428-13-11350 | SHAFT | 10001- | |
| 428-13-11510 | TURBINE ASS'Y | 10001- | ||
| 2 | \6\ | TURBINE | 10001- | |
| 3 | \6\ | BOSS | 10001- | |
| 4 | \6\ | PLATE | 10001- | |
| 5 | \6\ | RIVET | 10001- | |
| 6 | 428-13-11210 | CASE | 10001- | |
| 7 | 711-62-21550 | BEARING | 10001- | |
| 8 | 711-60-11770 | PLATE | 10001- | |
| 9 | 04070-00105 | RING,SNAP | 10001- | |
| 10 | 711-56-31342 | GEAR | 10001- | |
| 11 | 01010-61655 | BOLT | 10001- | |
| 12 | 01643-31645 | WASHER | 10001- | |
| 13 | 711-56-31370 | BEARING | 10001- | |
| 14 | 711-56-33330 | RETAINER | 10001- | |
| 15 | 07012-40110 | SEAL,OIL (K1) | 10001- | |
| 16 | 07000-45145 | O-RING (K1) | 10001- | |
| 17 | 07372-21030 | BOLT | 10001- | |
| 18 | 01643-31032 | WASHER | 10001- | |
| 19 | 711-56-31360 | FLANGE | 10001- | |
| 20 | 07000-65075 | O-RING (K1) | 10001- | |
| 21 | 711-35-21370 | HOLDER | 10001- | |
| 22 | 01010-61675 | BOLT | 10001- | |
| 23 | 01643-31645 | WASHER | 10001- | |
| 24 | 428-13-12521 | SHAFT | 10001- | |
| 25 | 07043-70211 | PLUG | 10001- | |
| 26 | 428-13-12530 | SLEEVE | 10001- | |
| 27 | 07018-31706 | RING,SEAL | 10001- | |
| 28 | 428-13-11191 | GUIDE | 10001- | |
| 29 | 711-35-13350 | BEARING | 10001- | |
| 30 | 428-13-11121 | PUMP | 10001- | |
| 31 | 07040-11007 | PLUG | 10001- | |
| 32 | 428-13-11140 | RETAINER | 10001- | |
| 33 | 01010-61045 | BOLT | 10001- | |
| 34 | 01643-31032 | WASHER | 10001- | |
| 35 | 711-56-32680 | LOCK NUT | 10001- | |
| 36 | 428-13-11770 | PLATE | 10001- | |
| 37 | 428-13-12111 | STATOR | 10001- | |
| 38 | 04064-09530 | RING,SNAP | 10001- | |
| 39 | 01010-61035 | BOLT | 10001- | |
| 40 | 01643-31032 | WASHER | 10001- | |
| 41 | 01010-61235 | BOLT | 10001- | |
| 42 | 01643-31232 | WASHER | 10001- |
