| Item | Part No. | Part Name | Qty | Serial No. |

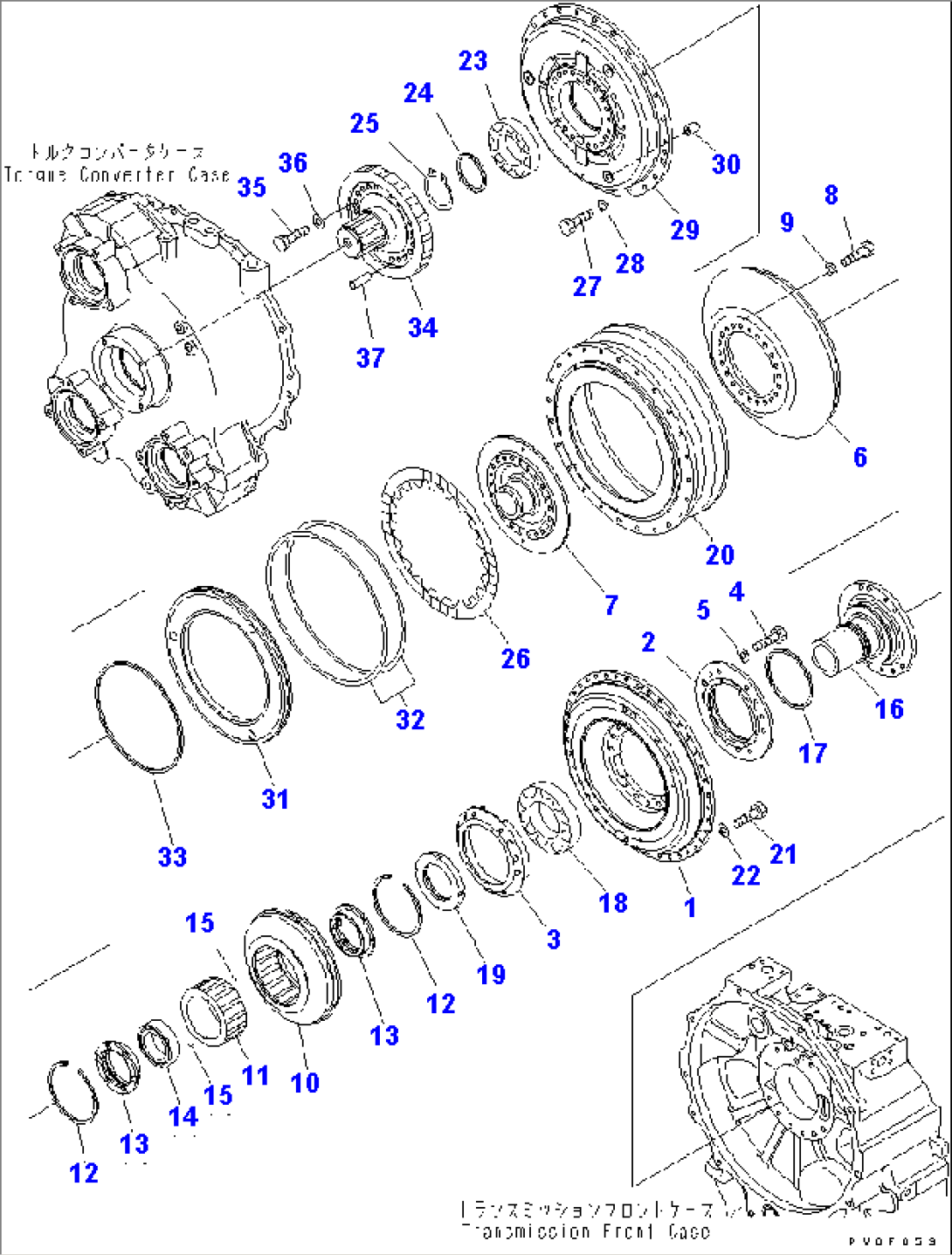

| (56D-13-10006) | TRANSMISSION,(SEE FIG. F3300-01A0) | A10001- | ||
| 56D-13-11001 | TORQUE CONVERTER A. | A10001- | ||
| 1 | 711-85-11121 | PUMP | A10001- | |
| 2 | 23W-13-11140 | RETAINER | A10001- | |
| 3 | 23W-13-11190 | GUIDE | A10001- | |
| 4 | 01010-81045 | BOLT | A10001- | |
| 5 | 01643-31032 | WASHER | A10001- | |
| 6 | 23W-13-11520 | TURBINE | A10001- | |
| 7 | 567-13-31530 | BOSS | A10001- | |
| 8 | 01010-81030 | BOLT | A10001- | |
| 9 | 01643-31032 | WASHER | A10001- | |
| 10 | 23W-13-12110 | STATOR | A10001- | |
| 11 | 567-13-12121 | RACE | A10001- | |
| 12 | 567-13-11170 | RING | A10001- | |
| 13 | 567-13-12141 | BUSHING | A10001- | |
| 14 | 281-13-12161 | WHEEL | A10001- | |
| 15 | 04260-00635 | BALL | A10001- | |
| 16 | 56D-13-12520 | SHAFT,STATOR | A10001- | |
| 17 | 07018-31405 | RING,SEAL (K1) | A10001- | |
| 18 | 568-13-13351 | BEARING | A10001- | |
| 19 | 23W-13-12680 | NUT | A10001- | |
| 20 | 23W-13-11210 | CASE | A10001- | |
| 21 | 01010-80825 | BOLT | A10001- | |
| 22 | 01643-30823 | WASHER | A10001- | |
| 23 | 06040-06215 | BEARING | A10001- | |
| 24 | 711-47-11170 | PLATE | A10001- | |
| 25 | 04064-07525 | RING | A10001- | |
| 26 | 582-15-12811 | DISC | A10001- | |
| 27 | 01010-81030 | BOLT | A10001- | |
| 28 | 01643-31032 | WASHER | A10001- | |
| 23W-13-17110 | HOUSING ASS'Y | A10001- | ||
| 29 | \6\ | HOUSING | A10001- | |
| 30 | 711-61-67130 | PIN | A10001- | |
| 31 | 23W-13-17210 | PISTON | A10001- | |
| 32 | 569-15-12890 | RING,SEAL (K1) | A10001- | |
| 33 | 711-35-17151 | RING | A10001- | |
| 34 | 56D-13-11352 | SHAFT | A10001- | |
| 35 | 01010-81040 | BOLT | A10001- | |
| 36 | 01643-31032 | WASHER | A10001- | |
| 37 | 04020-01434 | PIN | A10001- |
