| Item | Part No. | Part Name | Qty | Serial No. |
| (19M-13-21002) | TORQUE CONVERTER A. | 10101- | ||

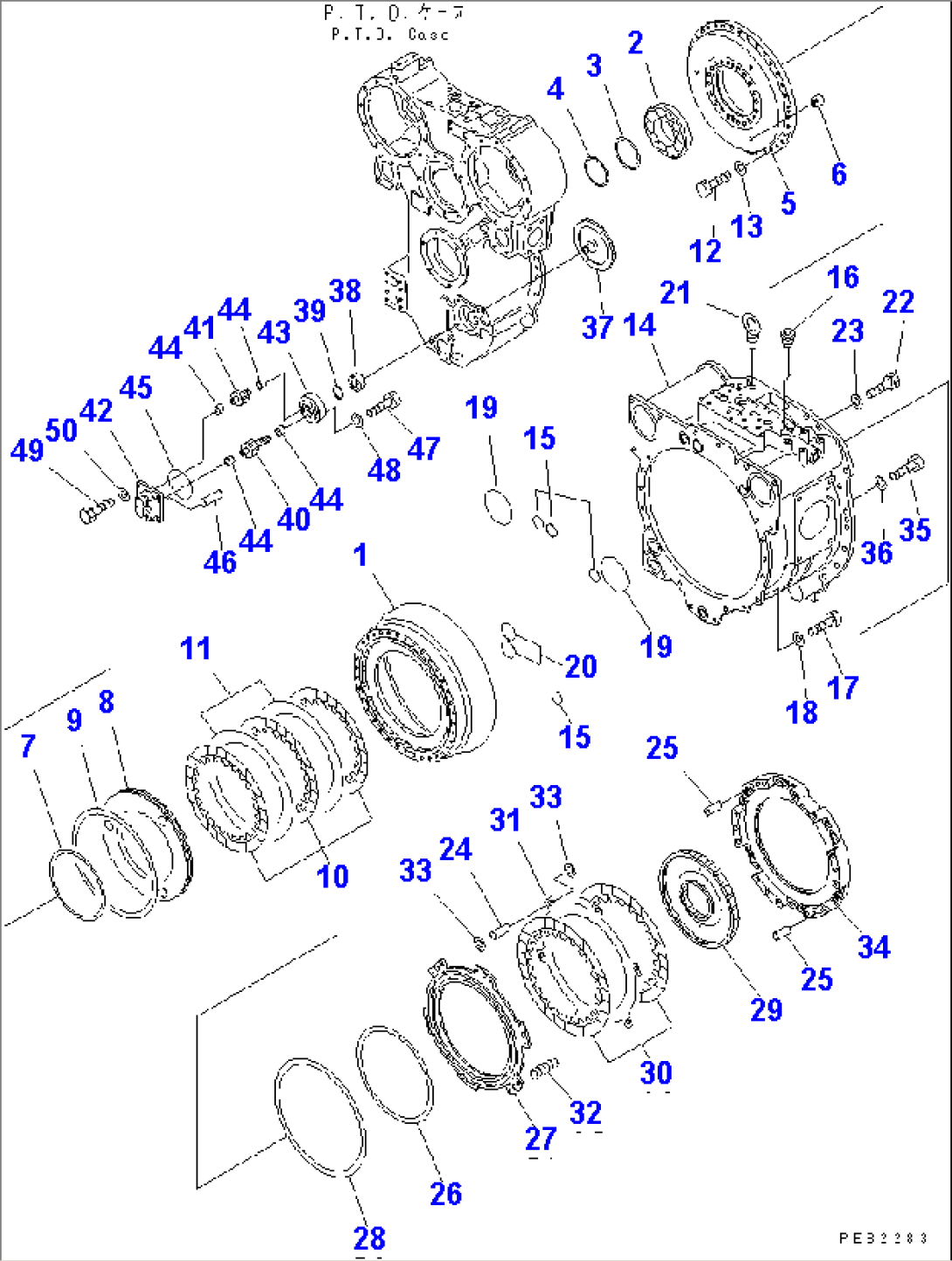

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2310-51A0 TO F2310-57A0. | ||||
| 1 | 19M-13-21210 | CASE | 10101- | |
| 2 | 19M-13-11562 | BEARING | (10070)- | |
| 19M-13-11561 | BEARING,BALL | 10101-(10069) | ||
| 3 | 711-23-11770 | PLATE | 10101- | |
| 4 | 04070-00110 | RING,SNAP | 10101- | |
| 19M-13-27110 | HOUSING ASS'Y | 10101- | ||
| 5 | \6\ | HOUSING | 10101- | |
| 6 | \6\ | PIN | 10101- | |
| 7 | 711-24-17250 | RING,SEAL | 10101- | |
| 8 | 19M-13-27210 | PISTON | 10101- | |
| 9 | 198-15-29220 | RING,SEAL | 10101- | |
| 10 | 198-15-22810 | DISC | 10101- | |
| 11 | 427-15-12730 | PLATE | 10101- | |
| 12 | 01010-81240 | BOLT | 10101- | |
| 13 | 01643-31232 | WASHER | 10101- | |
| 14 | 19M-13-23110 | HOUSING,REAR | 10101- | |
| 15 | 07000-73045 | O-RING (K1) | 10101- | |
| 16 | 07043-71019 | PLUG | 10101- | |
| 17 | 01010-61645 | BOLT | 10101- | |
| 18 | 01643-31645 | WASHER | 10101- | |
| 19 | 07000-72130 | O-RING (K1) | 10101- | |
| 20 | 07000-72065 | O-RING (K1) | 10101- | |
| 21 | 04530-02438 | BOLT | 10101- | |
| 22 | 01010-81030 | BOLT | 10101- | |
| 23 | 01643-31032 | WASHER | 10101- | |
| 24 | 711-66-18130 | PIN | 10101- | |
| 25 | 566-15-11260 | PIN,DOWEL | 10101- | |
| 26 | 568-15-12830 | RING,SEAL (K1) | 10101- | |
| 27 | 562-15-12761 | PISTON | 10101- | |
| 28 | 195-15-29220 | RING,SEAL (K1) | 10101- | |
| 29 | 19M-13-28310 | GEAR | 10101- | |
| 30 | 19M-15-12721 | DISC | 10101- | |
| 31 | 568-15-12721 | PLATE | 10101- | |
| 32 | 711-66-18650 | SPRING | 10101- | |
| 33 | 711-66-18661 | SPRING | 10101- | |
| 34 | 19M-13-28120 | HOUSING | 10101- | |
| 35 | 01010-61680 | BOLT | 10101- | |
| 36 | 01643-31645 | WASHER | 10101- | |
| 37 | 19M-13-14410 | GEAR | 10101- | |
| 38 | 19M-13-23370 | BEARING | (10071)- | |
| 06030-05206 | BEARING,BALL | 10101-(10070) | ||
| 39 | 04064-03015 | RING,SNAP | 10101- | |
| 198-13-13500 | PUMP ASS'Y | 10101- | ||
| 40 | 195-13-13510 | GEAR,DRIVE | 10101- | |
| 41 | 195-13-13520 | GEAR,DRIVE | 10101- | |
| 42 | 198-13-13530 | CASE | 10101- | |
| 43 | 198-13-13540 | COVER | 10101- | |
| 44 | 195-13-13550 | BEARING,NEEDLE | 10101- | |
| 45 | 07000-72115 | O-RING | 10101- | |
| 46 | 04020-00820 | PIN,DOWEL | 10101- | |
| 47 | 01010-80830 | BOLT | 10101- | |
| 48 | 01602-20825 | WASHER | 10101- | |
| 49 | 01010-81235 | BOLT | 10101- | |
| 50 | 01643-31232 | WASHER | 10101- |
