| Item | Part No. | Part Name | Qty | Serial No. |
| (566-13-81000) | TORQUE CONVERTER A. | 7001- | ||

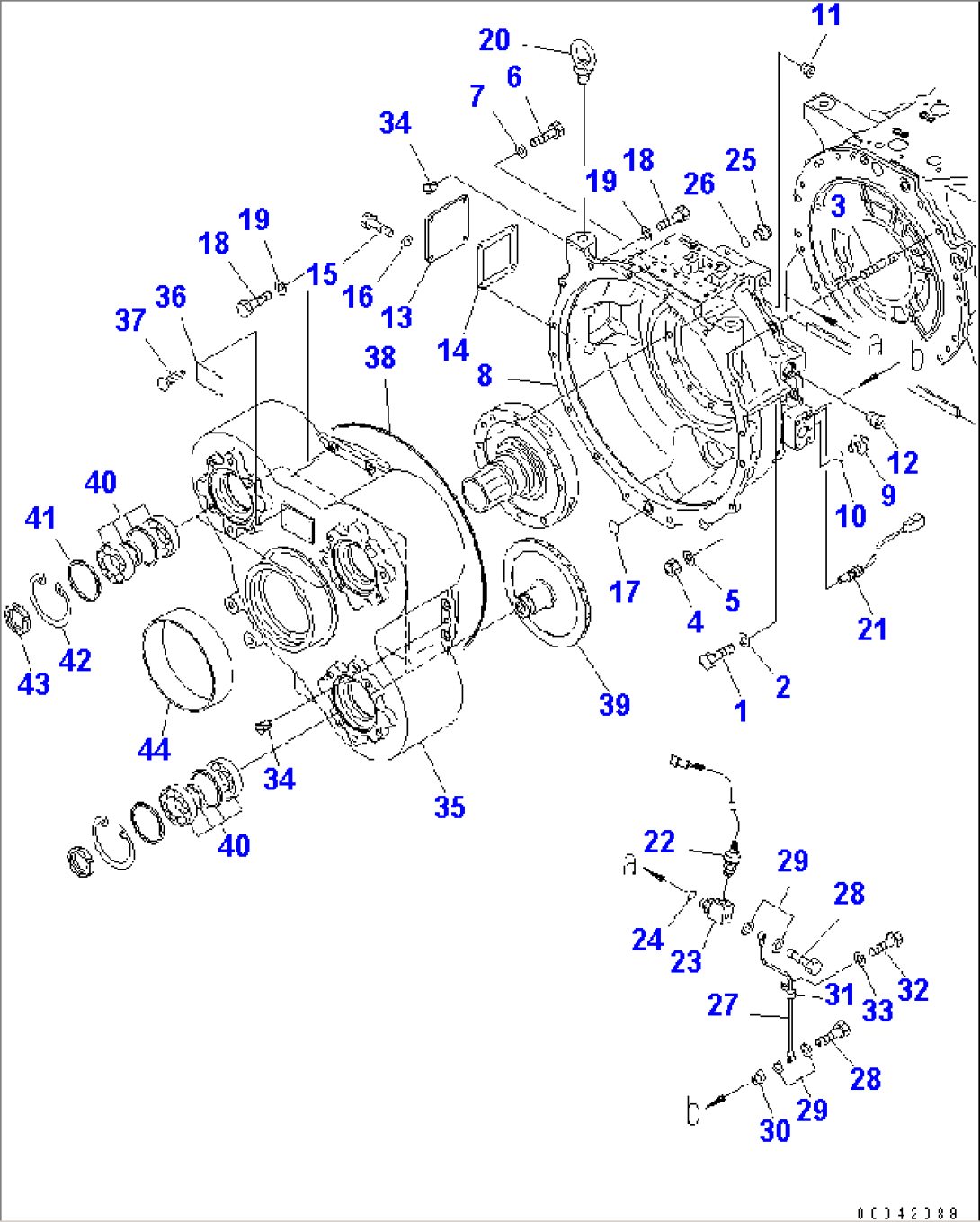

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3310-51A0 TO F3310-53A0. | ||||
| 1 | 01010-81245 | BOLT | 7001- | |
| 2 | 01643-31232 | WASHER | 7001- | |
| 3 | 01144-51240 | STUD | 7001- | |
| 4 | 01580-11210 | NUT | 7001- | |
| 5 | 01643-31232 | WASHER | 7001- | |
| 6 | 01010-81235 | BOLT | 7001- | |
| 7 | 01643-31232 | WASHER | 7001- | |
| 566-13-01130 | REAR HOUSING ASS'Y | 7001- | ||
| 8 | \6\ | HOUSING,REAR | 7001- | |
| 9 | 708-8E-16150 | PLUG | 7001- | |
| 10 | 07002-61023 | O-RING (K1) | 7001- | |
| 11 | 07043-70415 | PLUG | 7001- | |
| 12 | 07043-70617 | PLUG | 7001- | |
| 13 | 135-13-23220 | COVER | 7001- | |
| 14 | 135-13-23232 | GASKET (K1) | 7001- | |
| 15 | 01010-81025 | BOLT | 7001- | |
| 16 | 01643-31032 | WASHER | 7001- | |
| 17 | 07000-73028 | O-RING (K1) | 7001- | |
| 18 | 01010-81235 | BOLT | 7001- | |
| 19 | 01643-31232 | WASHER | 7001- | |
| 20 | 04530-12438 | BOLT,EYE | 7001- | |
| 21 | 7861-93-3320 | SENSOR | 7001- | |
| 22 | 421-06-35121 | SENSOR,PRESSUE | 7001- | |
| 23 | 566-13-86911 | ELBOW | 7001- | |
| 24 | 07002-62034 | O-RING (K1) | 7001- | |
| 25 | 723-11-18190 | PLUG | 7001- | |
| 26 | 07002-61023 | O-RING (K1) | 7001- | |
| 27 | 566-13-88191 | TUBE | 7001- | |
| 28 | 07206-30710 | BOLT | 7001- | |
| 29 | 07005-01012 | SEAL, WASHER (K1) | 7001- | |
| 30 | 281-15-12790 | SCREW | 7001- | |
| 31 | 195-22-12330 | CLIP | 7001- | |
| 32 | 01010-81016 | BOLT | 7001- | |
| 33 | 01643-31032 | WASHER | 7001- | |
| 34 | 07049-01215 | PLUG | 7001- | |
| 35 | 566-13-83131 | HOUSING,FRONT | 7001- | |
| 36 | (\7\09607-05080) | PLATE, NAME,LIMITED SUPPLY | 7001- | |
| 37 | 04418-13060 | SCREW | 7001- | |
| 38 | 566-13-43140 | O-RING (K1) | 7001- | |
| 39 | 566-13-44210 | GEAR,DRIVE | 7001- | |
| 40 | 711-35-14230 | BEARING | 7001- | |
| 41 | 711-35-14120 | PLATE | 7001- | |
| 42 | 04065-09530 | RING,SNAP | 7001- | |
| 43 | 01530-04812 | NUT | 7001- | |
| 44 | 566-13-83381 | BUSHING | 7001- |
