| Item | Part No. | Part Name | Qty | Serial No. |
| (154-13-00202) | TORQUE CONVERTER A. | 35925- | ||
| \0\154-13-00201 | TORQUE CONVERTER A. | 35127-35924 | ||
| (154-13-00200) | TORQUE CONVERTER A. | 35001-35126 | ||

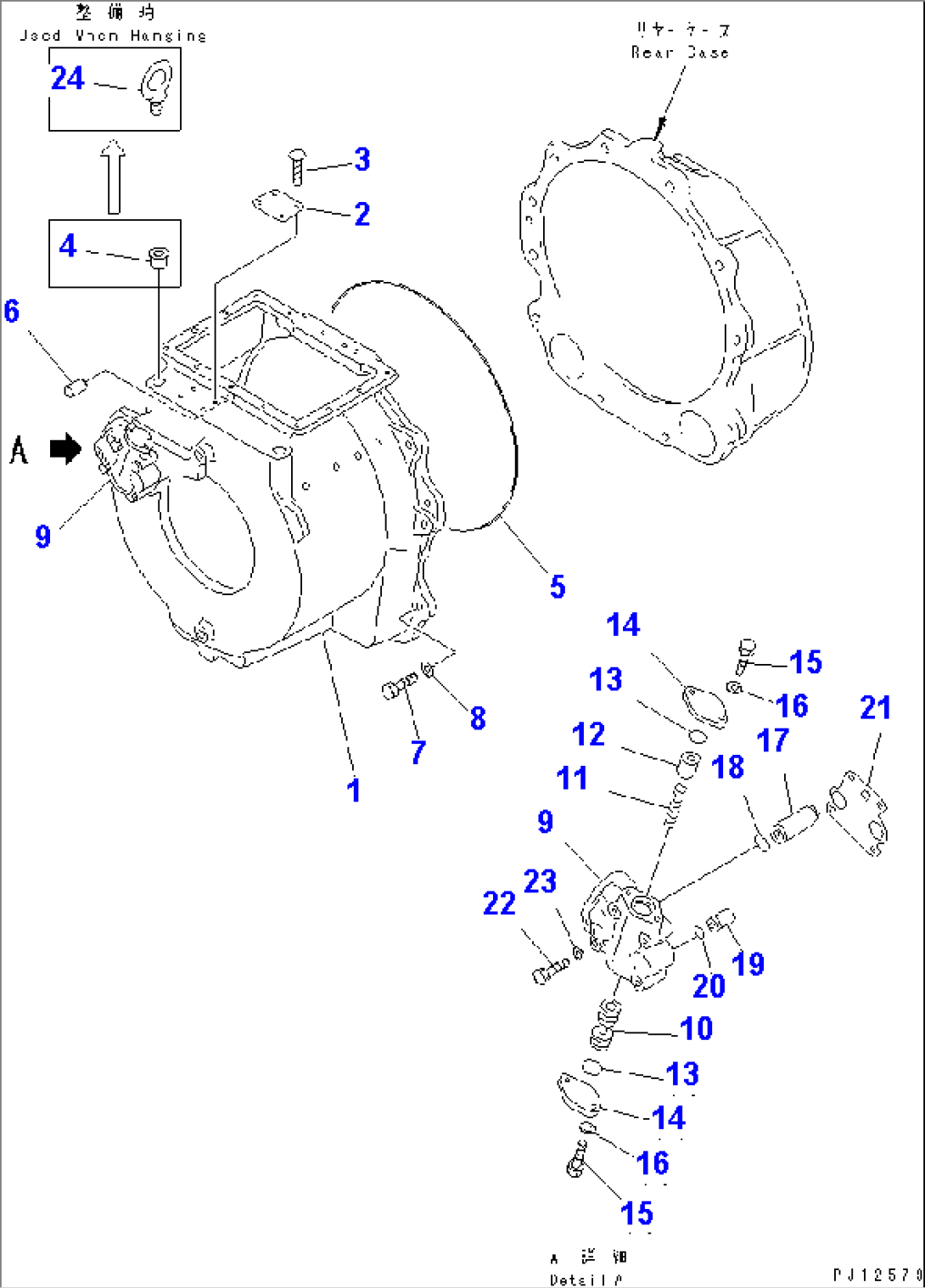

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2301 AND 2302. | ||||
| 1 | 154-13-41124 | PUMP | 35127- | |
| \3\154-13-41122 | PUMP | 35001-35126 | ||
| (154-13-41124{154-13-41142¤} | ||||
| 01010-61040(12)) | ||||
| 2 | 154-13-41143 | GEAR | (2080)- | |
| 154-13-41142 | GEAR | 35127-(2079) | ||
| 154-13-41141 | GEAR | 35001-35126 | ||
| 3 | 154-13-41160 | BEARING | 35001- | |
| 4 | 154-13-51180 | PLATE | 35925- | |
| 154-13-41180 | PLATE | 35001-35924 | ||
| 5 | 01010-61040 | BOLT | 35127- | |
| 01010-61035 | BOLT | 35001-35126 | ||
| 6 | 154-13-41150 | PLATE,LOCK (KIT) | 35001-35924 | |
| 7 | 01010-61035 | BOLT | 35001- | |
| 8 | 01643-31032 | WASHER | 35001- | |
| 9 | 07040-11007 | PLUG | 35001- | |
| 154-13-00011 | CASE ASS'Y | 35001- | ||
| 10 | 234-13-11211 | CASE | 35001- | |
| 11 | 175-13-21220 | GEAR | 35001- | |
| 12 | 01010-61230 | BOLT | 35001- | |
| 13 | 01643-31232 | WASHER | 35001- | |
| 14 | 154-13-11240 | BEARING | 35001- | |
| 15 | 154-13-51250 | PILOT | 35001- | |
| 16 | 01010-61230 | BOLT | 35001- | |
| 17 | 01643-31232 | WASHER | 35001- | |
| 154-13-41510 | TURBINE ASS'Y | 35001- | ||
| 18 | \6\ | TURBINE | 35001- | |
| 19 | \6\ | BOSS | 35001- | |
| 20 | \6\ | PLATE | 35001- | |
| 21 | \6\ | RIVET | 35001- | |
| 154-13-51660 | COUPLING ASS'Y | 35001- | ||
| 22 | \6\ | COUPLING | 35001- | |
| 23 | \6\ | COVER | 35001- | |
| 24 | \6\ | COVER | 35001- | |
| 25 | 154-13-51650 | SHAFT | 35001- | |
| 26 | 154-13-13360 | BEARING | 35001- | |
| 27 | 154-13-11730 | SPACER | 35001- | |
| 28 | 04064-06020 | RING,SNAP | 35001- | |
| 29 | 175-13-21720 | RING,SEAL | 35001- | |
| 30 | 175-13-21691 | HOLDER | 35001- | |
| 31 | 175-13-21711 | PLATE,LOCK (KIT) | 35001- | |
| 32 | 175-13-21810 | BOLT,REAMER | 35001- | |
| 33 | 154-13-42110 | STATOR | 35001- | |
| 34 | 154-13-42120 | RACE | 35001- | |
| 35 | 01010-61030 | BOLT | 35001- | |
| 36 | 01643-31032 | WASHER | 35001- | |
| 37 | 154-13-52520 | SHAFT | 35001- | |
| 38 | 04064-08025 | RING,SNAP | 35001- | |
| 39 | 154-13-42710 | RING,SEAL | 35001- | |
| 40 | 07000-65190 | O-RING (KIT) | 35001- | |
| 41 | 154-13-42720 | COVER | 35001- | |
| 42 | 07000-62130 | O-RING (KIT) | 35001- | |
| 195-13-05020 | SHIM ASS'Y (KIT) | 35001- | ||
| 43 | \6\ | SHIM¤ 0.05MM | 35001- | |
| 44 | \6\ | SHIM¤ 0.2MM | 35001- | |
| 45 | \6\ | SHIM¤ 0.1MM | 35001- | |
| 46 | 175-13-22760 | SEAL,OIL (KIT) | 35001- | |
| 47 | 01010-51240 | BOLT | 35001- | |
| 48 | 01602-21236 | WASHER,SPRING | 35001- |
