| Item | Part No. | Part Name | Qty | Serial No. |
| (15A-13-00010) | TORQUE CONVERTER A. | 10301- | ||

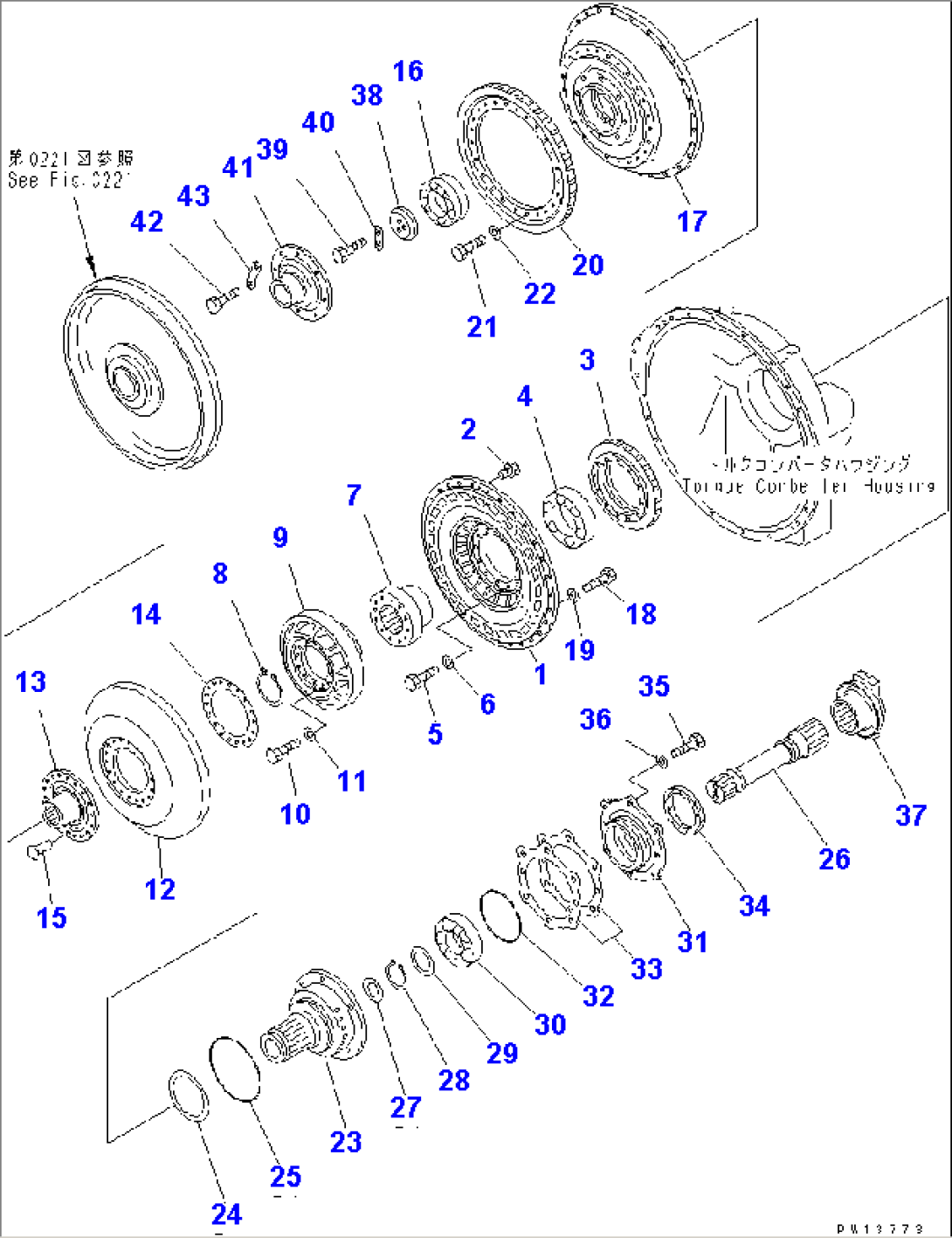

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2301 TO 2304. | ||||
| 1 | 15A-13-11121 | PUMP | 10301- | |
| 2 | 07040-11209 | PLUG | 10301- | |
| 3 | 195-13-11143 | GEAR | 10301- | |
| 4 | 175-13-21160 | BEARING,ROLLER | 10301- | |
| 5 | 01010-61045 | BOLT | 10301- | |
| 6 | 01643-31032 | WASHER | 10301- | |
| 7 | 175-13-22122 | RACE | 10301- | |
| 8 | 04064-08530 | RING,SNAP | 10301- | |
| 9 | 175-13-22312 | STATOR | 10301- | |
| 10 | 01010-61030 | BOLT | 10301- | |
| 11 | 01643-31032 | WASHER | 10301- | |
| 178-13-11510 | TURBINE ASS'Y | 10301- | ||
| 12 | \6\ | TURBINE | 10301- | |
| 13 | \6\ | BOSS | 10301- | |
| 14 | \6\ | PLATE | 10301- | |
| 15 | \6\ | RIVET | 10301- | |
| 16 | 175-13-21240 | BEARING,BALL | 10301- | |
| 17 | 175-13-21213 | CASE | 10301- | |
| 18 | 01010-61035 | BOLT | 10301- | |
| 19 | 01643-31032 | WASHER | 10301- | |
| 20 | 175-13-21220 | GEAR | 10301- | |
| 21 | 01010-61230 | BOLT | 10301- | |
| 22 | 01643-31232 | WASHER | 10301- | |
| 23 | 15A-13-12520 | SHAFT | 10301- | |
| 24 | 195-13-12711 | RING,SEAL | 10301- | |
| 25 | 07000-65190 | O-RING (K1) | 10301- | |
| 26 | 15A-13-11650 | SHAFT | 10301- | |
| 27 | 178-13-11720 | RING,SEAL | 10301- | |
| 28 | 04064-06525 | RING,SNAP | 10301- | |
| 29 | 175-13-21770 | SPACER | 10301- | |
| 30 | 175-13-53360 | BEARING,BALL | 10301- | |
| 31 | 15A-13-12720 | COVER | 10301- | |
| 32 | 07000-02140 | O-RING (K1) | 10301- | |
| 33 | 195-13-05020 | SHIM ASS'Y (K1) | 10301- | |
| 33 | \6\ | SHIM, 0.05MM | 10301- | |
| 33 | \6\ | SHIM, 0.2MM | 10301- | |
| 33 | \6\ | SHIM, 0.1MM | 10301- | |
| 34 | 07012-50100 | SEAL (K1) | 10301- | |
| 35 | 01010-51245 | BOLT | 10301- | |
| 36 | 01643-31232 | WASHER | 10301- | |
| 37 | 15A-13-11660 | COUPLING | 10301- | |
| 38 | 175-13-21692 | HOLDER | 10301- | |
| 39 | 195-13-11810 | BOLT | 10301- | |
| 40 | 175-13-21712 | PLATE,LOCK (K1) | 10301- | |
| 41 | 15A-13-11250 | PILOT | 10301- | |
| 42 | 01010-61230 | BOLT | 10301- | |
| 43 | 195-13-11261 | PLATE,LOCK (K1) | 10301- |
