| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||

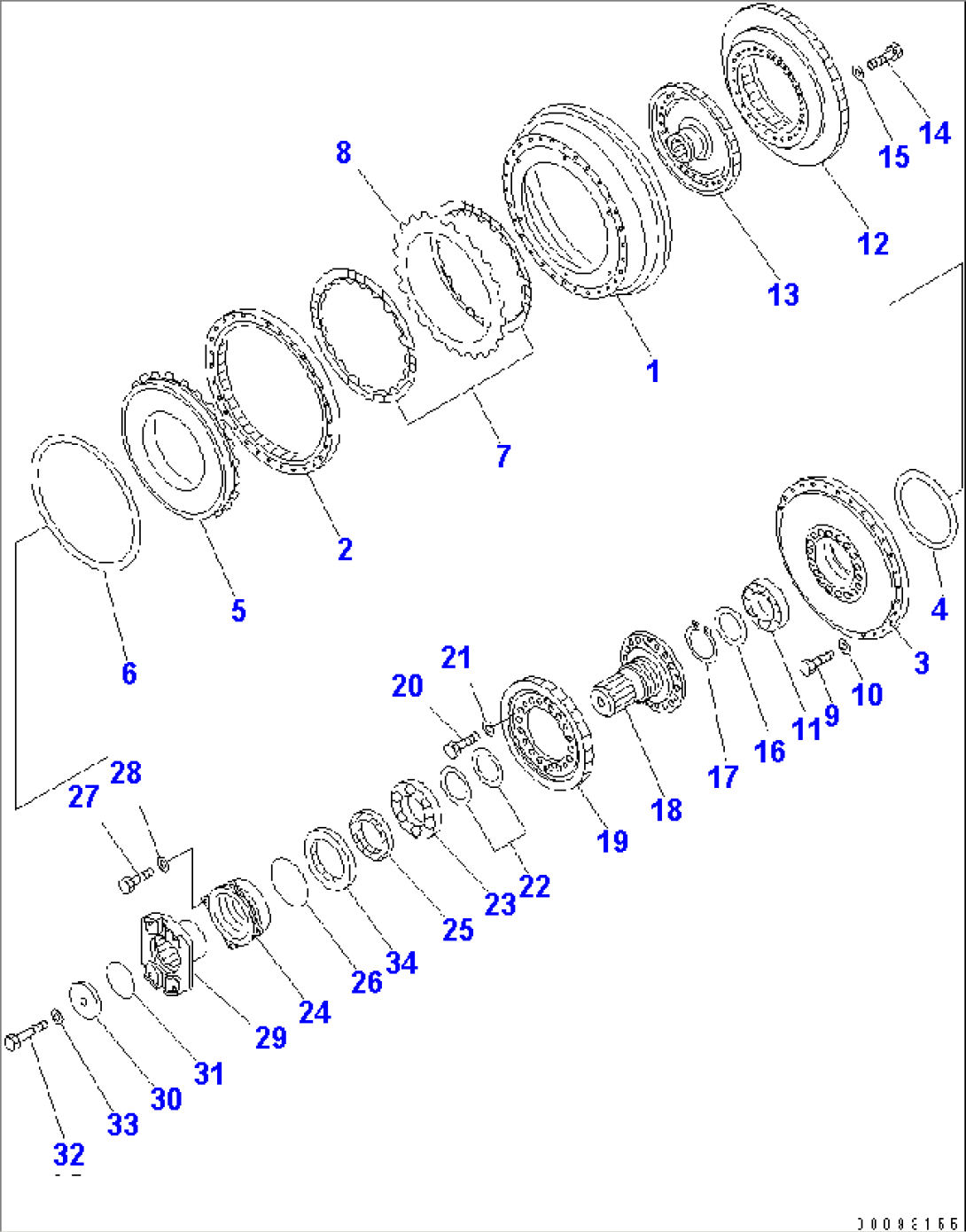

| (561-13-00110) | TORQUE CONVERTER A. | 1001- | ||
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2301 TO 2311. | ||||
| 1 | 711-28-41212 | CASE | (1212)- | |
| 1 | 711-28-41211 | CASE | 1001-(1211) | |
| 2 | 569-13-17171 | GEAR | 1001-(1211) | |
| 3 | 711-28-47120 | HOUSING | 1001- | |
| 4 | 281-13-17150 | RING,SEAL | 1001- | |
| 5 | 711-28-47211 | PISTON | 1001- | |
| 6 | 281-13-17250 | RING,SEAL | 1001- | |
| 7 | 195-15-32710 | DISC | 1001- | |
| 8 | 281-15-12720 | PLATE | 1001- | |
| 9 | 01010-81245 | BOLT | (1212)- | |
| 9 | 01010-81255 | BOLT | 1001-(1211) | |
| 10 | 01643-31232 | WASHER | 1001- | |
| 11 | 711-20-11550 | BEARING | 1001- | |
| 12 | 561-13-41520 | TURBINE | 1001- | |
| 13 | 711-28-41532 | BOSS | 1001- | |
| 14 | 01010-81230 | BOLT | 1001- | |
| 15 | 01643-31232 | WASHER | 1001- | |
| 16 | 568-13-11770 | PLATE | 1001- | |
| 17 | 04064-08530 | RING,SNAP | 1001- | |
| 18 | 711-28-41351 | SHAFT | 1001- | |
| 19 | 711-28-41341 | GEAR | 1001- | |
| 20 | 01010-61655 | BOLT | 1001- | |
| 21 | 01643-31645 | WASHER | 1001- | |
| 22 | 07018-21104 | RING,SEAL | 1001- | |
| 23 | 281-13-31180 | BEARING | (102284)- | |
| 23 | 06032-00218 | BEARING | 1001-(102283) | |
| 24 | 711-28-49370 | RETAINER | (1612)- | |
| 24 | 711-28-43370 | RETAINER | 1001-(1611) | |
| 25 | 07012-50110 | SEAL,OIL (K1) | (1870)- | |
| 25 | 07012-10110 | SEAL,OIL (K1) | 1001-(1869) | |
| 26 | 07000-75150 | O-RING (K1) | 1001- | |
| 27 | 01010-81025 | BOLT | 1001- | |
| 28 | 01643-31032 | WASHER | 1001- | |
| 29 | 711-28-49860 | COUPLING | (1612)- | |
| 29 | 711-28-41360 | FLANGE | 1001-(1611) | |
| 30 | 711-28-31370 | HOLDER | 1001- | |
| 31 | 07000-75075 | O-RING (K1) | 1001- | |
| 32 | 01050-62090 | BOLT | 1001- | |
| 33 | 01643-32060 | WASHER | 1001- | |
| 34 | 711-28-49710 | SEAL,DUST (K1) | (1612)- |
