| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| (566-13-42030) | TORQUE CONVERTER A. | 6001- | ||
| (566-13-41031) | TORQUE CONVERTER A. | 5706-6000 | ||
| (566-13-01150) | TORQUE CONVERTER A. | 5001-5705 | ||

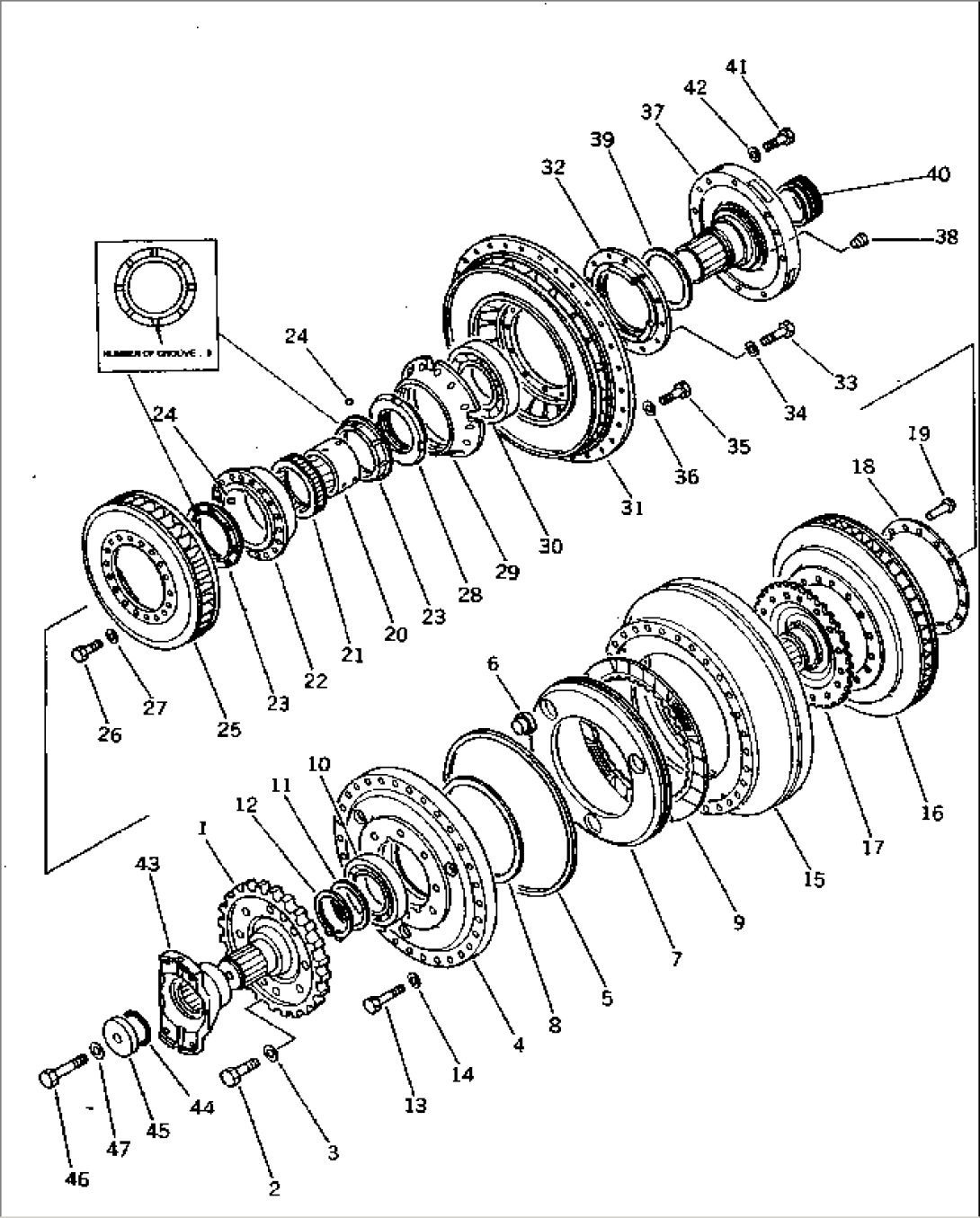

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2235 TO 2245. | ||||
| 1 | 711-20-31350 | SHAFT | 5001- | |
| 2 | 01010-61640 | BOLT | 5001- | |
| 3 | 01643-31645 | WASHER | 5001- | |
| 4 | 711-20-37121 | HOUSING | 5001- | |
| 5 | 566-13-17250 | RING,SEAL | 5001- | |
| 6 | 287-13-17131 | PIN | 5001- | |
| 7 | 711-20-37213 | PISTON | 5001- | |
| 8 | 145-14-12750 | RING,SEAL | 5001- | |
| 9 | 195-15-32710 | DISC | 5001- | |
| 10 | 711-20-11550 | BEARING | 5001- | |
| 11 | 568-13-11770 | PLATE | 5001- | |
| 12 | 04064-08530 | RING | 5001- | |
| 13 | 01010-81235 | BOLT | 5001- | |
| 14 | 01643-31232 | WASHER | 5001- | |
| 15 | 711-20-31213 | CASE | 5001- | |
| 711-40-21510 | TURBINE ASS'Y | 5001- | ||
| 16 | \6\ | TURBINE | 5001- | |
| 17 | \6\ | BOSS | 5001- | |
| 18 | \6\ | PLATE | 5001- | |
| 19 | \6\ | RIVET | 5001- | |
| 20 | 711-20-32130 | RACE,INNER | 5001- | |
| 21 | 711-20-12160 | WHEEL,FREE | 5001- | |
| 22 | 711-20-32120 | RACE,OUTER | 5001- | |
| 23 | 711-20-12141 | BUSHING | 5001- | |
| 24 | 04260-00635 | BALL | 5001- | |
| 25 | 711-20-32110 | STATOR | 5001- | |
| 26 | 01010-81025 | BOLT | 5001- | |
| 27 | 01643-31032 | WASHER | 5001- | |
| 28 | 711-40-12680 | NUT | 5001- | |
| 29 | 711-20-31190 | GUIDE | 5001- | |
| 30 | 568-13-13351 | BEARING | (5354)- | |
| \1\568-13-13350 | BEARING | 5001-(5353) | ||
| 31 | 711-20-31120 | PUMP | 5001- | |
| 32 | 711-20-31140 | RETAINER | 5001- | |
| 33 | 01010-81040 | BOLT | 5001- | |
| 34 | 01643-31032 | WASHER | 5001- | |
| 35 | 01010-81030 | BOLT | 5001- | |
| 36 | 01643-31032 | WASHER | 5001- | |
| 37 | 711-20-32520 | SHAFT | 5001- | |
| 38 | 07043-00108 | PLUG | 5001- | |
| 39 | 07018-31355 | RING,RING (K1) | 5001- | |
| 40 | 711-20-32530 | SLEEVE | 5001- | |
| 41 | 01010-81235 | BOLT | 5001- | |
| 42 | 01643-31232 | WASHER | 5001- | |
| 43 | 56B-13-19860 | COUPLING ASS'Y | (5434)- | |
| 711-20-31360 | COUPLING | 5001-(5433) | ||
| 44 | 07000-75060 | O-RING (K1) | 5001- | |
| 45 | 711-20-31370 | HOLDER | 5001- | |
| 46 | 01010-61675 | BOLT | 5001- | |
| 47 | 01643-31645 | WASHER | 5001- |
