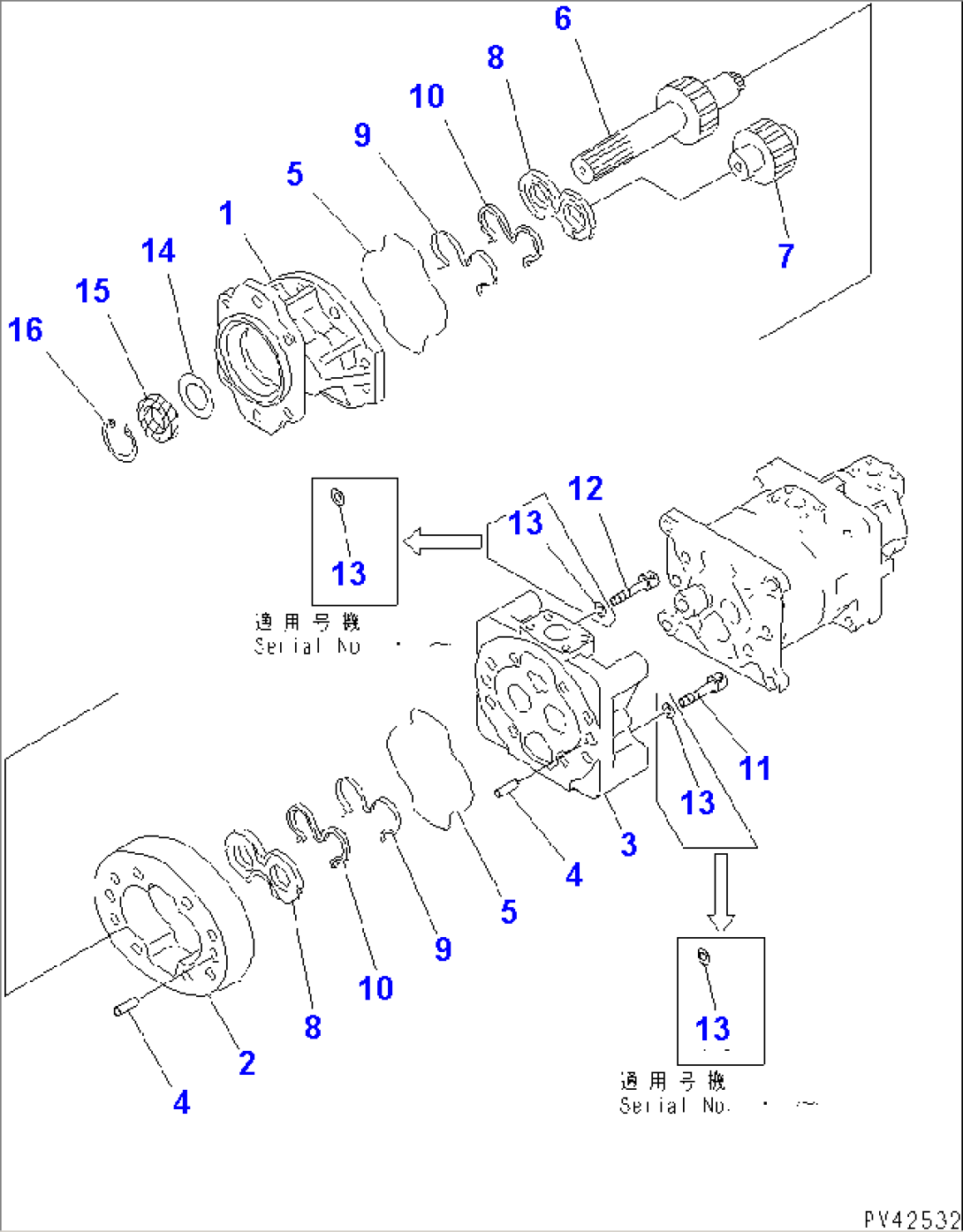

TORQUE CONVERTER AND P.O.C. PUMP (1/3)

Item	Part No.	Part Name	Qty	Serial No.
	705-58-43010	PUMP ASS'Y,(SAR4-112+3-100+1-32)		10001-
		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6045 TO 6047.
	705-32-41210	PUMP ASS'Y,(SAR112)		10001-
1	(\7\705-17-04021)	BRACKET		.-
1	(\7\705-17-04352)	BUSHING,PLANE		10001-
2	(\7\705-18-41010)	CASE,GEAR		10001-
3	(\7\705-19-04240)	CARRIER		10001-
3	(\7\705-17-04352)	BUSHING,PLANE		10001-
4	04020-01842	PIN,DOWEL		10001-
5	705-17-04381	O-RING		10001-
6	(\7\705-29-41430)	GEAR,DRIVE		10001-
7	(\7\705-18-41510)	GEAR,DRIVEN		10001-
8	705-17-04611	PLATE,SIDE		10001-
9	705-17-04440	RING,BACK-UP		10001-
10	705-17-04470	RING,SEAL		10001-
11	705-17-04640	BOLT		10001-
12	705-17-04720	BOLT		10001-
13	705-17-04980	WASHER		.-
13	\0\01602-21442	WASHER,SPRING		10001-.
14	705-17-04870	PLATE		10001-
15	704-17-05810	SEAL,OIL		10001-
16	04065-06220	RING,SNAP		10001-
