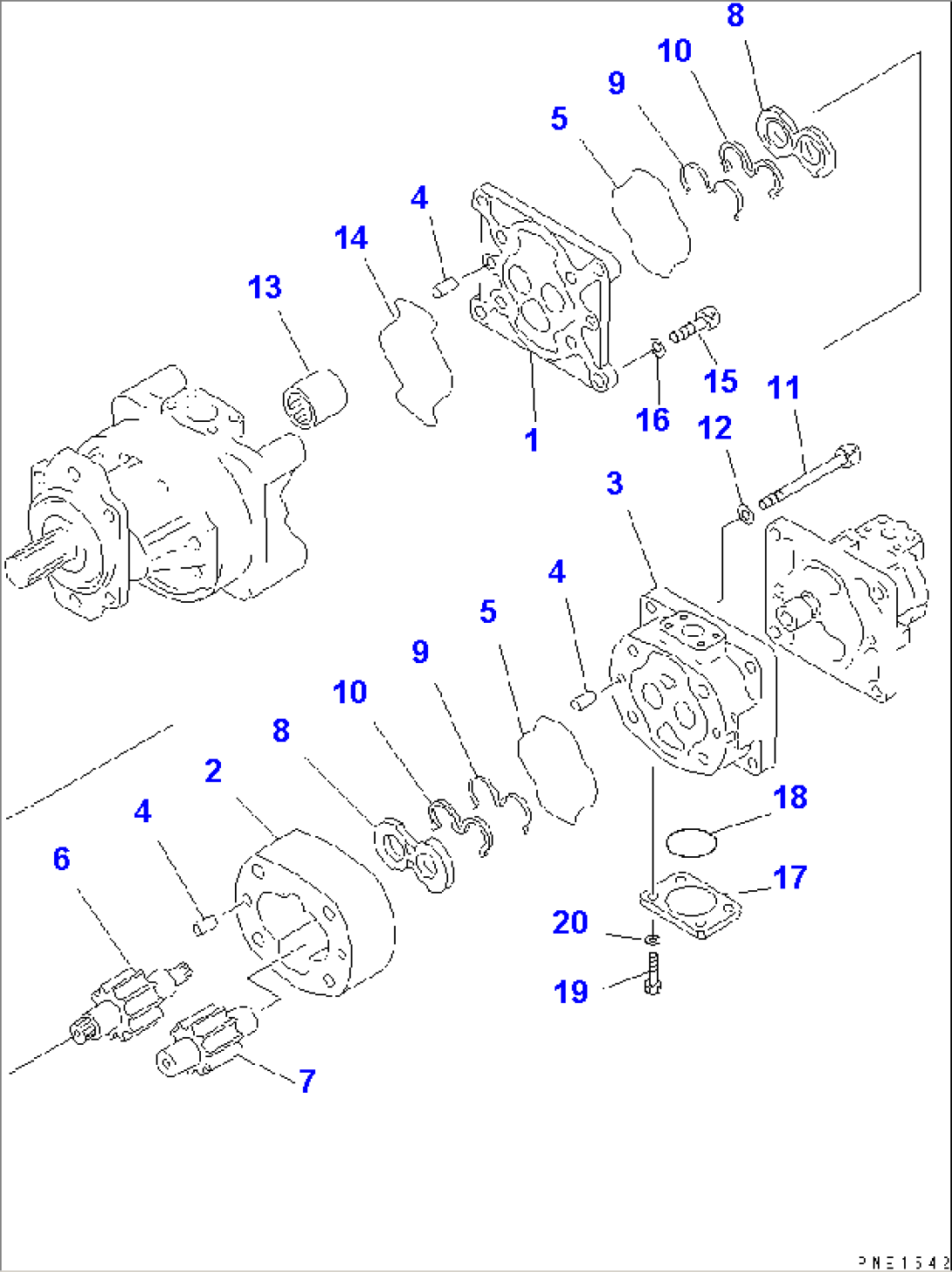

| Item | Part No. | Part Name | Qty | Serial No. |
| 705-58-43010 | PUMP ASS'Y,(SAR4-112+3-100+1-32) | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6045 TO 6047. | ||||
| 705-32-40330 | PUMP ASS'Y,(SAR100) | 10001- | ||
| 1 | (\7\705-19-03521) | BRACKET | 10001- | |
| 1 | (\7\705-17-03352) | BEARING | 10001- | |
| 2 | (\7\705-17-40010) | CASE,GEAR | 10001- | |
| 3 | (\7\705-17-03220) | CARRIER ASS'Y | 10001- | |
| 3 | (\7\705-17-03352) | BEARING | 10001- | |
| 4 | 04020-01228 | PIN,DOWEL | 10001- | |
| 5 | 705-17-03380 | O-RING | 10001- | |
| 6 | (\7\705-19-40460) | GEAR,DRIVE | 10001- | |
| 7 | (\7\705-17-40510) | GEAR,DRIVEN | 10001- | |
| 8 | 705-17-03610 | PLATE,SIDE | 10001- | |
| 9 | 705-17-03440 | RING,BACK-UP | 10001- | |
| 10 | 705-17-03470 | SEAL | 10001- | |
| 11 | 705-17-03770 | BOLT | 10001- | |
| 12 | 01643-51645 | WASHER | 10001- | |
| 13 | 705-17-03330 | COUPLING | 10001- | |
| 14 | 705-19-03480 | O-RING | 10001- | |
| 15 | 705-19-03470 | BOLT | 10001- | |
| 16 | 705-17-04980 | WASHER | 10001- | |
| 17 | 705-17-03880 | PLATE | 10001- | |
| 18 | 07000-02055 | O-RING | 10001- | |
| 19 | 01010-51230 | BOLT | 10001- | |
| 20 | 01643-51232 | WASHER | 10001- |
