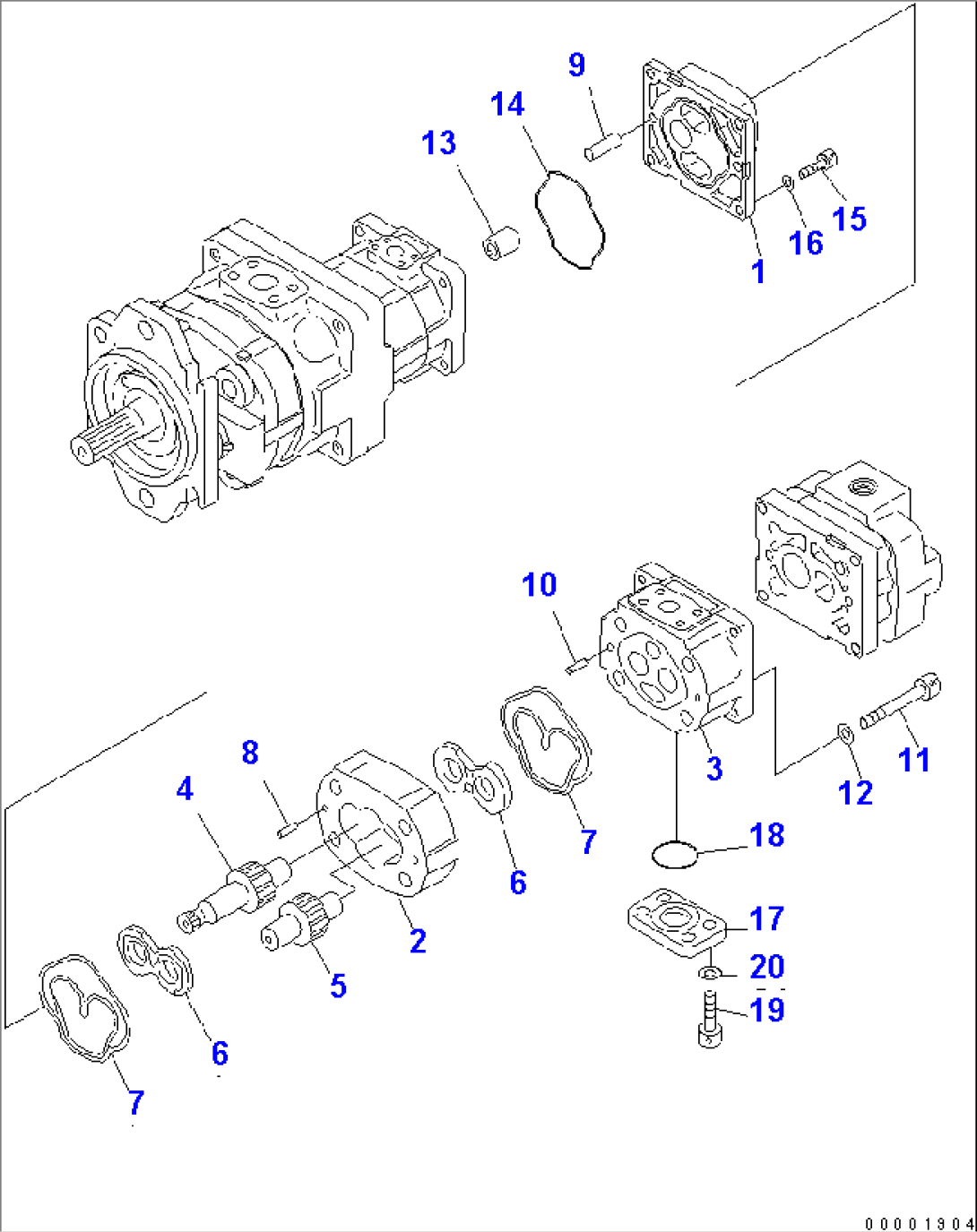

| Item | Part No. | Part Name | Qty | Serial No. |
| (705-56-36040) | PUMP ASS'Y,(SAR56+40+SBR10+12) | 70001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-31A0 TO Y1610-34A0. | ||||
| 705-41-04400 | PUMP ASS'Y,(SBR10) | 70001- | ||
| 1 | (\7\705-41-83010) | BRACKET | 70001- | |
| (\7\705-40-80610) | BUSHING,PLANE | 70001- | ||
| (\7\705-40-80620) | BUSHING,PLANE | 70001- | ||
| 2 | (\7\705-40-22011) | CASE,GEAR | 70001- | |
| 3 | (\7\705-40-80311) | CARRIER | 70001- | |
| (\7\705-40-80610) | BUSHING,PLANE | 70001- | ||
| (\7\705-40-80620) | BUSHING,PLANE | 70001- | ||
| 4 | (\7\705-40-22540) | GEAR,DRIVE | 70001- | |
| 5 | (\7\705-40-22511) | GEAR,DRIVEN | 70001- | |
| 6 | (\7\705-40-83720) | PLATE,SIDE | 70001- | |
| 7 | (\7\705-40-80770) | SEAL,OIL | 70001- | |
| 8 | (\7\04020-00820) | PIN,DOWEL | 70001- | |
| 9 | (\7\04020-01024) | PIN,DOWEL | 70001- | |
| 10 | (\7\705-67-01230) | PIN,DOWEL | 70001- | |
| 11 | (\7\01252-61270) | BOLT | 70001- | |
| 12 | (\7\01643-51232) | WASHER | 70001- | |
| 13 | 705-67-01330 | COUPLING ASS'Y | 70001- | |
| 14 | 705-17-02360 | O-RING | 70001- | |
| 15 | 01252-61035 | BOLT | 70001- | |
| 16 | 01643-51032 | WASHER | 70001- | |
| 17 | 705-40-80941 | PLATE | 70001- | |
| 18 | 07000-E2021 | O-RING | 70001- | |
| 19 | 01252-70825 | BOLT | 70001- | |
| 20 | 01643-50823 | WASHER | 70001- |
